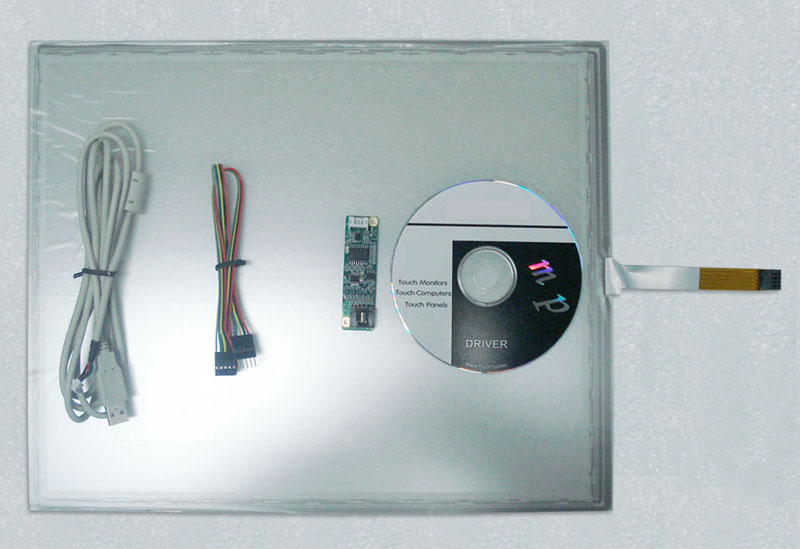

17" Touch Panel - Transform your LCD to Touch Screen Warranty : 1 year manufacturing warranty provided
1. Suitability
This specification suit analog resistance touch panel. 2. Apply To Specification 2.1.Surface Hardness¡G 3H 2.2. Optical Clarity¡G 80 %↑ 2.3 Operating Temperature ¡G -10„aC ~ 60„aC 2.4 Endurance Test strikes ¡G Over 10 million 2.5 Operating Voltage¡G DC5V 2.6 Resistance¡G 30ƒÇ~ 300ƒÇ 2.7 Linearityƒ¬1.5% 2.8 Faceplate Surface ¡G Anti-glare coating 2.9 Operation Pressure ¡G 15 ~ 70g 2.10 Storage Temperature¡G ƒ{20„aC ~ 70„aC 2.11 Message Noise¡G 5 m sec ~ 15 m sec 2.12 Operating Current¡G 5mA ~ 25mA 2.13 Isolation Resistance¡G 20MƒÇ↑ ¢I DC25V
Optical Performance
Light transparency should keep above 80%↑ under the visible wave when the wave length is 550nm 5. Electrical Performance 5.1 Connector Resistance 30Ω < X Axis <300Ω 30Ω < YAxis <300Ω 5.2 Insulation Resistance 20MΩ ↑ @ DC 25V 5.3 Electrostatic Endurance No abnormal appearance after 10kv, 100ƒÇ,250PF electrostatic used. 5.4 Linearity X Axis¡G 1.5% ↓ Y Axis¡G 1.5% ↓ 5.5 Operating Voltage 3V ~ 12V DC 5.6 Operating Current 5mA ~ 25mA
Last Updated @ 8/7/2010 5:27:20 PM   |
