18650 NiMH battery Nickel-cadmium battery capacity tester


18650 NiMH battery Nickel-cadmium battery capacity tester


About Power:

        Original fanless heatsink maximum power is 10W. In addition to a 12V battery, can be selected discharge current of 1.5A. Upon examination,  temperature 20 degrees, do not install the fan 5V 1A, 3.7V 1.5A power 10 minutes after spreading the heat temperature rise to 70-80 degrees, so high heat hot temperature has spread, and bear away though electronic devices above this temperature (up to 150 degrees), but taking into account the safety of people, we do not recommend that you use a power greater than 10W. Canadian fans after the temperature dropped to about 45 degrees.

       Tested fan version can stabilize the discharge power doubled to 5V 1.5A, 12V 1A current, sprinkle hot temperature between 50-60 degrees, the heat does not spread hot. To test the 5V over a large capacity battery is recommended that you shoot fan version, so you can speed up the discharge rate relatively safe.

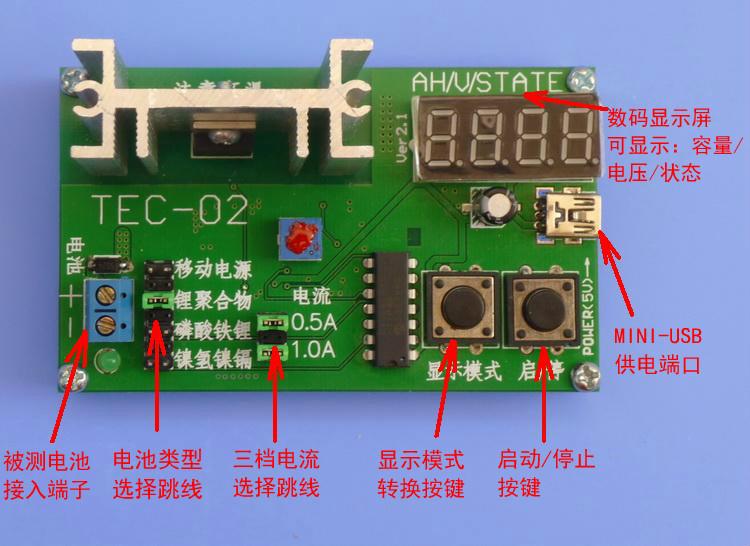

Description: TEC-02 battery capacity meter has five characteristics:

1 third gear current choice: 0.5A 1.0A 1.5A. Detection process can be arbitrarily switched.

2 displays the measured battery voltage (0-15V) , the battery capacity (the capacity can be measured 0 - 60000MAH) and work status.

3 Five battery options:

NiMH 1.2V nickel-cadmium batteries

Lithium iron phosphate battery 3.2V

Lithium-polymer battery (3.7V lithium battery, including 18650)

Mobile Power 5V

Customized according to user requirements battery (the default is 12V lead batteries)

4.MINI USB port (5V voltage) power supply, extra charger can power it.



        原配无风扇散热器 的最大功率是10W。除了12V的电池,均可选择1.5A的放电电流。经检验, 室温20度,不安装风扇5V 1A,3.7V 1.5A开机10分钟后撒热器温度会上升到70-80度,这么高的温度已经撒热器烫手了,虽然电子器件的承受远高于此温度(最高150度),但考虑到人的安全性,我们不建议您使用高于10W的功率。加风扇后温度会降到45度左右 。

       经测试风扇版放电功率倍增可以稳定上到5V 1.5A ,12V 1A 电流,撒热器温度在50-60度之间,撒热器不会烫手。要测试5V以上大容量电池建议大家拍风扇版,这样比较安全可以加快放电速度。


1 .三档电流选择:0.5A.0A.5A。检测过程中可任意切换。





锂聚合物电池 (3.7V锂电,包括18650)



4.MINI USB口(5V电压)供电,您手中多余的充电器便可为其供电。
