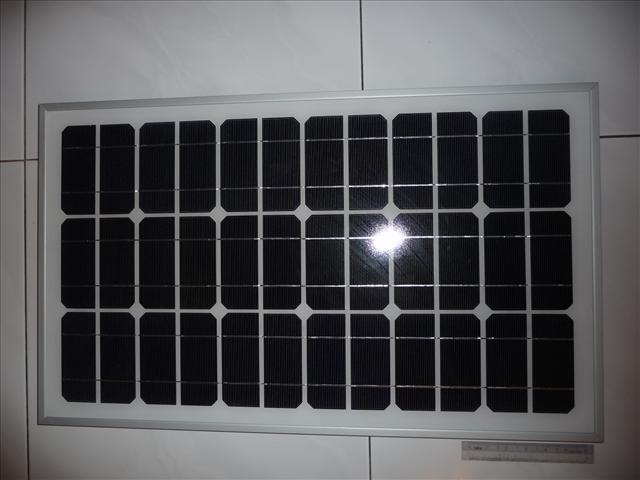

40W Solar Panel Module

Feature available to Store Members

A. High Efficiency:above 16%
B. Long validity:25years
C. Certification:CE, ISO,TUV,UL
D. Supply OEM service

1. high quality guarantee using (specification ) high conversion efficiency crystalline silicon solar cells

2. high performance bypass diodes minimize the power drop caused by shade.

3. high transmittance, low iron tempered glass; high performance EVA; a weatherproof back sheet and sandblast electrophoresis aluminum frame extend the application of modules greatly

4. sealed, waterproof, multi-functional junction box gives high level of safety.

5.the solar panel manufactures advanced material and craft , ensure that high converting efficiency and a long time service of 25 years

6.bypass diodes to advoid hot-spot effect, cells embeded in a sheet of TPT and EVA.

7.3.2mm toughened glass unique esthetic appearance of cells

8.anodized aluminium frames with convenient mounting access for the high wind-pressure and snow load

9.a waterproof versatile junction box ensure the safe connection .

10.the appearance and capacity of every module are tested to gurantee the high quality

11.Bypass diodes to avoid hot-spot effect, Cells are embeded in a sheet of TPT and EVA;

12.Attractive,stable heavy duty anodized aluminum frames with easy disassembly,for high wind-pressure and snow-load;

13.The backside frames are equipped wth drainage holes,so we eliminate the risk that rain or snow water may accumulate in the frame lumen and freeze or even bend the frame in cold season;

14.Pressemble fast connected systems, Customer-desired packing;

15. 90% power for 10years, 80% power for 25 years

Parameter:

Cell Type: monocrystalline
Maximum Power(Pm): 40w
Maximum Power Voltage(Vpm): 18V
Maximum Power current(IPM): 2.21A
Open Cirucuit Voltage(Voc) 21.3V
Short Circuit Voltage(lsc) 2.35A
Size of Module 745x445x35mm

Warranty:

1 year
