The
first hybrid between Phone and
Tablet

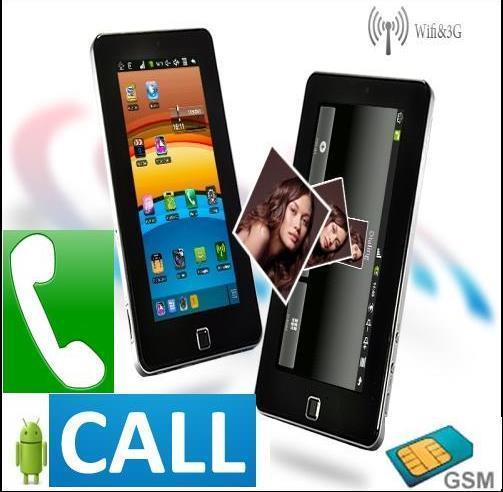

The
Tabulus brings a lot of convenience
and originality by merging a phone
with a tablet. Now, there's no need
for 2 devices anymore to make and
receive calls, as the Tabulus can do
everything directly: Write and read
SMS, browse the internet using WiFi,
watch videos on the 7 inch screen,
read eBooks, send emails, play your
favorite games, EVERYTHING.
Powerful MID
Powered by the ingenious Android 2.2
operating system, the Tabulus
provides true multi-tasking,
widgets, and many more features that
can't be found anywhere else. It
also comes packed with convenient
applications such as email, YouTube,
Skype, etc.
Offered at a breathless low price
With a
powerful VIA WM8650 (800MHz, dual
core) processor and 512MB of RAM,
the Tabulus Android Tablet will
easily keep up with your every
action and command. Programs load as
fast as lightning, games play with
fluidity, and you can feel you have
a top-of-the-line gadget in your
hands. For sure, this affordable
Android Tablet is the best bang for
your buck today and brought to you
at a factory-direct price that can't
be matched. How do we do this? By
cutting out the middle man and
selling to you factory-direct with
no markup and no extra fees!
ADD RM25 TO GET 4GB HIGH SPEED MICRO
SD CARD
ADD RM40 TO GET KEYBOARD WITH
LEATHER CASE (NORMAL PRICE RM60)
Hot
spots:
Android 2.2 Tablet Phone
Quad-band GSM for phone calling
7 inch
touchscreen
800MHz
processor, 512MB RAM
WiFi
4GB
internal memory
Ultra-thin form factor
Front
facing camera
Pre-loaded with YouTube, Skype, and
many more apps
Built-in MIC and speaker
Download tons of third-party apps
and games from app market or other
3th party apps source!
Specifications
General
Operating System: Android 2.2
Model:
VIA WM8650, 800MHz (maximum clock:
800MHz)
Product Type: Android Tablet Phone
Keyboard: On screen keyboard
Pointing Device: TFT Resistive Touch
Screen
Camera: 1.3 MP
Battery Type: 4200mAh 2-Cell Lithium
Battery / Run Time (up to): 3-6
hours working time (depends on
actual using)
Power
Device Type: AC adapter
Voltage required: 100V - 240V
Miscellaneous / Color: Black
Languages: English, French, Spanish,
Italian, German, Dutch, Portuguese,
Greek, Russian, Turkish, Polish,
Danish, Swedish, Norwegian, Czech,
Chinese, Japanese, Korean, Farsi,
Arabic, Thai
Dimensions / W x D x H: 19.5 × 12.6
× 1.2 (cm)
Storage and Expansion
Hard
Drive Type: FLASH
Hard
Drive Capacity: 4GB
External Memory: Micro SD Card (up
to 32GB) - Not included
Input/Output Connectors
Ports
- USB
2.0 x1
-
Micro USB x1
-
Headphone x1
- SIM
card slot x1
- DC
jack x1
- TF
card reader x1
Audio/Video
-
2.5mm headphone jack
-
High-quality stereo loud speaker x2
-
Built-in microphone
Communications
Wireless Connection: WiFi, USB 3G
Wireless Protocol: WiFi 802.11b/g
Phone
Network: Quad-band GSM
(850/900/1800/1900)
Support Format
Video:
MP3, WMA, WAV, APE, OGG, FLAC, AAC
Audio:
AVI, 3GP/MP4, MPG, RM/RMVB, MKV,
MOV, FLV, WMV
Picture: JPG, JPEG, BMP, PNG
Ebook:
PDF, TXT etc.
Performance
Processor Type: VIA WM8650
Processor Clock Speed: 800MHz
(maximum clock 800MHz)
RAM
Installed Size: 512MB
Display Diagonal Size: 7 Inch
Max
Resolution: 800*600
Display Technology: TFT Resistive
Touch Screen
Product Notes
Download your favorite apps through
App market or other 3th party apps
source!
2G SIM
card is for calls only. Please turn
OFF the tablet before inserting any
SIM card otherwise the device might
not recognize it.
Browse
the internet for free with WiFi.
This
tablet supports 3G internet with a
2.0 USB dongle. (part of compatible
list: HUAWEI E220, E230, E770,
E169G, E160X, E1750
General
Operating System:
Google android 2.2 Froyo
Model:
VIA 8650 E10
Announced:
20110702
Product Type:
Tablet PC pHONE
Keyboard:
Touch Screen
Display Technology:
Resistive touch screen
Screen
Size:
7 inch
Max
Resolution:
800*480
CPU
Type:
VIA
CPU
Manufacturer:
VIA
CPU
Model:
8650
CPU
Speed:
800MHZ
RAM /
Technology:
DDR2
RAM
Installed Size:
512MB
Hard
Drive Type:
NAND FAST FLASH
Hard
Drive Capacity:
4GB
PCMCIA
Expansion:
T-FLASH(Support 32G MAX)
Camera:
1.3MP
HDMI:
NO
3G:
YES
G-Sensor:
Four way
Audio:
Built in stereo
speakers/Built in Microphone
Software:
Youtube/Facebook/Twitter/MSN/Skype/Calculator/Google
Mail/Google maps/iReader/Quick
Office
Language:
Multi-language support
Battery Type:
Li-4200mAh
Battery / Run Time(up to):
wifi on about 2hours
Power
Device Type:
AC Adapter
Voltage required:
100/240V
Color:
Black
Dimensions / W*D*H:
206*117*17mm
Net
Weight:
0.35
Input/Output Connectors
Ports:
1 x Mini USB
1 x
USB 2.0
1 x
Micro Sd Card slot
1 x DC
jack
1 x
Earphone jack
1 x
SIM card slot
Communications
Networking / Data Link Protocol:
Fast Ethernet
Wireless Connection:
WIFI
Wireless Protocol:
802.11 b/g
Support Format
Video:
AVI/RM/RMVB/MKV/WMV/MOV/MP4/DAT(VCD
format)/VOB(DVD
format)/PMP/MPEG/MPG/FLV/ASF/TS/TP/3GP/MPG
Audio:
FLAC/APE/WAV
Picture:
JPG/BMP/PNG/GIF
Ebook:
WORD/EXCEL/PPT/PDF/TXT/CHM/HTML
1, to
insert dial phone card, be sure to
confirm is turned off, otherwise
there would be damage to the
machine.
2, the
sim card, please look at mount next
to the logo, this logo on the card
and the first, and then the chip
down, lying flat inside insert. don
insert the other way else it will
hard to take out
Manufacturers of professional and
technical staff to explain the
reasons leading to the body of local
heat
1
First, as a computer, it works when
the heat more, and the computer
itself is very thin body, leading to
excess heat can not be distributed
in time, but this is a normal
phenomenon, even in this notebook,
it works when there will be a lot of
heat comes out the bottom or even
hot, but the books are on the table,
while the computer is in the hand
models, pro models for the
computer's heat sensitive.
(2)
Then there are computers in the
design of this subsection, the shell
using a good thermal conductivity of
plastic, will help distribute the
heat inside the computer, computer
case is not hot but not normal, but
the heat itself does not cause
damage to the fuselage. Therefore,
the majority of parents who can rest
assured that use.
In
addition, the friends must pay
attention to Oh! Phone card is
inserted before, we must first shut
down, insert the card after the
re-boot, you can call it! Otherwise,
it will affect the computer oh
1, the
plug, dial phone card, be sure to
confirm is turned off, otherwise
there would be damage to the
machine.
2, the
time card, please look at mount next
to the logo, this logo on the card
and the first, and then the chip
down, lying flat insert inside
1 on
how to access.
WIFI
wireless Internet access: the
principle of common wireless-enabled
laptops with the same principle
there can be hot spots where the
Internet can now search for the
general public places a lot of
wireless signals, but generally the
signal can require a password plus
password online, but many public
places in many places offer free
Internet signals (eg many university
campuses, during the Asian Games in
Guangzhou will offer free Internet
signal, oh), but most of the signals
are encrypted, so do not be silly it
is naive to think that there is a
computer wanted to anytime, anywhere
access, and the world can not so
much as a free lunch, so the general
home WIFI Wireless Internet access
with wireless router.
Here's
how to connect this machine WIFI
wireless Internet access:
Desktop into the "connect to a
wireless Internet", check "WI-FI",
appears below the search to the
network, select your own password to
connect the signal input. Note: Use
the cat to choose the wireless
connection ADSL dial-up mode.
(Network connection is not the
reason: because the router WPA and
WPA2 keys to set the encryption key
password solution: remove the WPA
and WPA2 keys of the secret key)
Tip:
ETH appears at the top connect to
the network logo, such as the white
arrow indicates a successful
connection, such as the arrow is
gray not obtain an IP address, the
connection is unsuccessful.
Tip:
ETH appears at the top connect to
the network logo, such as the white
arrow indicates a successful
connection, such as the arrow is
gray not obtain an IP address, the
connection is unsuccessful.
2.3G
Internet:
3G 3G
Internet access to be specified in
an external setting, the specific
setting methods to obtain the
customer.
Operation Guide
Charging method
1,
when the first use of the Tablet PC
when plugged in before boot, charge
for 30 minutes after boot (hold to
charge). State of charge is slower
because of the boot, when the
battery runs down while charging
power may result in automatic shut
down system.
2 Plug
the power adapter, battery charge
indicator turns red, indicating
charging. When the battery is fully
charged, the indicator light shows
green. Unplug the power adapter, the
light is always green.
3, the
charging period, the user can use
the Tablet PC.
Note:
The power state will be relatively
long charging time. prefix = o ns =
"urn: schemas-microsoft-com: office:
office"
Memory
card
Insert
a memory card:
Insert
a memory card slot, use your fingers
to press the card in, until you hear
a "click" is heard. Screen will
prompt the upper left corner: SD
card is being prepared.
File
on your memory card:
Run
the "file browser" program to show
all files under the root directory,
select "SD card" card to open it you
can browse the contents.
Remove
the memory card:
Close
all open files from the card; enter
the menu button → Settings → SD card
and equipment storage, click Remove
the SD card, the system will prompt
"SD card is safe to remove"; light
press card, the card will pop up a
length, remove it; upper left corner
of the screen will prompt "removed
the SD card"??
Note:
1, the
card is inserted to the correct
position, otherwise it will damage
the card;
2, Do
not "remove the SD card" before
forcibly remove the memory card may
damage the card;
3, if
the card is write-protected, will
not be formatted and written data,
please remove the write protection
and then to make such operations;
4, the
proposed use of the major brands of
memory cards, to avoid the card is
not compatible.
Device
has three storage space: an internal
storage device, U disk and memory
card. Stored inside the device
display folder named "LocalDisk";
memory card display folder named "sdcard";
external U disk display folder named
"udisk". LocalDisk users within the
available space is approximately 1GB
(Byte), U disk and memory card
depends on the specific capacity of
the maximum support of 32GB (Byte)
memory card. (Operating system and
software will occupy a hidden 1GB
memory, for safety reasons, can not
be used the file browser to access
this partition!)
Off
1,
Power: When the battery is fully
charged, it can directly press the
power button to boot.
2,
off: press the power button (2
seconds), the system will pop up
equipment selection dialog box,
select shutdown, the system will
then pop off the confirmation dialog
box, select OK to shut down.
3
Sleep: press the power button (2
seconds), the system will pop up
equipment selection dialog box,
select sleep, the system will enter
the sleep state. Then press the
power button to boot.
If
low-power sleep mode, the device
will automatically boot to
energy-saving shutdown.
4,
flight mode: press the power button
(2 seconds), the system will pop up
equipment selection dialog box,
select the flight mode, the system
will enter flight mode status. In
flight mode, all wireless devices
off.
Vibration function
Open
the shock: the status bar click the
volume icon to adjust the volume to
zero after the vibration function is
turned on.
Close
vibration: vibration reduction
function under the volume icon and
then click Mute the volume increases
or click the icon to the volume is
greater than zero, shake off.
External network cable and U-disk
To
connect Ethernet devices or U-disk,
you need to connect a switch box.
Transfer box: the interface adapter
box to connect the devices on the
USB switch interface. Adapter box
has two USB ports and an Ethernet
interface. After the device can be
connected to an external cable or
U-disk.
External cable: adapter box
connected to the device, the network
cable into the Ethernet interface,
as shown on the left. Cable
connected, you can automatically
obtain an IP address to connect the
network, you can also choose to
manually set the IP to get
connected.
External U disk: switch box
connected to the device, the U disk
into the USB port as shown on the
left. U disk device can be connected
to the U disk, memory card device
and copy files between each other
jiafei's items • View all by jiafei • View related items • Promote your items..
PM
(
