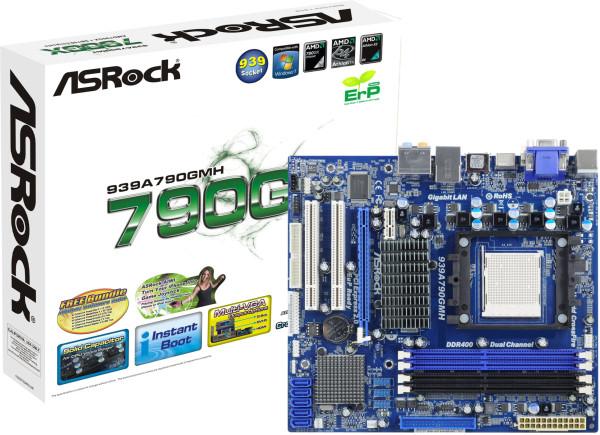

939A790GMH
|
 |Translate
-
Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors
-
Solid Capacitor for CPU power
-
Supports Dual Channel DDR 400
-
Integrated AMD Radeon HD 3300 graphics, DX10 class iGPU, Pixel Shader 4.0
-
Supports ATI™ Hybrid CrossFireX™
-
Multi VGA Output options: D-Sub, DVI-D and HDMI
-
PCIE Gigabit LAN
-
Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES, OC DNA, AIWI, APP Charger
-
ErP/EuP Ready
-
Free Software : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
|
Features
ASRock AIWI
ASRock AIWI - Turn Your iPhone Into Game Joystick
Playing Games By Holding Your iPhone or iPod touch
Using AIWI to connect your apple devices to ASRock system, and you can interact with the PC games with delicate touches and body motion while getting responsive shakes and vibrations that correspond from the game stores.
more...
OC DNA
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
more...
EuP / ErP Ready
EuP / ErP, stands for Energy Using Product, was a provision regulated by European Union to define the power consumption for the completed system. According to EuP / ErP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP / ErP standard, the EuP / ErP ready motherboard and the EuP / ErP ready power supply are required. (The EuP / ErP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption.).
more...
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows ® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
more...
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
more...
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
more...
|
|
Product Specifications
|
General |
|
CPU |
- Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology |
|
Chipset |
- Northbridge: AMD 790GX
- Southbridge: AMD SB750 |
|
Memory |
- Dual Channel DDR memory technology
- 4 x DDR DIMM slots
- Supports DDR 400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
|
BIOS |
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- VCCM, NB Voltage Multi-adjustment |
|
Audio, Video and Networking |
|
Graphics |
- Integrated AMD Radeon HD 3300 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports |
|
Audio |
- 7.1 CH HD Audio (Realtek ALC888 Audio Codec) |
|
LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN |
|
Expansion / Connectivity |
|
Slots |
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI™ Hybrid CrossFireX™ |
|
Connector |
- 5 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x Print port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports) |
|
Rear Panel I/O |
I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA2 Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
|
Other Features / Miscellaneous |
|
Unique Feature |
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock AIWI
- ASRock APP Charger
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.) |
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial) |
|
Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- ATA 133 Cable
- 2 x SATA Data Cables (optional) |
|
Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
|
Form Factor |
- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
- Solid Capacitor for CPU power |
|
OS |
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant |
|
Certifications |
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required) |
