Feature available to Store Members

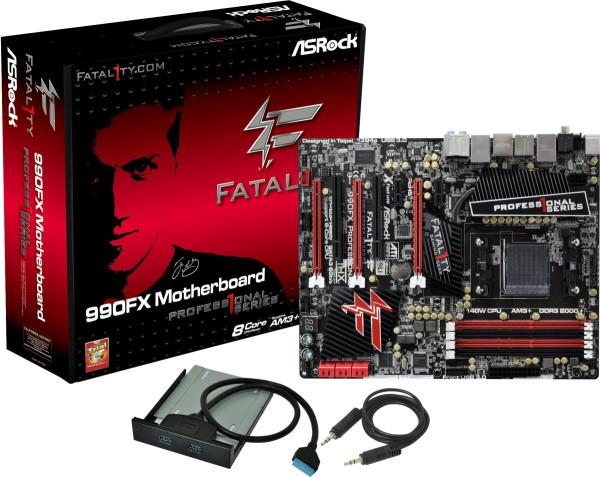

Fatal1ty 990FX Professional
|
-
Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
-
Digital PWM Design, Advanced V12 + 2 Power Phase Design
-
Supports Dual Channel DDR3 2100(OC)
-
Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
-
Supports NVIDIA® Quad SLI™ and SLI™
-
Dual PCIE GLAN with Teaming function
-
Dr. Debug, Smart Switch Design: Power/Reset/Clear CMOS Switch with LED
-
Supports Fatal1ty XFast USB, XFast LAN technologies, Graphical UEFI
-
Supports Fatal1ty F-Stream, On/Off Play Technology, Turbo UCC
-
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio™
-
Free Bundle : 1 x 3.5mm Audio Cable, 1 x Front USB 3.0 Panel, CyberLink MediaEspresso 6.5 Trial
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
Enter into Fatal1ty Zone »
|
 Youtube Live Demo
Awards
9/1/2011 Computer DIY - Best Design
ASRock Fatal1ty 990FX Professional receives Best Design Award from Computer DIY
Features
Fatal1ty XFast USB Technology - Faster Than Your Imagination!
Fatal1ty XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, Fatal1ty XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the Fatal1ty XFast USB technology can even boost USB 3.0 performance up to 145.05%!
XFast LAN Technology
ASRock XFast LAN is a smart productivity tool to help you manage your priorities of internet applications, simplify your digital life and accomplish more. The innovative features include : Internet Application Prioritization, Lower Latency in Game, Traffic Shaping and Real-Time Analysis of Your Data. It's the smartest way to control your web programs.
LAN Application Prioritization
You can configure your application priority ideally and/or and new programs.
Lower Latency in Game
After setting online game priority higher in XFast LAN, it can lower the latency in game.
Traffic Shaping
You can watch YouTube HD video and download files simultaneously.
Real-Time Analysis of Your Data
With the status window, you can easily recognize which data streams you are currently transferring.
AM3+ 8-Core Processor Support
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
Digital PWM Design
Digital Pulse-width modulation
By adopting digital pulse-width modulation (PWM), the Fatal1ty Series can provide CPU Vcore voltage more efficiently and smoothly. Compared to analog PWM, digital PWM can optimize the CPU power solution and provide a proper and stable Vcore for the processor.
C.C.R. (Combo Cooler Retention Module)
The unique combo cooler retention module greatly improves heat dissipation and is backward compatible with AMD previous AM3/AM2+ coolers.
Dual LAN - Teaming
Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.
Fatal1ty Mouse Port
Fatal1ty Mouse Port is a customizable technology for PC gamers that is a part of F-Stream. After plugging the USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can use Fatal1ty’s personal preferred mouse polling rate at 500 Hz. F-Stream also provides the flexibility for gamers to adjust the mouse polling rate from 125 Hz to 1000 Hz. This is helpful for professional gamers to experience smoother game play and faster response time to the mouse.
Limitation:
1. Some USB mice may not support 1000 Hz mouse polling rate.
2. The Fatal1ty mouse port does not support USB 2.0 mouse.
3. The Fatal1ty mouse port may not support some wireless USB mice.
4. The Fatal1ty mouse port does not support the USB mouse which is connected to the USB hub.
Premium Gold Caps
All the capacitors on the Fatal1ty Series gaming motherboard are luxury, Premium Gold Caps. These 100% Japan-made solid capacitors are sleek, high gloss caps with a premium gold coating representing long life and stable performance.
V12+2 CPU Power Phase
The Fatal1ty Series motherboard is designed with a V12+2 Power Phase, featuring sturdy components and completely smooth power delivery to the CPU. The Fatal1ty Series offers unmatched overclocking capability and enhanced performance with the lowest temperatures for PC gaming enthusiasts.
ATI™ CrossFireX Technology
CrossFireX is a brand name for ATI™ Technologies multi-GPU solution. The technology allows a pair of graphics cards to be used in a single computer to improve graphics performance.
NVIDIA® SLI Ready
SLI is a brand name for NVIDIA ® multi-GPU solution. The technology allows a pair of graphics cards to be used in a single computer to improve graphics performance.
THX TruStudio
THX TruStudio is specially designed to bring the same great audio experience found in live performances, films, and recording studios to the PC.
On/Off Play Technology
Even when the system is powered off (in ACPI S5 mode), On/Off Play Technology still allows users to enjoy the great audio experience from the portable audio devices through the PC speaker.
Turbo UCC
One Click for All-in-One Function!
Turbo UCC technology provides you an all-in-one solution to unlock the hidden cpu cores in the CPU, get the amazing system performance boost by auto-overclocking, and running the system in a certainly lower power consumption level as well. When you press "X" when switch on the computer, the system will automatically reboot itself, after that, the system will execute the Turbo UCC function. Enabling Turbo UCC, it will automatically help you to unlock the extra CPU core to enjoy an instant performance boost, and the system performance will boost up by overclocking CPU frequency, memory frequency and all related voltage settings! Different from normal high-energy consumption for overclocking or system upgrading process, ASRock Turbo UCC can allow an energy-saving overclocking or system upgrade computing operation!
Free Bundle - Cyberlink MediaEspresso 6.5 Trial
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
Limitations:
30-day trial limitation
Convert videos to the H.264 format 50 times
Fatal1ty F-Stream – The All-in-1 Tuning Software
 The Fatal1ty F-Stream tuning program is an all-in-1 software utility that supports overclocking and hard-ware tuning such as energy usage, H/W monitor, fan speed control and Fatal1ty Mouse Port Configuration. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to adjust the CPU frequency, ratio and some voltages for optimal system performance. In Mouse Polling, gamers can freely adjust the mouse polling rate. In Energy Saving, the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance.
Graphical UEFI – The Revolutionary BIOS Interface
 Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD* - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD.
*Windows® Vista-64bit or Windows® 7-64bit OS is required.
Product Specifications
|
General |
|
CPU |
- Support for Socket AM3+ processors
- Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- Supports UCC feature (Unlock CPU Core)
- Digital PWM Design
- Advanced V12 + 2 Power Phase Design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology |
|
Chipset |
- Northbridge: AMD 990FX
- Southbridge: AMD SB950 |
|
Memory |
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2100(OC)/1866/1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
|
BIOS |
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB, SB Voltage Multi-adjustment |
|
Audio, Video and Networking |
|
Graphics |
- n/a |
|
Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio™ |
|
LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE |
|
Expansion / Connectivity |
|
Slots |
- 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: x16 mode ; PCIE5: x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™ |
|
SATA3 |
- 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and "Hot Plug" functions |
|
USB 3.0 |
- 2 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s
- 2 x Front USB 3.0 headers (support 4 USB 3.0 ports) by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s |
|
Connector |
- 6 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 2 x USB 3.0 headers (support 4 USB 3.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED) |
|
Rear Panel I/O |
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 5 x Ready-to-Use USB 2.0 Ports
- 1 x Fatal1ty Mouse Port (USB 2.0)
- 2 x Ready-to-Use USB 3.0 Ports
- 2 x eSATA3 Connectors
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
|
Other Features / Miscellaneous |
|
Unique Feature |
- F-Stream
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- ASRock XFast LAN
- ASRock On/Off Play Technology
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Turbo 50 / Turbo 60 CPU Overclocking
- Turbo UCC |
|
Smart Switch |
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED |
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, AMD Fusion, AMD Fusion Media Explorer, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial) |
|
Accessories |
- 1 x ASRock SLI_Bridge_2S Card
- Quick Installation Guide, Support CD, I/O Shield
- 6 x SATA Data Cables (optional)
- 2 x SATA 1 to 1 Power Cables (optional)
- 1 x 3.5mm Audio Cable (optional)
- 1 x Front USB 3.0 Panel
- 4 x HDD Screws
- 6 x Chassis Screws
- 1 x Rear USB 3.0 Bracket |
|
Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
|
Form Factor |
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) |
|
OS |
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant |
|
Certifications |
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required) |
  |
