G41M-VS3 R2.0
|
-
Supports FSB1333/1066/800/533 MHz CPUs
-
Supports Dual Channel DDR3 1333(OC)
-
Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB
-
Supports ASRock XFast USB, Instant Boot, Instant Flash, OC DNA, OC Tuner, IES, SmartView, APP Charger
-
Free Bundle : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
|
Features
ASRock XFast USB Technology - Faster Than Your Imagination!

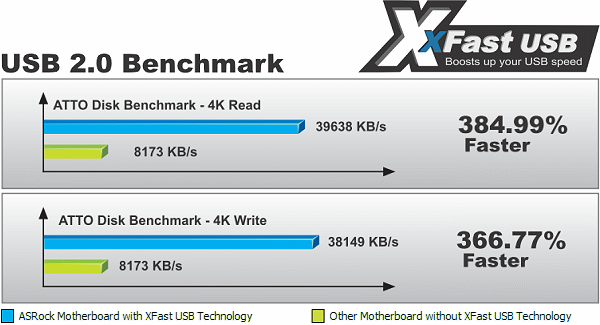

ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the ASRock XFast USB technology can even boost USB 2.0 performance up to 384.99%!
more...
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
more...
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows ® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
more...
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
more...
ASRock SmartView
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
more...
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
more...
|
|
Product Specifications
|
General |
|
CPU |
- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU |
|
Chipset |
- Northbridge: Intel® G41
- Southbridge: Intel® ICH7 |
|
Memory |
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
|
BIOS |
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- VCCM, NB, VTT, GTLRef Voltage Multi-adjustment |
|
Audio, Video and Networking |
|
Graphics |
- Intel® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB*
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
*The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.
|
|
Audio |
- 5.1 CH HD Audio (VIA® VT1705 Audio Codec) |
|
LAN |
- Atheros® PCIEx1 LAN AR8152
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE |
|
Expansion / Connectivity |
|
Slots |
- 1 x PCI Express x16 slot
- 1 x PCI slot |
|
Connector |
- 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|
Rear Panel I/O |
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone |
|
Other Features / Miscellaneous |
|
Unique Feature |
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock AIWI
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.) |
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial) |
|
Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional) |
|
Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
|
Form Factor |
- Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm |
|
OS |
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant |
|
Certifications |
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required) |
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
