H61M/U3S3
|
 |Translate
-
ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
-
Supports Intel® K-Series unlocked CPU
-
Supports Dual Channel DDR3 1333
-
Supports Intel® HD Graphics 2000/3000
-
Multi VGA Output options: D-Sub, DVI-D and HDMI
-
2 x USB 3.0, 2 x SATA3
-
Supports XFast USB, AXTU, UEFI, Instant Boot, Instant Flash, APP Charger, SmartView
-
Combo Cooler Option (C.C.O.)
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
|
Features
ASRock XFast USB Technology - Faster Than Your Imagination!

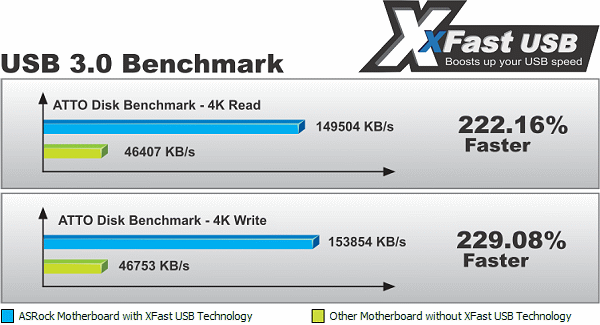

ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the ASRock XFast USB technology can even boost USB 3.0 performance up to 229.08%!
more...
Intel® HD Graphics Built-in Visuals
 |
Intel® Quick Sync Video
Intel® Quick Sync Video saves valuable time for PC users who want to create and edit video, synchronize it with other devices, and share it–at home and on the internet. Intel® Quick Sync Video uses hardware on the processor, instead of software, to accelerate video encoding. |
 |
Intel® InTru™ 3D
Enjoy the ultimate 3D visual experiences–seamlessly–from your PC. Now you can watch your favorite 3D movies with Blu-ray Stereo 3D playback using active shutter 3D glasses. It delivers it all in 1080p full, high-definition resolution on your TV over HDMI 1.4. |
 |
Intel® Clear Video HD Technology
Intel® Clear Video HD Technology (Intel® CVT HD) enables rich media experiences with picture perfect images by using a host of advanced graphics technologies that support optimized, high-definition video playback and sharp image quality. |
 |
Intel® HD Graphics 2000/3000
Intel® HD Graphics is now built right into the processor! This integration means lower latencies and leads to superior mainstream gaming and enhanced 3D experiences. |
 |
Intel® Advanced Vector Extensions (AVX)
Intel® Advanced Vector Extensions (Intel® AVX) gives more computing power to application developers with a new, 256 bit instruction set extension to Intel® SSE. |
C.C.O. (Combo Cooler Option)
C.C.O., stands for Combo Cooler Option, is another exclusive hardware design on ASRock boards. C.C.O. provides the flexible options to adopt different CPU cooler types and matches your socket LGA775, LGA1155 / LGA1156 CPU cooler in the respective holes. Once again, ASRock has successfully expanded the utilization of PCB by the exclusive C.C.O. design.
AXTU - The All-in-1 Tuning Software
 ASRock Extreme Tuning Utility (AXTU) is an all-in-one software to fine-tune different features in an user-friendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to overclock the GT frequency which helps to boost up the graphics performance and some voltage settings for optimal system performance. In OC DNA, you can save your OC settings as a profile and share with your friends. Your friends then can load the OC profile to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance.
UEFI – The Revolutionary BIOS Interface
 Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.*
*Windows® Vista™ 64bit or Windows® 7 64bit OS is required.
ASRock SmartView
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
more...
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
more...
|
|
Product Specifications
|
General |
|
CPU |
- Supports 2nd Generation Intel® Core™ i7 / i5 / i3 in LGA1155 Package
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPU
- Supports Hyper-Threading Technology |
|
Chipset |
- Intel® H61 |
|
Memory |
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
|
BIOS |
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment |
|
Audio, Video and Networking |
|
Graphics |
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX)
- Pixel Shader 4.1, DirectX 10.1
- Max. shared memory 1759MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports |
|
Audio |
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
|
LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Atheros® AR8151
- Supports Wake-On-LAN |
|
Expansion / Connectivity |
|
Slots |
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots |
|
SATA3 |
- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and "Hot Plug" functions |
|
USB 3.0 |
- 2 x USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s |
|
Connector |
- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x Print Port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|
Rear Panel I/O |
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack:Line in / Front Speaker / Microphone |
|
Other Features / Miscellaneous |
|
Unique Feature |
- ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED |
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial) |
|
Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional) |
|
Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
|
Form Factor |
- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) |
|
OS |
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant |
|
Certifications |
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required) |
