N68-VS3 UCC
|
-
Supports AM3 Socket
-
Phenom II X6, 6-Core CPU Ready
-
Supports ASRock UCC - Unlock CPU Core
-
Supports Dual Channel DDR3 1600
-
Integrated NVIDIA®® GeForce 7025 graphics, DX9.0 VGA, Pixel Shader 3.0
-
Supports ASRock XFast USB, Instant Boot, Instant Flash, OC Tuner, IES, OC DNA, APP Charger, SmartView
|
Features
ASRock XFast USB Technology - Faster Than Your Imagination!

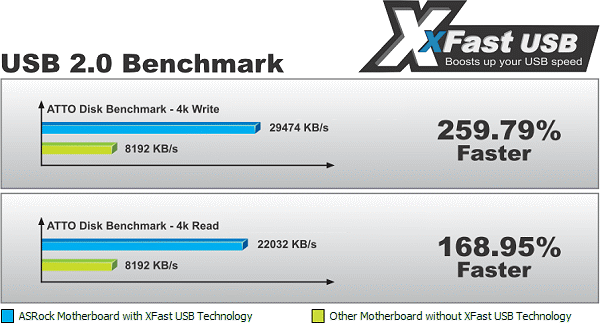

ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to below graph, it shows that the ASRock XFast USB Technology can even boost USB 2.0 performance up to 259.79% faster!
more...
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
more...
ASRock UCC
Key to Unlock CPU Core
Unlock CPU potential up to 6 cores, AMD X2 / X3 Core ⇒ X4 Core, AMD X4 Core ⇒ X6 Core
100% CPU Performance Boost!
System Performance Comparison Between UCC Enabled and Disabled
* The success rate of this enhancement depends on the individual CPU.
* The technological implement of Unlock CPU Core may vary by different models.
more...
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows ® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
more...
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
more...
ASRock SmartView
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
more...
ASRock Software Suite
ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for today’s most demanding users.
more...
|
|
Product Specifications
|
General |
|
CPU |
- Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports Six-Core CPU
- Supports UCC feature (Unlock CPU Core)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology |
|
Chipset |
- NVIDIA® GeForce 7025 / nForce 630a |
|
Memory |
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
|
BIOS |
- 4Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM Voltage Multi-adjustment |
|
Audio, Video and Networking |
|
Graphics |
- Integrated NVIDIA® GeForce 7025 graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz |
|
Audio |
- 5.1 CH HD Audio (VIA® VT1705 Audio Codec) |
|
LAN |
- Realtek PHY RTL8201EL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE |
|
Expansion / Connectivity |
|
Slots |
- 1 x PCI Express x16 slot
- 1 x PCI slot |
|
Connector |
- 4 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Print Port header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
*Please noted that RAID mode is not supported under Windows® XP/XP 64bit OS.
|
|
Rear Panel I/O |
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone |
|
Other Features / Miscellaneous |
|
Unique Feature |
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock AIWI
- ASRock APP Charger
- SmartView
- ASRock XFast USB
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.) |
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial) |
|
Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional) |
|
Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
|
Form Factor |
- Micro ATX Form Factor: 8.5-in x 7.0-in, 21.6 cm x 17.8 cm |
|
OS |
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant |
|
Certifications |
- FCC, CE, WHQL |
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
