Feature available to Store Members

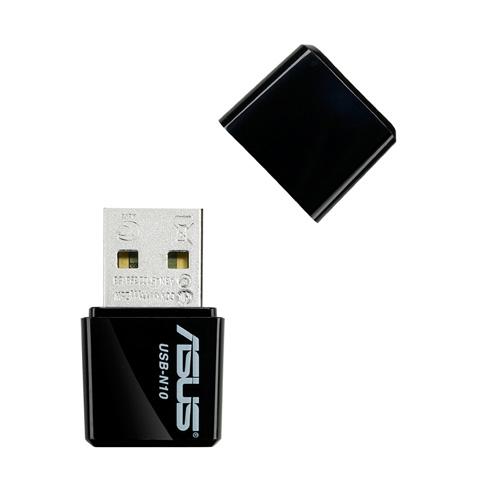

USB-N10
EZ N Network Adapter
-
Excellent Connection
Strong and convenient USB connection for fast downloads, rapid file transfers, and low-latency media streaming
-
PSP XLink Kai Support
Play system games with PSP users worldwide via the internet
-
EZ WPS
Improve Wi-Fi security with easy WPS Wizard
-
Support the newest Window 7 and Mac 10.6 Operating Systems
Add To Compare List Print
EZ N First-class Performance
The ASUS USB-N10 provides superior wireless performance for your PC compared to legacy wireless 802.11g technology. It uses a best-in-class MIFA antenna to deliver consistent HD quality data streaming and a much wider wireless operating range. In addition to providing better bandwidth and coverage, the 802.11n standard it’ also backward compatible with 11g and 11b networks, ensuring existing networking hardware can be fully utilized.
Breakthrough Antenna Design
The wireless USB adapter incorporates an impressive MIFA antenna which is better than PCB and Chip antennas widely used in generic adapters. This integrated antenna and connector design provides a compact form factor that is much smaller than conventional adapters and greatly expands the transmission range.
Extremely Compact and Powerful
USB-N10 is the smallest wireless USB adapter in the world. Boasting a 3 cm body length, it is easy to carry and takes up little space when attached to a notebook. Compared to most USB Wi-Fi adapters, it is extremely compact and sturdy with its pocket-sized format and strong plug-in design. This small size and strengthened one-piece shape allows a host notebook to be connected to the USB-N10 even when it is placed in a slim carrying case or bag. Thus you can enjoy constant connectivity with the ASUS USB-N10!
PSP XLink Kai Support
Similar to the USB-N13, the USB-N10 delivers PSP XLink connection support. You can play system-link games over the Internet rather than just over your LAN while on-the-move.
*Team XLink is a collaborate project of gaming enthusiasts that offers software and services free of charge for console gameplay over the Internet. Visit teamxlink.co.uk to learn more and to join the XLink community.
Click Here for Setup Instructions
Multiple OS Support - Windows, Mac and Linux
USB-N10 allows you to easily enjoy wireless networking over various platforms. It is compatible with common operating systems such as Windows, Linux, Mac, and even the newest Windows 7 OS.
Specifications
|
Network Standard |
IEEE802.11b, IEEE802.11g, IEEE802.11n |
|
Interface |
USB2.0 |
|
Antenna |
2 * Internal Antenna (3D enhanced MIFA antenna on USB connector ). |
|
Operating Frequency |
2.4GHz |
|
Operation Channel |
11 for N. America, 13 Europe (ETSI), 14 Japan |
|
Data Rate |
-
802.11n：Tx: 150Mbps (Max) / Rx: 150Mbps (Max)
-
802.11g：54/48/36/24/18/12/9/6Mbps
-
802.11b：11/5.5/2/1Mbps
|
|
Output Power |
-
11b 17 +/- 1 dBm
-
11g 15 +/- 1 dBm@54Mbps
-
11n 13 +/- 1 dBm (14.5dBm)
|
|
LED Indicator |
OFF: All others states
ON: Radio On and Associated, WPS Associating
Blink: Radio On and Scanning
Flash: Radio On and Associated and TX/RX Data |
|
Modulation |
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK |
|
Range |
Up to 150m |
|
Management |
|
|
Utilities |
-
Wireless setting:
Diagnose and configure your wireless network settings with on-line trouble shooting feature.
-
WPS Wizard:
High-speed wireless network is just a few clicks away
|
|
Receiver Sensitivity |
-84 dBm @11 Mbps
-70 dBm @54 Mbps
-67 dBm @64-QAM, 20MHz channel spacing
-64 dBm @64-QAM, 40MHz channel spacing |
|
Certifications |
CE, FCC, IDA, IC, C-Tick, NCC, GOST |
|
Physical Specifications |
Dimensions：30mm*17mm*8.5mm |
|
Environmental Specification |
Temperature: 0 ~ 40° C ambient
Storage Temperature: -10 ~ 70 ° C ambient
Humidity: 5 ~ 90% and must be non-condensing |
|
Package Contents |
-
USB Wireless Adapter *1
-
Quick start guide*1
-
Support CD *1
-
Warranty Card*1
|
|
Network Architecture Types |
Infrastructure and ad-hoc |
|
Encryption |
64/128-bit WEP, TKIP, AES, WPA-PSK, WPA2-PSK |
|
OS Support |
-
Windows 2000/ XP(x86/x64)/ Vista(x86/x64)/ 7(x86/x64)
-
Mac 10.4/10.5/10.6
-
Linux: Redhat 9.0 ( Kernel 2.4.20), Ubuntu 9.04 (Kernel 2.6.28-11), Fedora10 (Kernel 2.6.28-11), Ubuntu 8.04( kernel : 2.6.24-24)
|
|
Model |
Date |
Subject And Comments |
Media |
Area |
 |
USB-N13 |
2010/08 |
TweakTown Must Have Best Performance Award
The ASUS USB-N13 works as a great USB wireless adapter . It is hands down one of the fastest I have used. It also has some great range behind it. …you are still getting a very fast Wireless Adapter; one that is actually smaller and lighter than the others I have here in the lab. It makes a great choice if you do not already have a wireless adapter… With the fastest transfer speeds we have recorded in our testing environment to date and the lowest price, the ASUS USB-N13 makes an excellent choice for a wireless adapter.
|
TweakTown |
UNITED STATES |
 |
USB-N10 |
2010/08 |
Silver Award
ASUS USB-N10 is smallest USB adaptor can send signal 2.4GHz - 2.5GHz, support Windows 7, easy to set up.
|
HWM |
THAILAND |
 |
USB-N10 |
2010/07 |
Excellent buy |
www.reviews.ru |
RUSSIA |
 |
USB-N10 |
2010/05 |
Editor's choice
a very tiny and good product, expecillay for its micro form. Within the many features, the PSP Xlink connection that allows to play in network using PSP. All these features coming with a really cheap price.
|
Pchs.it |
ITALY |
 |
USB-N13 |
2010/04 |
Price/Performance |
PcLabs.gen.tr |
TURKEY |
 |
WL-130N |
2010/03 |
Выбор редакции
Excellent performance and an optimal price/quality ratio.
|
PC magazine |
RUSSIA |
 |
WL-130N |
2010/03 |
Editors' choice
Excellent performance and an optimal price/quality ratio.
|
PC Magazine/RE |
RUSSIA |
 |
USB-N10 |
2010/03 |
2010 Taiwan Excellence Award
USB-N10 is the shortest wireless USB adapter all over the world, boasting a 3 cm body length make it very easy to carry and thereby greatly reducing the use of space. If you like take NB with wireless Internet everywhere, USB-N10 is definitely your easiest and most convenient gadget.
|
TAITRA |
TAIWAN |
|
|
USB-N13 |
2010/03 |
2010 Taiwan Excellence Award
Classical wave skin pattern and rectangular figure, this is very suitable to embellish different type of PC. Adpots 802.11n technoloy, its Multiple In Multiple Out antenna design allows you to enjoy 5 times higher than 802.11g transmission performance, smoothly stream high quality multimedia.
|
TAITRA |
TAIWAN |
 |
USB-N13 |
2010/03 |
Computer!Totaal Redactietip |
Computer! Totaal |
NETHERLANDS |
  |
