Master Piece Audio Card for Home Theater & Gaming in your
|
|
|
PCI Express Slot |

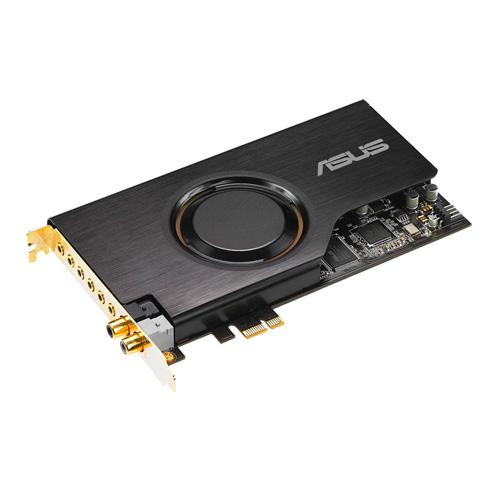

Asus Xonar D2X is the world's first PCI-E interface high end audio card featuring SNR up to 118dB. Xonar D2 provides intuitive DS3D GX to solve Vista gaming audio issues, and Acoustic Echo Cancellation (AEC) for best voice communication quality, the Xonar D2X will undoubtedly provide the best gaming experience ever.
ASUS Xonar D2X -Solution to Windows Vista Gaming Audio Problems
With the introduction of Windows Vista, the whole audio architecture landscaped has been changed. This has resulted in teething problems for gamers - with the possibility of losing all surround sound or hardware accelerated Direct3D and EAX while gaming in the Windows Vista environment. To circumvent this problem, the ASUS Xonar family of audio cards utilizes an ASUS exclusive technology - the new DS3D GX extension in the Xonar D2X driver; to provide full support for surround sound and hardware accelerated features by translating DirectX to the DS3D GX. While other solutions like OpenAL requires special installation and game support, DS3D GX doesn't. Gamers can enjoy DirectX gaming with hardware enhanced surround sound and EAX effects automatically and immediately after installation.
Cleanest Voice in Online or LAN Game Chatting
The Xonar D2X also includes the innovative "Acoustics Echo Cancellation" (AEC) technology to facilitate the best online voice communication quality. AEC can eliminate up-to-40dB speaker echo return and suppress noises that would otherwise enter the users' microphone – making the Xonar D2X the best audio card choice for online chatting in VOIP applications (Skype, MSN, Google, QQ, etc.) or online gaming.
Unparalleled Sound Clarity
The ASUS Xonar D2X also features a signal- to-noise ratio (SNR) of 118 dB for both audio in and out - reaching the maximum limit of audio quality on most PC platforms. Unlike generic audio cards in the market that provide the highest SNR to only the front stereo outputs, the Xonar D2X is able to deliver 118 dB quality audio for all 7.1 channels.
Dolby and DTS for Complete Digital Home Experience
Besides delivering impressive audio quality, the Xonar D2X is also packed with multiple sound technologies from Dolby and DTS to deliver outstanding entertainment experiences. These include
Dolby Digital Live: Converts PC or game audio content into Dolby Digital in real-time
Dolby Headphone: Creates a surround sound listening experience when using any set of headphones
Dolby Virtual Speaker: Delivers a vibrant surround sound listening experience from stereo speakers
Dolby Pro Logic® IIx: C reates up to 7.1-channel surround sounds from stereo or 5.1 sources
DTS Connect: Includes DTS Interactive and DTS NEO:PC
DTS Interactive for real time AC-3 encoding and
DTS NEO: PC stereo to multi-channel expander
Specifications
|
Audio Performance |
Output Signal-to-Noise Ratio (A-Weighted):
118dB for all channels dB dB
Input Signal-to-Noise Ratio (A-Weighted):
118 dB dB
Output THD+N at 1kHz:
0.0004% (-108dB)
Input THD+N at 1kHz:
0.0004% (-108dB)
Frequency Response (-3dB, 24-bit/96kHz input):
<10Hz to 46kHz (for all channels)
Frequency Response (-3dB, 24-bit/192kHz input):
<10Hz to 46kHz (for all channels)
Output/Input Full-Scale Voltage
2 Vrms (5.65 Vp-p)
Sample Rate Conversion Quality:
Almost lossless, high-fidelity floating-point filters, with:
-140dB THD+N (typical value for 44.1K->48KHz, 24bit)
145dB Dynamic Range (typical value for 44.1K->48KHz, 24bit) |
|
Main Chipset |
Audio Processor:
ASUS AV200 High-Definition Sound Processor (Max. 192KHz/24bit)
24-bit D-A Converter of Digital Sources:
TI Burr-Brown PCM1796 *4 (123dB SNR, Max. 192kHz/24bit)
24-bit A-D Converter for Analog Inputs:
Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit) |
|
Sample Rate and Resolution |
Analog Playback Sample Rate and Resolution:
44.1K/48K/96K/192KHz @ 16/24bit
Analog Recording Sample Rate and Resolution:
44.1K/48K/96K/192KHz @ 16/24bit
S/PDIF Digital Output:
Dolby Digital, DTS, WMA-Pro
S/PDIF Digital Input:
44.1K/48K/96K/192KHz @ 16/24bit
ASIO 2.0 Driver Support:
44.1K/48K/96K/192KHz @ 16/24bit |
|
I/O Ports |
Analog Output Jack:
3.50mm mini jack *4 (Front/Side/Center-Subwoofer/Back)
Analog Input Jack:
3.50mm mini jack *2 (Line-In/Mic-In)
Other line-level analog input (for CD-IN/TV Tuner):
CD-In, Aux-In (4-pin header on the card)
Digital S/PDIF Output:
Coaxial and High-bandwidth Optical Combo Connector
Supports 192KHz/24bit
Digital S/PDIF Input:
Coaxial and High-bandwidth Optical Combo Connector
Supports 192KHz/24bit
MIDI Ports:
Additional MPU-401 MIDI I/O bracket and converter cable |
|
Driver Features |
Operation System:
Windows 7/Vista/XP/MCE2005
Dolby® Technologies:
Dolby® Digital Live
Dolby Digital Live encodes any audio signal on PC in real-time to Dolby Digital (AC3) 5.1 surround sounds to your home theater environment through one single S/PDIF connection
Dolby® Headphone
Dolby Headphone technology allows users to listen to music, watch movies, or play games with the dramatic 5.1-channel surround or realistic 3D spacious effects through any set of stereo headphones.
Dolby® Virtual Speaker
Dolby Virtual Speaker technology simulates a highly realistic 5.1-speaker surround sound listening environment from as few as two speakers.
Dolby® Pro-Logic IIx
Dolby Pro-Logic II is the well-known technology to process any native stereo or 5.1-channel audio into a 6.1- or 7.1- channel output, creating a seamless, natural surround soundfield.
DTS® Technologies:
DTS® Connect contains DTS Interactive Encoder and DTS Neo:PC technologies. DTS Interactive encodes any sound on PC to “DTS 5.1 Surround” high bitrate digital stream to your home theater through S/PDIF connection. DTS Neo:PC can convert stereo audio into 5.1 or 7.1-channel high-fidelity surround sounds.
Smart Volume Normalizer™:
Normalizes the volume of all audio sources into a constant level and also enhances your 3D sound listening range and advantages in gaming
Xear 3D™ Virtual Speaker Shifter:
Virtual 7.1 speaker positioning and shifting to adjust the optimum soundfield for your speaker placement
Magic Voice™:
Modifies and disguises the sound tone of your voice for VOIP and online chat applications
Karaoke Functions:
Music Key-Shifting and Microphone Echo effects
FlexBass™:
Professional Bass Management/Enhancement system for small or large speakers
Other Effects:
10-band Equalier/27 Environment Effects
3D Sound Engines/APIs:
Vista: DirectSound3D® GX 2.5, DirectSound® HW, DirectSound SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability
XP: DirectSound2.5 SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability
|
|
Bundled Software Utility |
Portable Music Processor utility:
Converts digital music content or CD audio into regular MP3/WMA files with Dolby Headphone, Dolby Virtual Speaker (w/ Pro-Logic II), and Smart Volume Normalization processing (Windows Media Player 10 or above is required)
Professional Audio Editing Utility:
Ableton Live 6 Lite; Cakewalk Production Plus Pack (SONAR LE, Dimension LE, and Project5 LE)
PowerDVD 7.0:
7.1-ch DVD player with Dolby Digital decoder |
|
Accessories |
4 x 3.5mm-to-RCA adaptor cable (8ch)
2 x S/PDIF optical adaptors
1 x S/PDIF optical cable
1 x Additional MIDI card, cable, and external standard MIDI adaptor Y cable
Dolby Demo CD |
|
Size (Width x Height) |
111.15 x 180.26mm |
