AZTECH DSL1015EN



Condition : New         Item at : OTHERS

All Categories > Computer & Software > WIFI / WLAN

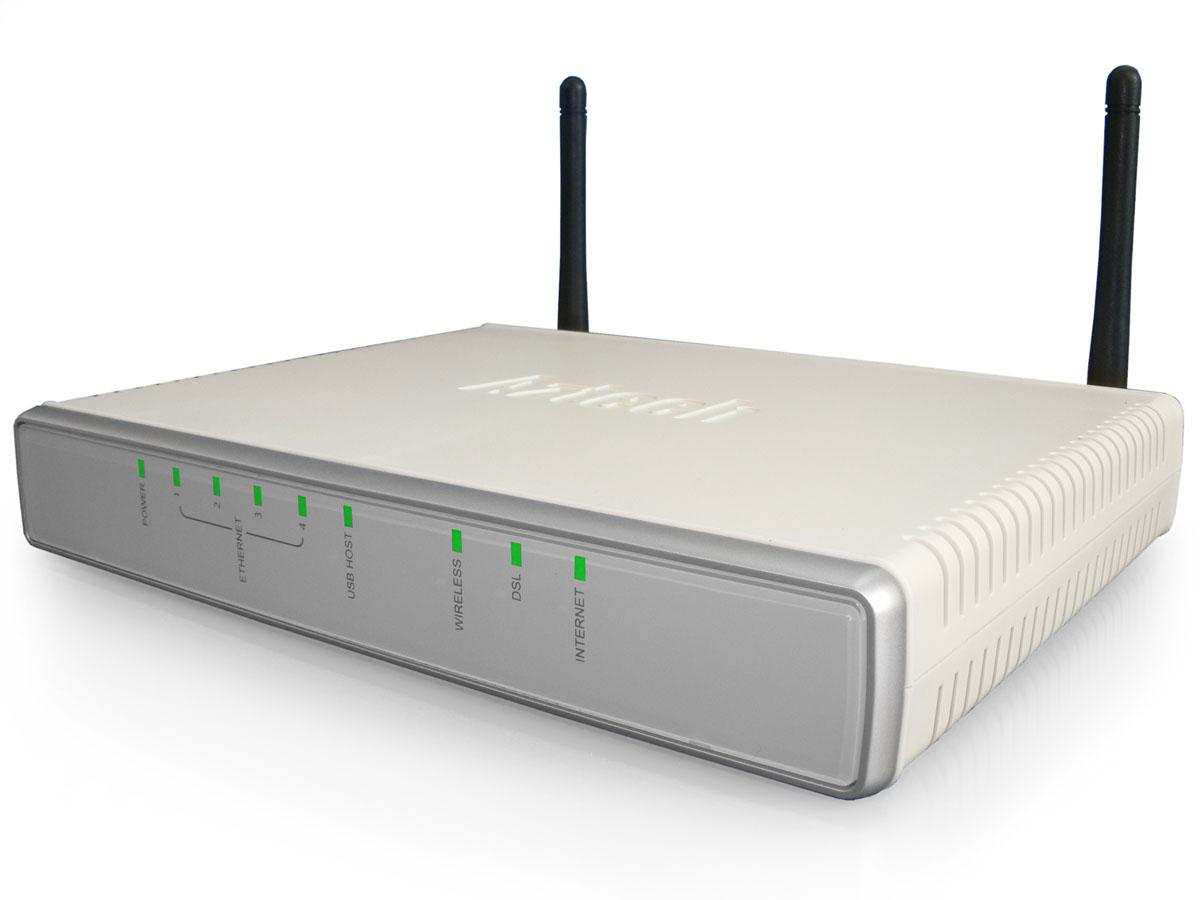

AZTECH DSL1015EN
Click To Enlarge



Tell Friends



Sale Price / Unit : RM 140.00 (Firm)
Shipping Fee :
Peninsular :RM12
Sabah,Labuan:RM ASK
Sarawak:RMASK
International:RM
Shipping Method : Normal Post, Parcel Services, POS Laju, Self Collect
Ship To : International
Payment Method : Cheque, Maybank2U, CreditCard, TT / Wire, Cash on Collection (COC), SafeTrade

Time Left : Closed

Brand :
Model / SKU / Code :
Available Qty : 29999
View / WatchList : 6 times / 0 times
Product Description for AZTECH DSL1015EN


AZTECH DSL1015EN
Feature available to Store Members

AZTECH DSL1015EN



PRODUCT SPECIFICATIONS



ADSL Support
ANSI T1.413 issue 2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) compliant
G.992.3 (ADSL2), G.992.5 (ADSL2+), RE-ADSL Ready
ATM Layer with Traffic shaping QoS Support (UBR, CBR, VBR-rt, VBR-nrt)
AAL ATM Attributes - AAL5
Multiple PVC up to 16 support
Spectral compatibility with POTS
F4 & F5 OAM Loopback/Send and Receive
Annex B design option
TR-067 pass
TR-068 compliant
Encapsulation Support
RFC2684 Bridge and Routed LLC and VC Mux support (for ADSL only)
RFC2364 PPPoA Client support (for ADSL only)
RFC2516 PPPoE Client support
RFC2225/RFC1577 Classical IP Support (for ADSL only)
Transparent Bridge Support
PAP/CHAP/MS-CHAP for Password Authentication Support
Network Support
Static IP, Dynamic RIP v1/v2 routing support
IP/TCP/UDP/ICMP/ARP Application Support
Network Address Translation (NAT)
PVC to VLAN Mapping
Port Forwarding/Triggering
Easy setup of Port Forwarding rules for popular Games/Application
NAT Application Level Gateway for popular applications
Multi NAT support (future release)
DHCP Server/Relay/client
DNS Relay Agent
DMZ support
Easy Connect Support (future release)
SIP ALG support
Multiple Sessions IP Sec and PPTP/L2TP VPN pass through support
PPP Always on
PPP Dial on Demand with configurable timeout
Universal Plug and Play Support
DDNS (Dynamic DNS) Support
IGMP Proxy Support (IGMP v1 and v2 and v3)
IGMP Snooping Support
SNTP Support
QoS Support (DSCP, TOS), including Diffserv, IEEE802.1p – Priority bit,
IEEE802.1q – VLAN triggering
PPP/DHCP Auto Detection (Future release)
WLAN Support
IEEE 802.11, 802.11b and 802.11g compliant
802.11n wireless mini PCI card (2x2 MIMO)
Transmit output power up to 20dBm (standard)
Conforms to Wireless Ethernet Compatibility Alliance (WECA) Wireless Fidelity (Wi-Fi tm) Standard
Support seamless WLAN roaming
Frequency Band :
ˇ 2412 MHz - 2462 MHz (North America/FCC)
ˇ 2412 MHz - 2472 MHz (ETSI/Europe)
ˇ 2412 MHz - 2484 MHz (Japan)
ˇ 2457 MHz - 2472 MHz (France)
ˇ 2457 MHz – 2462 MHz (Spain)
Support Direct Sequence Spread Spectrum (DSSS) technology
Modulation : OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK
Wireless Media Access Protocol- CSMA/CA with ACK
64/128Bit WEP Encryption
WPA/WPA2 Support
MAC filtering Support
Secure Easy Set Up Support (SES Button)1 (depopulation option)
Dynamic Rate Scaling from 54, 48, 36, 24, 12, 11, 9, 6, 5.5, 2, 1 Mb/s
Operating Range of >300 Meters (Open Air)
WDS Support (Wireless Distribution System)
Multiple SSID Support
Management Support
Web Based HTTP management GUI
TFTP/FTP Support for Firmware Upgrade
Web Based Firmware Upgrade (Local)
Soft Factory Reset Button via Web GUI
Diagnostic Test (DSL, OAM, Network, Ping Test)
TR068 – WAN Access
Telnet with CLI (Read and Write) configuration
Syslog Support
Firmware upgrade-able for future feature enhancement
Quick firmware upgrade button (population option)
TR-069, TR-064 Support
SNMP v1 and v2
SSH Support
Security Support
NAT for basic Firewall support
Packet Filtering Firewall Support
Stateful Packet Inspection Support
Protection against Denial of Service attacks
Password Authentication to Modem
URL filtering/ Parental Control (Option)
Real-Time Attack and Alert Logs (Option)
HARDWARE
Broadcom BCM6358S/U (Processor),
Broadcom BCM5325E (5-Port 10/100 Ethernet Switch)
Broadcom BCM4318 MAC/BASEBAND/DCR (802.11b/g wireless) (population
option)
TI OPA2613IDR line driver
Ralink RT2860 MAC/BBP Controller (802.11n 2.4GHz)
Ralink RT2820 2.4GHz Transceiver (for 802.11n)
8 MB Flash ROM (option for 4MB)
32 MB DDR SDRAM (option for 16MB)
Dying Gasp Support (Population Option)
ITU K.21 Support
GDT Support (Population Option)
PLATFORM SUPPORT
For Ethernet and Wireless LAN


OS Independent

USB Application Support (option)
  Network Storage devices
Printer
Digital Camera
POWER REQUIREMENTS
Input Voltage : 12V DC +/- 10%
Input Current : 1.0~1.5A
LED Indicators
1 x “Power” (Green and Red) LED
4 x Ethernet Link Status (Green) LED
1 x USB 2.0 Host (Green) LED
1 x “Wireless” LAN Link/Activity Status (Green) LED
1 x “DSL” Status (Green) LED
1 x “Internet” Status (Green and Red) LED
1 x “WPS” status (Green) LED (left side of Sirius/Mozart casing)
External Connectors
1 x RJ-11 Telephone socket for DSL line
1 x RJ45 for 10/100Base-T for WAN port (population option)
4 x RJ45 for 10/100Base-T Ethernet (AutoMDI/MDIx)
1 x USB 2.0 Host Vertical mount at back panel
1 x USB 2.0 Host Horizontal mount at left side of PCBA (population option)
1 x DC Jack for Power Input
1 x Factory Default Reset Button
1 x On/Off Rocker Switch
2 x 3dBi 180 degree rotate-able fixed antenna (default)
Option for 3 x 3dBi 180 degree rotate-able fixed antenna
Option for internal antennas(PCB or PIFA)
1 x WPS Button (with light indication, Green when activated)
1 x Wireless Disable slide switch (population option)
1 x Quick Firmware Upgrade Button underneath the casing (population option)
Metal Back Panel
Measurements
Dimension : 198MMx152MMx31MM
Weight : TBA
REGULATORY APPROVALS
US : FCC Part 15/68, UL 3rd Edition (option)
Asia Pacific /Europe : CE, IEC 60950
ENVIRONMENTAL
TEMPERATURE
  Operating : 0°C to 40°C
Non-Operating : -25°C to 70°C
HUMIDITY
  Operating : 10% to 85% Relative Humidity (Non-Condensing)
Non-Operating : 5% to 95% Relative Humidity (Non-Condensing)

NOTE : Specifications are subject to change without prior notice.


Last Updated @ 11/16/2011 7:28:57 PM





Seller accept the following payment:
more...

Q&A (1)
fisrii ask: (Posted: 7/23/2011 4:50:17 PM) # 8882
Hello, there. Aztech DSL1015EN(L), ready stock with you?

How much for the current price including postage fee?

Any replies should be forwarded to my email at fisrii.fee@gmail.com

Thanks.
pczonecomputer reply: (Posted: 7/23/2011 5:18:59 PM)
Yes, Exstock - Tranport Charge in West Malaysia - RM13.00
