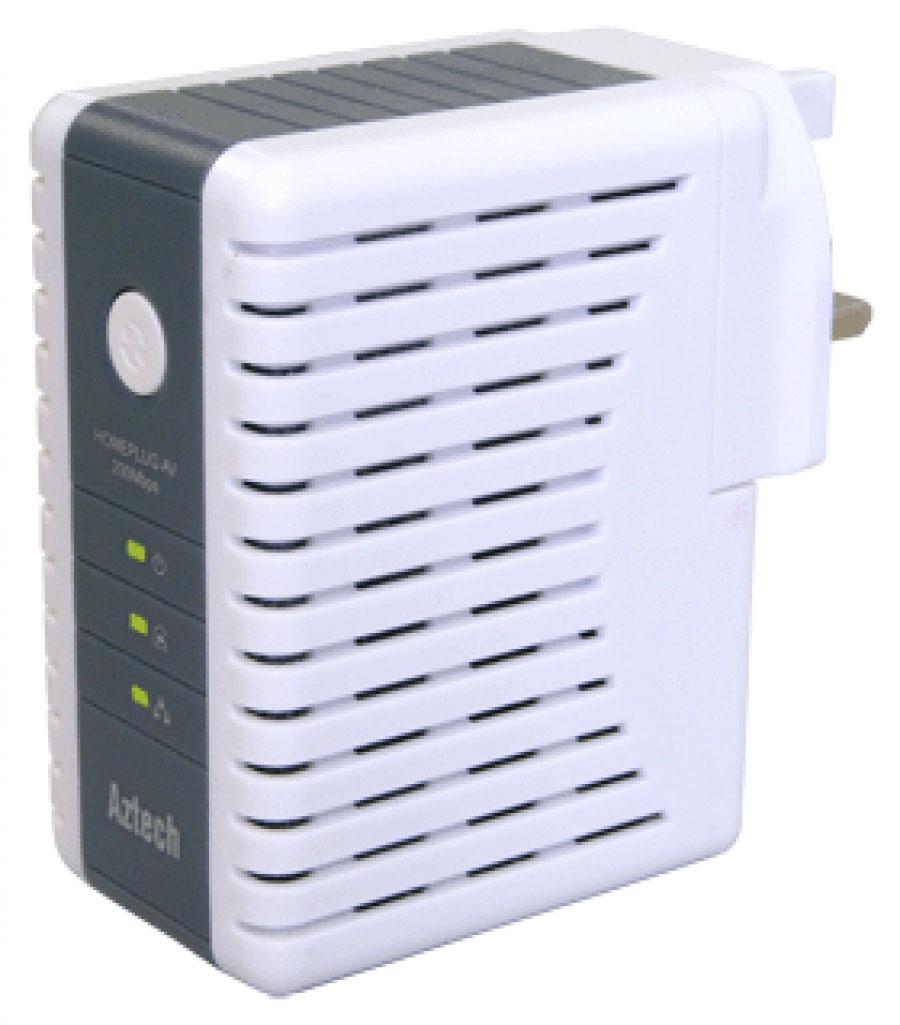

Aztech HL110E 200Mbps Home Plug AV Ethernet Adaptor

200Mbps HomePlug AV Ethernet Adaptor

Aztech HL110E 200Mbps HomePlug AV Ethernet Adaptor connects PCs, modems, routers, game consoles and IP set-top boxes via powerline in your home. With speed up to 200Mbps, it supports
Internet Television (IP-TV in HD quality), video-on-demand, VoIP Telephony and fast Internet access – with “Quality of Service” for highest satisfactions. It achieves a range of up to 200 meters within a single powerline grid, enabling the greatest reliability and flexibility to connect your network-enabled devices throughout your home. For maximum security and at your convenience, simply encrypt your network traffic with a touch of the Simple Connect button.

Just plug the Aztech HL110E into any power socket to turn your powerline in your home into Local
Area Network (LAN). The best part – your network is portable. You can rearrange your home – without the need for laying new cables. Just unplug and re-plug Aztech HL110E into other power sockets - So simple.

All you need is one pair of Aztech HL110E to enjoy the full range of benefits.

PRODUCT SPECIFICATIONS

Protocol/Standards

Powerline: HomePlug AV Ethernet: IEEE 802.3 10/100 Auto MDI/MDIX

Modulation Support

OFDM 1024/256/64/16/8 QAM QPSK BPSK ROBO

Data transfer rate

Up to 200Mbps

Range

Up to 200m

Security

128-bit AES encryption (enabled with Simple Connect button)

Hardware

Intellon INT6400 HomePlug AV Chipset

LED indicators

1 x Power 1 x Reset Button 1 x Push Button for Simple Connect

External Interfaces

1 x Ethernet LAN Port 1 x Reset Button 1 x Push Button for Simple Connect

Physical measurement

Dimension : 90mm(H) x 46mm(W) X 75mm(D) Weight : Approx. 190g / unit

Power Consumption

4.0W, 0.06A, 1.6W in standby

Power Supply

AC 100~240V, 50~60Hz

Temperature

Operating : 0°C to 40°C (41°F to 113°F) Non-Operating : -25°C to 70°C (-13°F to 158°F)

Humidity

Operating : 30% to 80% Humidity (Non-Condensing) Non-Operating : 30% to 95% Humidity (Non-Condensing)

Operating Systems (For manual configuration only)

Windows 98/98SE/ME/2000/XP/Vista (32/64-bit)

Regulatory Approvals

Asia Pacific/Europe: CE, IEC60950, BS1363 Part 1 North America : FCC

COME WITH 1 YEAR WARRANTY
