The Next Step in Compact Delay
Even with the best-selling delays in compact-pedal history, BOSS continues to push the envelope and innovate. The new DD-7 takes the best features from its predecessors and expands the creative potential with Modulation Delay mode, classic modeled Analog Delay mode, External pedal control options, longer delay time, and more.
-
Expanded delay time, up to 6.4 seconds
-
Modulation Delay mode offers natural, chorus-type sounds
-
Analog Delay mode models the classic warm BOSS DM-2 analog delay sound
-
Tap tempo controllable via external footswitch
-
Delay time, feedback, and effect level can be controlled via external Expression pedal (sold separately)
-
Up to 40 seconds of recording for sound on sound (Hold mode)
REMARKS:
This item must using Boss Adapter or Behringer adapter
ATTENTION FOR The Warranty
if using other brand adapter for this item ,any problem of the item we are not warranty .
*No Include Adapter
*Advance
Boss Adapter or Behringer adapter = RM140

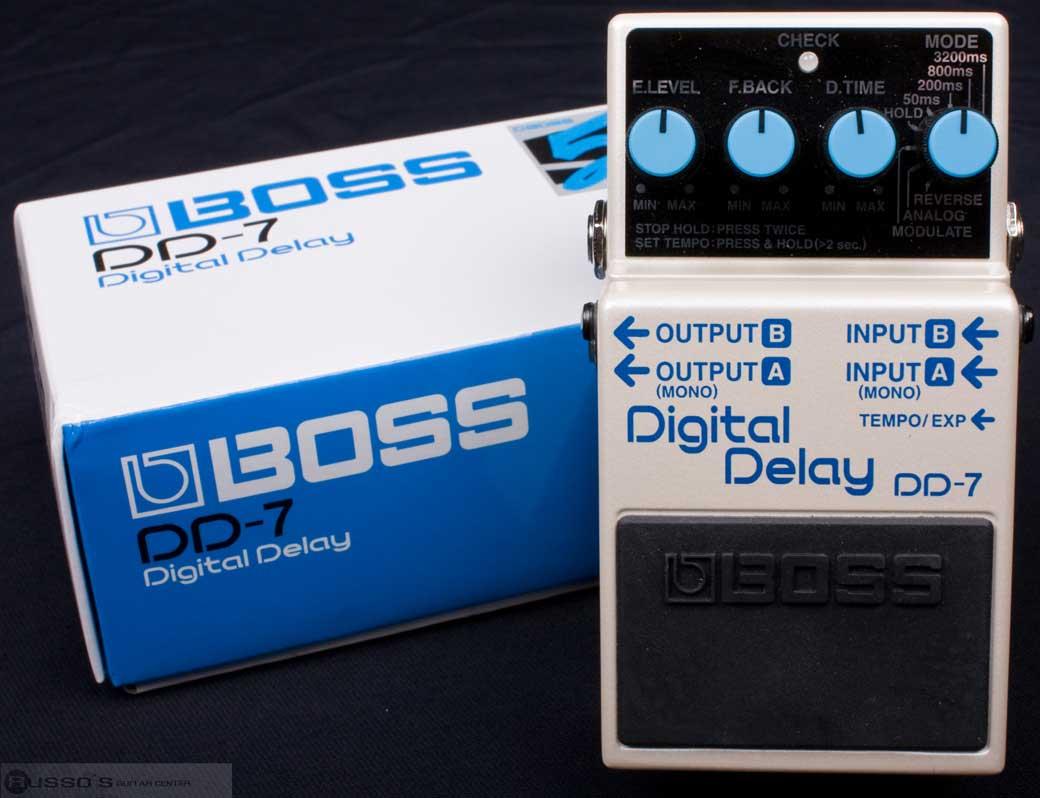

DD-7: Digital Delay
The Next Step in Compact Delay
-
Controls
-
E.LEVEL, F.BACK, D.TIME, MODE
Pedal switch
-
Indicator
-
CHECK (Used for indication of TEMPO, HOLD, and to check battery)
-
Connectors
-
INPUT-A (MONO) jack, INPUT-B jack
OUTPUT-A (MONO) jack, OUTPUT-B jack
TEMPO/EXP jack
AC adaptor jack (DC 9 V)
-
Delay Time
-
1 ms to 6400 ms*
Maximum recording time: 40 sec (in Hold mode)
*Values may vary according to the mode and connections.
-
Nominal Input Level
-
-20 dBu
-
Input Impedance
-
1 M ohm
-
Nominal Output Level
-
-20 dBu
-
Output Impedance
-
1 k ohm
-
Recommended Load Impedance
-
10 ohms or greater
-
Power Supply
-
DC 9 V:
Dry battery, 9 V type (6F22/carbon, 6LR61/alkaline)
AC Adaptor (PSA-series: optional)
-
-
DC 9 V: Dry battery 6F22 (9 V) type (carbon)/
Dry battery 6LR61 (9 V) type (alkaline),
AC Adaptor (PSA-series: optional)
-
Current Draw
-
55 mA (DC 9 V)
* Expected battery life under continuous use: Carbon: 1.5 hours, Alkaline: 6 hours. These figures will vary depending on the actual conditions of use.
-
Accessories
-
Owner's Manual, Mode Sticker, Application Sticker, Leaflets ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V type, 6LR61) *1
-
Options
-
AC adaptor (PSA-series), Footswitch: FS-5U, Expression pedal: Roland EV-5
-
Size and Weight
-
Width
-
73 mm
-
2-7/8 inches
-
Depth
-
129 mm
-
5-1/8 inches
-
Height
-
59 mm
-
2-3/8 inches
PM
(
