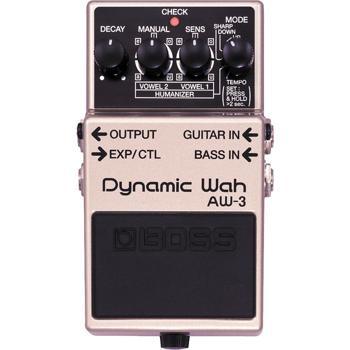

The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.
-
Compact pedal creates a variety of classic "wah" effects
-
Dynamic wah sounds provide variable effect based on picking strength
-
"Humanizer" effect creates human voice-type vowel sounds
-
Dedicated Bass input for processing bass guitar
-
EXP Pedal mode allows wah control via optional expression pedal
-
Tempo can be set for pedal control or at fixed rate via Manual mode
-
BOSS 2-year warranty
REMARKS:
This item must using Boss Adapter or Behringer adapter
ATTENTION FOR The Warranty
if using other brand adapter for this item ,any problem of the item we are not warranty .
*No Include Adapter
*Advance
Boss Adapter or Behringer adapter = RM140
AW-3: Dynamic Wah
-
Nominal Input Level
-
-20 dBu
-
Input Impedance
-
1 M ohms
-
Nominal Output Level
-
-20 dBu
-
Output Impedance
-
1 k ohms
-
Recommended Load Impedance
-
10 k ohms or greater
-
Residual Noise Level
-
-92 dBu (IHF-A, Typ.)
-
Connectors
-
GUITAR IN Jack, BASS IN Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
-
Power Supply
-
DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
-
Current Draw
-
50 mA (DC 9 V)
-
Accessories
-
Dry Battery 9 V type (6F22/9 V)
-
Options
-
AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
-
Size and Weight ( incl. battery )
-
Width
-
73 mm
-
2-7/8 inches
-
Depth
-
129 mm
-
5-1/8 inches
-
Height
-
59 mm
-
2-3/8 inches
