Introduction

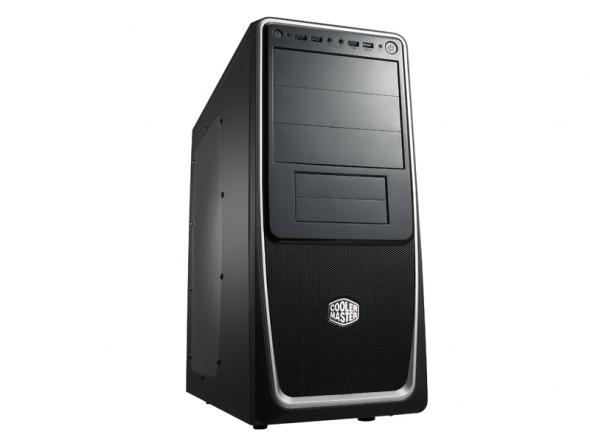

Elite 311 Plus (RC-311P), successor of our Elite 310, with improved PSU placement for better cooling, it accommodates micro-ATX and ATX motherboards, built with a modern black design body and multi-color frame on the front panel. This chassis maintains Elite's pedigree of compact-sized and quality build that would look great in any space.

Specifications
|
Available Color |
Black/Titanium |
|
Material |
Steel body, ABS Plastic, Mesh front bezel |
|
Dimension (W / H / D) |
190 x 450 x 477 mm / 7.5 x 17.7 x 18.8 inches |
|
Weight |
5.9 kg / 13 lbs |
|
M/B Type |
ATX / Micro-ATX |
|
5.25" Drive Bay |
3 Exposed |
|
3.5" Drive Bay |
2 Exposed
5 Hidden |
|
I/O Panel |
USB 3.0 x1, USB 2.0 x3, MIC x1, Audio x1 |
|
Expansion Slots |
7 |
|
Cooling System |
Front: 120 x 25 mm blue LED fan x1, 1200 rpm, 140 mm fan x1 (Optional)
Rear: 120 x 25 mm fan x1, 1200 rpm,
17 dBA; 80/90 mm fan x1 (optional) |
|
Power Supply |
Standard ATX PS2 (Optional) |
|
Maximum Compatibility |
CPU cooler height: 158 mm
VGA Card Length: 281 mm
422 mm (Without HDD Cage) |
Last Updated @ 9/13/2011 10:41:40 AM
|
