| Product Description |
|
|
To enable AM3+ AMD FX-Series CPU support, please update your motherboard with the most current BIOS found in your motherboard’s download section.
Get Ready for New Generation of 32nm AMD AM3+ CPU
GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger... more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
Core Boost Support
GIGABYTE’s Core Boost technology provides an easy way for users unlocking the CPU’s hidden cores via the EasyTune6 utility. Without any complicated setting needed in BIOS, users can experience a phenomenal performance upgrade right away.
*The ability of unlocking the hidden CPU cores might vary by different processors.
Introduction

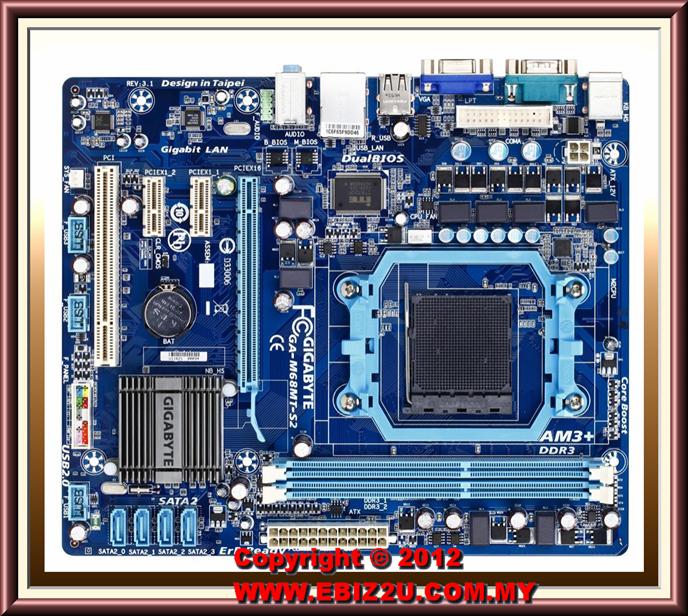

The GA-M68MT-S2, based on NVIDIA GeForce7025/ nForce630a chipset and supports new generation of 45nm AMD AM3 Phenom II/ AthlonII processors, integrated DirectX 9 graphics engine, DDR3 memory controller, PCI Express interface and so on. With the 50000 hours Japanese solid capacitors for CPU VRM design, the GA-M68MT-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
Supports next generation of 45nm AMD AM3 CPU
This motherboard features Split Power Plane, 3+1 phase VRM to support AMD's latest 45nm AM3 Athlon II/ Phenom II series processors, delivering greater performance enhancements and the ultimate in hardware scalability.
* If you install AMD AM3+/AM3 CPU on this motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3+/AM3 CPU will not be impacted. Please refer "CPU Support List" for more information.
NVIDIA GeForce 7025 / NVIDIA nForce 630a GPU
The brand new NVIDIA® GeForce 7025 / NVIDIA® nForce 630aGPU features CineFX™ 3.0 Engine. This unique combination of 7025 GPU creates a single motherboard featuring a world-class DX9, Shader Model 3.0 GPU for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
PCI Express Interface
Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
DDR3 1600+ Support
Delivering native support for DDR3 memory up to1600+MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
SATA 3Gb/s & RAID
This platform supports reliable storage solution for enhanced data protection and data accessing performance. Serial ATA 3Gb/s is firstly introduced in this platform to provide blazingly 3Gb/s bus bandwidth thus higher disk performance. The NVIDIA® RAID allows multi-disk designs to be set up as RAID 0, 1, based on users' priority of protection/ performance. This NVIDIA RAID function makes the RAID even more accessible by introducing the innovative windows-based facility.
High Definition Audio
Experience home theater-quality sound with your PC using High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.
DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
Qualified for Windows® 7
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft ®, setting the standard for future Windows 7 certified motherboards... more
ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
|
| Product Specification |
|
|
| CPU |
AM3+ Socket:
- Support for AMD AM3+ FX processors (Note 1)
- Support for AMD Phenom™ II processors/ AMD Athlon™ II processors
(Please refer "CPU Support List" for more information.) |
| Hyper Transport Bus |
- 2000 MT/s
|
| Chipset |
- NVIDIA® GeForce 7025/nForce 630a chipset
|
| Memory |
- 2 x 1.5V DDR3 DIMM sockets supporting up to 8GB of system memory (Note 2)
- Dual channel memory architecture
- Support for DDR3 1600/1333/1066/800 MHz memory modules
(Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Chipset:
- 1 x D-Sub port
|
| Audio |
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel (Note 3)
|
| LAN |
- 1 x Realtek RTL8211CL chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots
- 1 x PCI slot
|
| Storage Interface |
Chipset:
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
- Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
|
| USB |
Chipset:
- Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 3 x USB 2.0/1.1 headers
- 1 x parallel port connector
- 1 x clearing CMOS jumper
|
| Back Panel Connectors |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x serial port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
|
| I/O Controller |
- iTE IT8720 chip
|
| H/W Monitoring |
- System voltage detection
- CPU / System temperature detection
- CPU / System fan speed detection
- CPU / System overheating warning
- CPU / System fan fail warning
- CPU fan speed control (Note 4)
|
| BIOS |
- 2 x 16 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
|
| Unique Features |
- Supports @BIOS
- Supports Q-Flash
- Support for Xpress BIOS Rescue
- Supports Download Center
- Supports Xpress Install
- Supports Xpress Recovery2
- Supports EasyTune(Note 5)
- Support for Auto Green
- Support for On/Off Charge
|
| Bundle Software |
- Norton Internet Security (OEM version)
|
| Operating System |
- Support for Microsoft Windows 7/Vista/XP
|
| Form Factor |
- Micro ATX Form Factor; 24.4cm x 20.5cm
|
| Note |
(Note 1) You must install an external graphics card if you want to install Windows XP on your AM3+ CPU-based system.
(Note 2) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model. |
| Remark |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
|
