GS-5000 GSM Remote Terminal Unit (RTU)
| SMS Solutions for Remote Control, Monitoring and Alarming... |
| |
| GS-5000 is a wireless devices design to be used in remote control and monitoring applications. It combines monitoring, controlling and alarming functions into compact wireless devices. |
| |

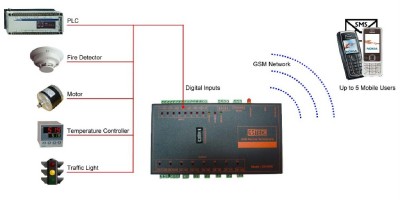

| GS-5000 GSM Remote Terminal Unit (RTU) can be used as a standalone unit or as an integral part of the third party devices and equipment -communicating directly with sensors, devices and other forms of equipment. |
| |
| GS-5000 will report on changes in state and threshold movements, reporting immediate alarms on system faults, failures and change in performance. Alarms can be sent directly to a monitoring center and mobile phone via a SMS text message – which provides maintenance staff and engineers with real-time reporting. |

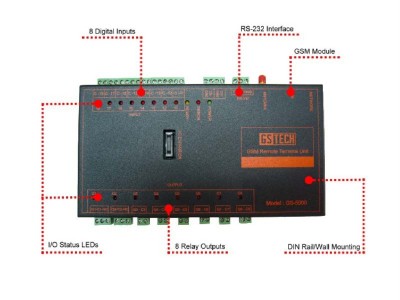

| [Features]: |
- Built-in dual-band Siemens GSM modules with SIM interface
- 8 digital inputs and 8 relay outputs (250VAC/5A)
- Every input/output has LED for state indication
- Automatically sends SMS when input is activated (up to 5 pre-set phone numbers)
- SMS contents can be defined by users
- Support SMS control, monitoring, alarming and programming
- Easy configurable via PC (RS-232 interface) or mobile phone (SMS)
- Metal casing for DIN rails or direct wall mounting
- Flexible, compact and easy to install
|
|
| [Application]: |
- Industrial Automation
- Fire and Security
- Environmental Monitoring
- Energy and Power Management
- Manufacturing Plants
- Water Treatment Plants
- Data Centre
|
|
| [Specification]: |
- Dual-Band GSM 900/1800 MHz
- Power Supply: 12VDC, 2A
- Digital Input: 8, Source Type
- Relay Output: 8, 250VAC/5A
- Operating Temperature: -20°C to +55°C
- Dimension: 220mm x 115mm x 25mm
|
Shipment
- Ready stock.
- Usually shipping in 1~3 days Business days, depend the clear payment..
- Courier by poslaju or skynet or COD in puchong area.
Warranty
- 1 year from date of receipt and technical support.
|
