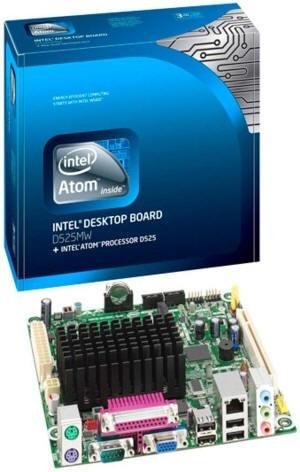

Intel Deskop Motherboard D525MW (Atom D525)

Condition : New         Item at : Malaysia / Penang   , 0 views
Intel Deskop Motherboard D525MW (Atom D525)
Click To Enlarge



Tell Friends

Share


Sale Price / Unit : RM 240.00 (Firm)
Add to Cart
Add to Watchlist (0 users)
Shipping Fee :
Peninsular :RM10
Sabah,Labuan:RM18
Sarawak:RM15
International:RM

Ship To : Within Malaysia
Shipping Method : POS Laju, Parcel Services
Payment Method : Maybank2U, TT / Wire, Cheque, SafeTrade , Others :, cimb, PBB

Time Left : 16 hours (28 May 2012 10:46:00 PM)

Available Qty : 29999
Remove banner from my ads, Click here


Product Description for Intel Deskop Motherboard D525MW (Atom D525)


Intel Deskop Motherboard D525MW (Atom D525)
Feature available to Store Members



Intel D525-MW (Atom D525)

The Intel® Desktop Board D525MW is designed to unleash the power of the new Intel® Atom™ processor D525 which supports the new revolutionary two–chip layout. This new chipset layout reduces the package footprint by 70 percent, enabling easier routing and better heat flow. The Intel® NM10 Express Chipset also provides additional flexibility and upgradability with two slots of single channel DDR3 memory at 1066/800 MHz supporting up to 4GB maximum.

With breakthrough low-power silicon, the Intel Desktop Board D525MW can be used with a passive thermal solution based on the recommended boundary conditions.1

The Intel Desktop Board D525MW represents a fundamental shift in system design—small, yet powerful enough to enable a big Internet experience for all audiences.

Features and configurations



Form factor Mini-ITX/microATX compatible (170mm X 170mm)
AA# ( Altered Assembly) BOX/BLKD525MW: E93082-xxx
BLKD525MWV: E93081-xxx
LAD525MWV: E93080-xxx
BIOS ID string MWPNT10N.86A
Processor Intel® Atom™ processor D525
Memory
  • Single channel DDR3 with two slots for 1066/800 MHz memory support
  • Support for up to 4 GB maximum of system memory
Chipset
Audio

Intel® High Definition Audio2 subsystem in the following configuration:

  • Six channel Intel® High Definition Audio
  • Front panel mic/headphone header (2x5)
LAN support Integrated 10/100/1000 network connection
Peripheral interfaces
  • Up to eight USB 2.0 ports (4 external ports, 2 via headers, 1 USB for PCI Express* Mini Card & 1 USB for flash card/SSD)
  • Two Serial ATA 3.0 Gb/s ports
  • PS/2 ports (Keyboard and Mouse)
  • One Serial Header and One Serial Port
  • One Parallel Port
Expansion capabilities
  • One PCI Conventional bus connector
  • One PCI Express* Mini Card
Video
  • VGA port

For LAD/BLKD525MWV:

  • LVDS connector
Warranty
  • 3-year warranty
  • Standard Warranty Replacement (SWR)
Supported DDR3 Memory

Please visit this website for the full list of supported memory modules:
