MyPBX U510

Item ID : 184191000
MyPBX U510
Sale Price : RM 8,900.00
Shipping :
Peninsular :RM14Sabah, Labuan:RM96Sarawak:RM96
Add to Wishlist (0)
Ship To : Within Malaysia, ship by Courier Services, Self Collect
Weight : (kg or dimension) : 3.40kg
Item at : Kuala Lumpur
Views : 392
Payment Method : Cheque, Internet Banking, Credit Card, Bank Transfer, Cash on Collection (COC)
Available Qty : 29999
General Reminder to All Member

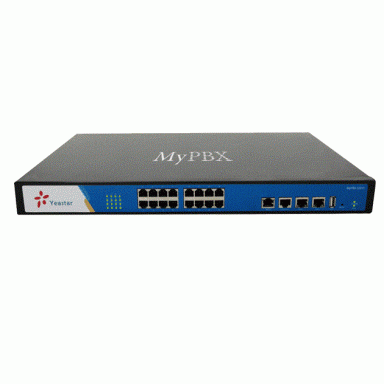

MyPBX U510

MyPBX U510

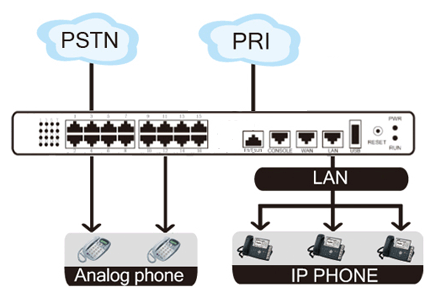

MyPBX U510 is equipped itself with an embedded E1/T1/J1 port and 16 phone ports which enable the various combinations of FXO, FXS, GSM, UMTS, ISDN BRI ports. It supports up to 80 concurrent calls. Perfectly suitable for businesses of 500 users, U510 couples VoIP with traditional telephone lines offered scalability, cost saving, and simplified support and maintenance.



Users: 500
Concurrent Calls: 80
Voicemail:  Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk:  Support 2.5 inch SATA2 (Optional)
Interface: One E1/T1/J1 port (Suport PRI, MFC R2, SS7)
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 BRI Ports
One RS232 Port
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)
Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V  50/60Hz 1.5A MAX
SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261, H263,H263p, H264 ,MPEG4
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS, DHCP Server,OpenVPN
Multiple Languages Support: Chinese, Dutch, English, French, German, Hebrew, Korean, Italian, Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish



  • Attend Transfer
  • Blind Transfer
  • BLF Support
  • Blacklist
  • Callback
  • CDR (Call Detail Records)
  • Call Forward
  • Call Parking
  • Call Recording
  • Call Pickup
  • Call Routing
  • Call Transfer
  • Call Waiting
  • Caller ID
  • Conference
  • Define Office Time
  • DDNS
  • Dial by Name
  • DISA (Direct Inward System Access)
  • DIDs
  • Distinctive Ringtone
  • DND (Do Not Disturb)
  • FAX (T.38)
  • Firewall
  • Follow Me
  • IVR (Interactive Voice Response)
  • Intercom/Zone Intercom
  • Mobility Extension
  • Multi-language Prompt
  • Music On Hold
  • Music On Transfer
  • MyTwins (Double System)
  • One touch record
  • OpenVPN
  • Phone Provisioning
  • PIN User ( PIN Code Control)
  • Paging/Zone Paging
  • PPPoE
  • Queue
  • Redundancy
  • Ring Group
  • Route by Caller ID
  • Skype Integration (Skype Connect)
  • SMS to Mail/Mail to SMS
  • Speed Dial
  • Three Way Calling
  • Voicemail
  • Voicemail to Email
  • Voicemail Forwarding
  • Web Based Control Panel
  • Spy functions (Normal Spy, Whisper Spy, Barge Spy)


Internal Construction
