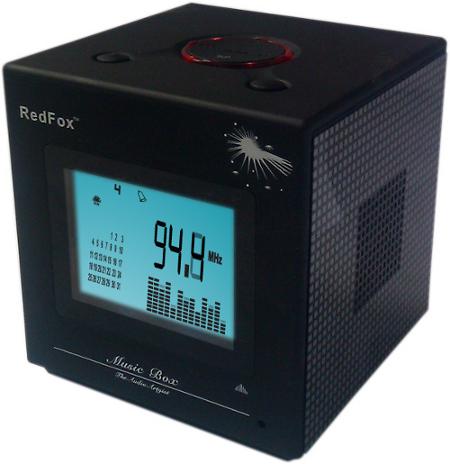

Redfox MP3 WMA FM Clock MusicBOX for Laptop Notebook PC New

Feature available to Store Members

Features

-Support SD/MMC Card and USB flash drive

-Support FM radio

-Support multi-directory

-Support MP3/WMA file format

-Support connect with hand phone, PC, MP3 player, audio player and etc

-2.3” wide screen – support calendar and clock function

-Set alarm with FM channel or USB music

-Digital remote control with key-in FM channel feature and song selection feature

-2” high fidelity magnetically shielded speaker

-Built-in lithium battery, 4 hours play time

-Dimension – 83 X 83 X 89 mm

Specification

-Output – 3.0W x 2

-Impedance – 4 ohms 5W

-Input sensitivity – AUX 450mV / FM 380mV / SD & USB 450mV

-Separation – 55dB

-Machine SNR – 68dB

-Operating voltage – DC 3.7V

-Battery capacity – 1000mA

Accessories

-DC USB cable

-3.5 standard stereo audio cable

-User manual

-Remote control

Set time

Step 1 – Long press [Menu] button to switch to clock mode

Step 2 – Long press [^] button to go into clock setting mode, press [^] to select hour, minute, year, month or day, press [>>|] or [|<<] to edit

Step 3 – Press [Menu] button to save and exit

Set alarm

Step 1 – Long press [Menu] button to switch to clock mode, Long press [v] button to switch to alarm setting mode

Step 2 – Press [^] to select hour or minute, press [>>|] or [|<<] to edit

Step 3 – Press [v] to activate the alarm (you can see the bell icon appear on the screen)

Set alarm with FM channel

Step 1 - After setting alarm, press [Menu] button to switch to FM radio mode

Step 2 – Press [>>|] or [|<<] to select the FM channel which you want to set for alarm

Step 3 - Long press [v] (you can see the number on the upper left corner of the screen blinking)

Set alarm with USB music

Step 1 - After setting alarm, plug-in USB flash drive and press [Menu] button to switch to USB mode

Step 2 – Press [>>|] or [|<<] to select the song which you want to set for alarm

Step 3 - Long press [v] (you can see the number on the upper left corner of the screen blinking)
