RedTech Sulux616 Laser Bar Code Scanner ~ 3mil scanning

Click To Enlarge

RedTech Sulux616 Laser scanner ~ USB port - 3mil Scanning ~ 1 year Warranty

Come with scanning Stand  / 1 year Warranty  /  READY STOCK

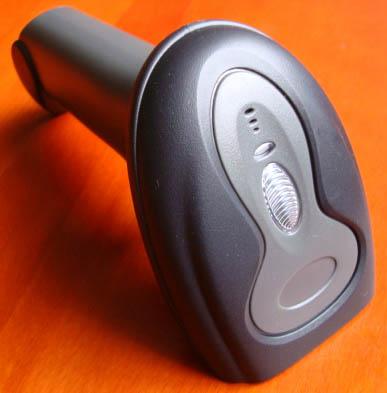

RedTech Sulux616 Laser scanner

v     Our new model. Fast speed reading ,elegant design and comfortable handfeeling.

v     Read all of 1D barcodes,with CE and ISO certificate.

v     Button performance is really very good.

v     Antiknock design: withstand 1.5M drops

v     Full quakeproof and antiknock design

v     Error rate less than 1/5 million

v     Service life of button reaches up to 50 million times

v     Supporting the RS232,PS2 and USB interface

v     Very comfortable operation sense

v     Full independent intellectual property rights

v     ( having been award with multiple national patents)

v      Suit with each kind of charge machine

v     Scan type ： manual

v     Plug-and-Play   Material : ABS+PC

v      Two color : white and black (optional)

PERFORMANCE PARAMETER

v     Shock                            Designed to withstand 1.5M drops

v     Light Source                  Visible Laser Diode 650nm

v     Scan Pattern                  Single Scan

v     Scan Rate                      100 times/second

v     Scan Precision               0.10mm(pcs0.9)

v     Scan Width                    30mm@scan window, 220mm@200mm

v     Scan Depth of field          0-250mm (0.33mm pos0.9)

v     Decode Capability           EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128,       Codaber, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI,                            Chinese postcode etc.

v     Tilt                                   30°C

v     Elevation Angle               65°C

v     Deflection Angle              55°C

v     Support Inferface             USB

v     Print Contrast                  30% UPC/EAN 100%

v     Mention Pattern              Buzzer, Indicator

v     Scan Mode                     Manual

v     PHYSICAL PARAMETER

v     Size                                   LxWxH: 95mmx70mmx160mm

v     Weight                              128g

v     Material                            ABS + PC

v     POWER

v     Voltage                             5Volts

v     Operating Current            85mA

v     Static Current                  36mA

v     Laser Class                     Meet the Grade II National Criteria for Laser Safety

v     EMC                                CE & FCC DOC compliance

v     ENVIRONMENTAL

v     Operating Temperature     0°C to  45°C

v     Storage Temperature         -20°C to  60°C

v     Humidity                             5% to 85% relative humidity, non-condensing

v     Light Levels                        Daylight, 5000Lux
