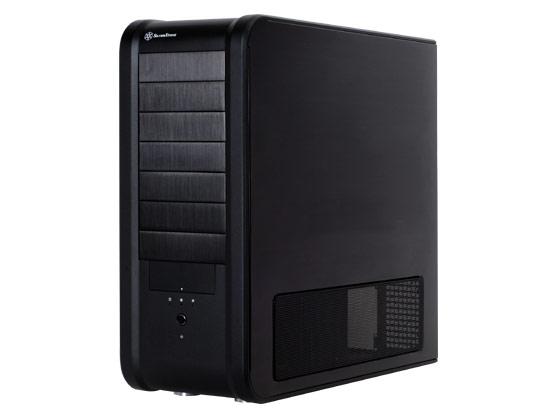

EXTERIOR PICTURES
|
|
|
|
|
|
|
|
INTRODUCTION
With a rich history in building full-size all aluminum tower cases dating back to 1999, SilverStone's talented R&D team created yet another benchmark in a class it created. The TJ07 is a culmination of years of experience as it fuses the latest in manufacturing process, thermal concept, ergonomic design, and attractive aesthetics.
The main structure for the TJ07 is crafted from a solid extruded aluminum panel measuring more than 164cm (5.3 feet) in length and 4mm to 8mm in thickness. Using a process never before seen in PC cases, the panel was then arched precisely on two sides with automotive-caliber press machines to create the top, front, and bottom sides of the chassis. The end result is an aluminum chassis frame with more than twice the structural rigidity over average steel cases, helping to practically eliminate vibration-induced noise. Thanks to this process, SilverStone engineers was freed to place more large fans at strategic positions to significantly improve cooling while keeping noise to a minimum.
A new ergonomic layout was also designed with experiences learned from previous Temjin cases so installation is incredibly simple without any obstructions for users of all levels and components. For advanced enthusiasts, the TJ07's simplistic approach with minimal use of rivets will also prove to be a delight because it provides plenty of easily accessible spaces for additional equipments or modifications. To complement the excellent functionality, SilverStone designers added subtle details in surface finish and structural tweaks learned from building home theater PC cases to enhance the look of the already powerful one piece frame. The TJ07 is truly as impressive to see in person as it appears on paper, the way a flagship tower case should be.
|
|
|
|
SPECIAL FEATURES
-
-
Next generation flagship tower case
-
Unprecedented uni-body frame constructed with automotive machinery
-
Premium all-aluminum chassis with capacity up to extended ATX, SSI
-
Exceptional cooling potential with calculated airflow design
-
User friendly layout with tool-less access
-
Minimal use of rivets for maximum serviceability
FEATURE PHOTOS
|
|
|
|
|
|
|
|
Dual 92mm rear intake fans included
Dual 120mm top panel exhaust fans included
Industry’s first all aluminum unibody frame for PC chassis
Slide-out motherboard tray for Extended-ATX/SSI-EEB motherboards
Seven open 5.25” drive bay space
Rivet-free construction for maximum serviceability and modding
Flip-down door for external 3.5” drive bay (FP32 included)
Dual ATX/PS2 PSU compartment, also compatible with redundant PS2
Dual hard drive cages with built-in 120mm fans and six 3.5” drive capacity
|
|
|
Model No.
|
SST-TJ07B (black) |
|
|
|
|
|
|
|
Material
|
4.0mm ~ 8.0mm uni-body aluminum outer frame, 2.0mm aluminum body |
|
Motherboard
|
SSI, Extended ATX, ATX, Micro ATX |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
5.25" x 7 |
|
3.5" x 1 (occupied by front I/O) |
|
Internal |
3.5" x 6 |
|
Cooling System
|
Front |
-- |
|
Rear |
2 x 92mm intake fans, 2100rpm, 23dBA |
|
Side |
2 x 120mm HDD intake fans, 1200rpm, 21dBA |
|
Top |
2 x 120mm exhaust fan, 1200rpm, 21dBA |
|
Bottom |
-- |
|
Internal |
-- |
|
Expansion Slot
|
7 |
|
Front I/O Port
|
USB2.0 x 4
IEEE1394 x 1
Audio x 1
MIC x 1 |
|
Power Supply
|
2 x Optional standard PS2 (ATX) or 1 x Redundant PS2 |
|
Operating system support
|
-- |
|
Expansion Card
|
-- |
|
Limitation of CPU cooler
|
-- |
|
Limitation of PSU
|
-- |
|
Net Weight
|
12.9 kg |
|
Dimension
|
220 mm (W) x 560 mm (H) x 565 mm (D) |
|
Extra
|
-- |
 |
When it comes to full tower cases, they come in a great variety of shapes, sizes, colors, and qualities. Although the SilverStone TJ07 might not exactly be a new case on the market, coming in at over 5 years old, it still supposedly holds its ground ve...
|
 |
85%
|
|
|
|
|
 |
The Silverstone Temjin TJ07 is not only built like a tank, it costs as much as well. Quality comes at a price and the TJ07 is worth every penny. The single-piece front made of thick aluminum coupled with a very solid interior layout make this case heav...
|
 |
91%
|
|
|
|
|
 |
Video Review: n/a
|
 |
-
|
|
|
|
|
 |
I have wanted a SilverStone TJ07 ever since Maximum PC used one for their Dream Machine a few years ago. The elegance, the beauty, the curves – it’s just a beautiful looking Case. Today 3DXtreme is getting the opportunity to take a look at the SilverS...
|
 |
90%
|
|
|
|
|
 |
While its certainly not the newest, the TJ07 is amongst the best chassis from Silverstone and has won many accolades from them. Today, we find out what is so special about this particular chassis. The TJ07 I received is silver in color with no side wi...
|
 |
-
|
|
|
|
|
 |
Sleek clean lines, unmarred by the massive cooling system hidden within, are the hallmark of this chassis. Ease of access and assembly adds to its mystique. Throw in that it comes as part of a custom system of your choosing and you have all the making...
|
|
-
|
|
|
|
|
 |
Date 2006-07-07Provider: SilverstonetekAuthor: BigManEditor: Princess AmmieSilverstone Tj07 case reviewToday its time for us to take a look at a case again and this time we really have something special for you as we are going to review Silverstone Tj...
|
 |
100%
|
|
|
|
|
 |
SilverStones new all-aluminum flagship case is a huge, ambitious model that features a unique, amazingly heavy uni-body construction and split thermal chambers. The power supply and hard drives are in a separate chamber at the bottom, and all componen...
|
|
-
|
|
|
|
|
 |
Silverstone has quickly made a name for themselves as one of the highest quality computer case manufacturers. In their relatively short existence, they have built some of the best cases in both the PC and HTPC markets, rivaling the quality, constructio...
|
|
75%
|
|
|
|
|
 |
Our history with the TJ07 spans back to its predecessor, the TJ03, which itself housed the components of our 2004 Dream Machine. We had few complaints with the TJ03 back then, but we’re thrilled to report that the TJ07 surpasses its predecessor in ever...
|
|
-
|
