Product ID : 220057146
Model / SKU : CW-HEXT-100
Conditions : New
|
This is the complete solution to solve the image mosaic, color distortion, transmission failure and other problems when HDMI signal long distance transmitted. It's the professional signal transmission system which combines the function of HDMI signal conversion, reception and reduction and designed for high quality HDMI video signallong-range extension of display system project, such as Big screen curtain wall advertising project, Industrial automatic control, Armamentarium, CCTV, Multimedia instruction and so on.

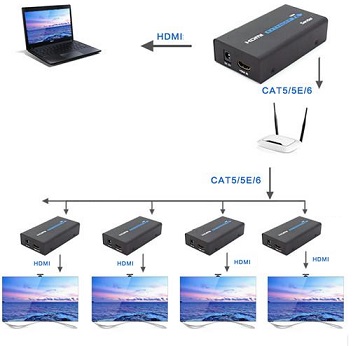

Reliable HDMI network extension technology that converts HDMI signal to standard network signal to transfer long distance at 100m. Also able to achieve HDMI extender + splitter function, you can connect 1pcs transmitter + Npcs Receiver.
Suitable for Application:
-
LCD and plasma flat panel multimedia advertising project
-
Big screen LED curtain wall display project
-
The large projection equipment display system
-
The industrial automation and control system
-
Audio/Video meeting system
-
Medical monitoring systemSecurity monitoring system
-
Multimedia network education systemLong-distance network server monitoring
-
Central control systemMilitary exercises command system
Features:
-
Extend HDMI up to 100m for 1080p over LAN Cat5e, cable requirement are as follow:
-
CAT5 Max 80m between 2 devices
-
CAT5e Max 100m between 2 devices
-
CAT6 Max 120m between 2 devices
-
Support full standard HDMI specification
-
Supports all HDMI features including full HD 1080p, deep color, lip sync and CEC.
-
Supports all high resolution multichannel audio formats including Dolby Digital Plus, 7.1 LPCM, Dolby TrueHD and DTS Master Audio.
-
Input port HDMI£º480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
-
Output portHDMI: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080p@50/60Hz
-
The video color format supported: 24bit/Deep color 30bit/ deep color 36bit
-
Audio format supported:DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
-
Transmission rate supported:10.2Gbps
-
Suitable to connect the HDMI output devices (such as HD camera, Blu ray) to the HDMI display by using cat 5e/6 cable for long distances instead of expensive HDMI cable
-
100Powered by : 5V Power Adapter (included)
-

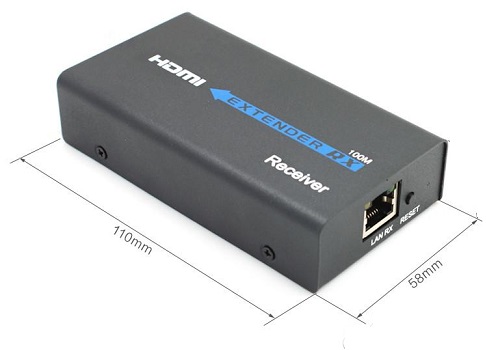

Approx Size : 110(D) x 58(W) x 26(H)mm
-
Color : Black
Package Contents:
-
1 x HDMI Extender Tx
-
1 x HDMI Extender Rx
-
2 X Power Supply Adapter
-
1 x Manual
(Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
