18650 battery capacity tester ( VERSION 2014 )

Our Price
RM 99.00
Shipping
From KL ,BATU 5 ,JALAN IPOH / Kuala Lumpur , Estimated Arrival 1-3 working days.
Please select option below

X

ItemID
148069462
Ship To
Within Malaysia ,Ship By: Courier Services,Self Collect,Others :,1~2 DAYS
Views
1052
Available Quantity
3
Time Left
Closed
This item has ended
Seller Information
bee
Store since 03 Mar 2001

Feedback Score
: 608+
Positive Feedback
: 99.67%
Total Product
: 1548
NetPay
Buyer Protection Program
Payments are covered by BPP (Learn More)
Item Specification
  • Report
  • Model / SKU :
    Conditions : New

    Product Description


    18650 battery capacity tester ( VERSION 2014 )







    18650 battery capacity tester ( VERSION 2014 )



    Quick Start instructions (factory default state):

    1 .. will be tested fully charged battery (rechargeable Po) positive and negative terminals are connected to the blue BAT + and BAT-, cable try tubby! Tester pass to 12V DC working voltage (microUSB models using a 5V power supply ), the tester power display discharge current.


    2 Press the S - or S + + button to change the setting in the 0.1-2.6A current range, the current pressing the appropriate button to start clicking SK tests (such as failure code Err * Please check back content), the tester is able to intelligently Select the battery type and set the termination voltage, after the start of the test "RUN" indicator lights, digital display values ​​from the capacity Ah, energy Wh, Wheel significantly between the voltage V and current A. When the test is completed, the digital value to stay in Ah rapid blink with sound alert, "RUN" indicator goes off.

    (3) Upon completion might press the "SK" button allows the tester to stop flashing alarm, you can also press the S - or S + + button to switch to see the battery capacity Ah, Wh energy and discharge voltage V, when pressed again "SK "button, the tester is set to return to power on the current state of the operation can be repeated until the next section battery test.

    Note: You must be a key operation alarm status when testing is complete, the backup data will be cleared, if not the key operation, the result will always save a backup, even if it is not cleared off the power!

    Novice description: market all Battery Capacity Tester (Discharge capacity tester), are the first to complete the process of discharge of the battery measured by simulation, so the detection time will be longer, not, as some imagine, as a novice Two pen touches to the battery, the battery capacity can be reported out. For now, no such international technology and equipment.



    Error code Err * meaning and approach:

    Err1: battery voltage is too high, make sure the battery voltage is lower than before the test 8.5V.

    Err2: battery voltage is too low (below the set termination voltage value), make sure the battery voltage and reset, if the battery is connected in reverse, and four-wire mode voltage measurement is not connected or the reverse also appears Err2.

    Err3: battery discharge current setting does not support or resistance line too much, use a smaller current test battery, and to ensure that the battery circuit lines thick, short, good contact between the electrodes.

    Err4: power tube is damaged, the problem generally occurs after performing renovation, replaceable power management, alternative models P75NF75 so on.

    Err5: beyond the test power limit, the state only when the power limit function is activated (LPon) may appear under set conditions on behalf of the discharge power over protection measures 12W, the tester to prevent overheating of the heat taken! Users can transform (increase or install the radiator fan), and enter the function setting menu to close the power limit (LPoF), you can use more than 12W power themselves.

    Err6: Power supply voltage is out of range, when the supply voltage is below 11V or above 14V, the tester power process will display the error code, replace the power supply voltage is appropriate to use! !

    Note: When the display Err1-Err5, press any key to return to the initial state.

    Full-featured detailed instructions:

    First, the test operation:

    1 must be tested battery charger is fully charged.

    2 will be tested battery positive and negative input terminals are connected to a battery of "BAT +" and "BAT-", to ensure reliable connection, wiring stubby! If a four-wire test mode is enabled, while the line voltage test fixture BV port to connect the positive and negative "+", "-." Through the power supply to the tester 12V (microUSB shall pass 5V power supply), the tester enters the normal start current setting state, digital display set current (such as 1.00A), press "S + +" or "S -" to adjust the setting current (long press the button to quickly increase or decrease), after appropriate adjustments press "SK" button.

    3 automatic identification mode (factory default to this mode): tester automatically identifies the type of battery to be tested, and choose the best termination voltage and discharge mode, display two seconds after the termination voltage into the test procedures.

    3 Manual termination voltage setting mode: In this mode you need to manually set the termination voltage, press the "S + +", "S -" buttons to change the battery termination voltage (long press the button to quickly increase or decrease in numbers), where P *. * u represents the continuous current test mode, b *. * u classic intermittent current test mode (mainly for line resistance offset the effects of the test battery for 2 lines), for example P4.5u represents the continuous current test, the termination voltage 4.5V. The setting range is b1.0u-b6.0u and P1.0u-P6.0u, pay attention when you turn four-wire test, does not support the intermittent current test mode! After setting the termination voltage, press "SK" button to start the test.

    4. The early testers will be conducted during the test circuit and battery diagnosis, if the line is inappropriate or battery tester will not be tested, display diagnostic trouble codes Err * (the specific meaning of the code and see approach described earlier). After the diagnosis will enter through normal testing session, RUN lamp is lit, the tester starts normal discharge test, the digital will be two seconds Ah, 1 秒 Wh, 1 seconds Battery voltage, one second of time and sequence of the discharge current round of significant value, Unit indicator will synchronize changes. When the battery test is completed, RUN lamp goes out, the digital display will remain in the Ah value and rapid blinking, also issued a short buzzer alarm sound (buzzer is turned on).

    5 After the test is complete press about "SK" button to stop flashing and the alarm, press "S + +" or "S -" buttons are available in three basic battery test results: The battery capacity (Ah), battery energy Capacity (Wh) and the battery voltage discharge process platform (uniform pressure), again pressing "SK" button will clear the current display settings back to the original state.

    Second, the test instrument operating parameters setting:

    Press and hold the "SK" keys simultaneously to pass 12V Power Supply Tester tester into the working parameter setting state, press "S + +" or "S -" to modify the parameters, press the "SK" button to proceed to the next one, you can Calvary parameters set in the following order:

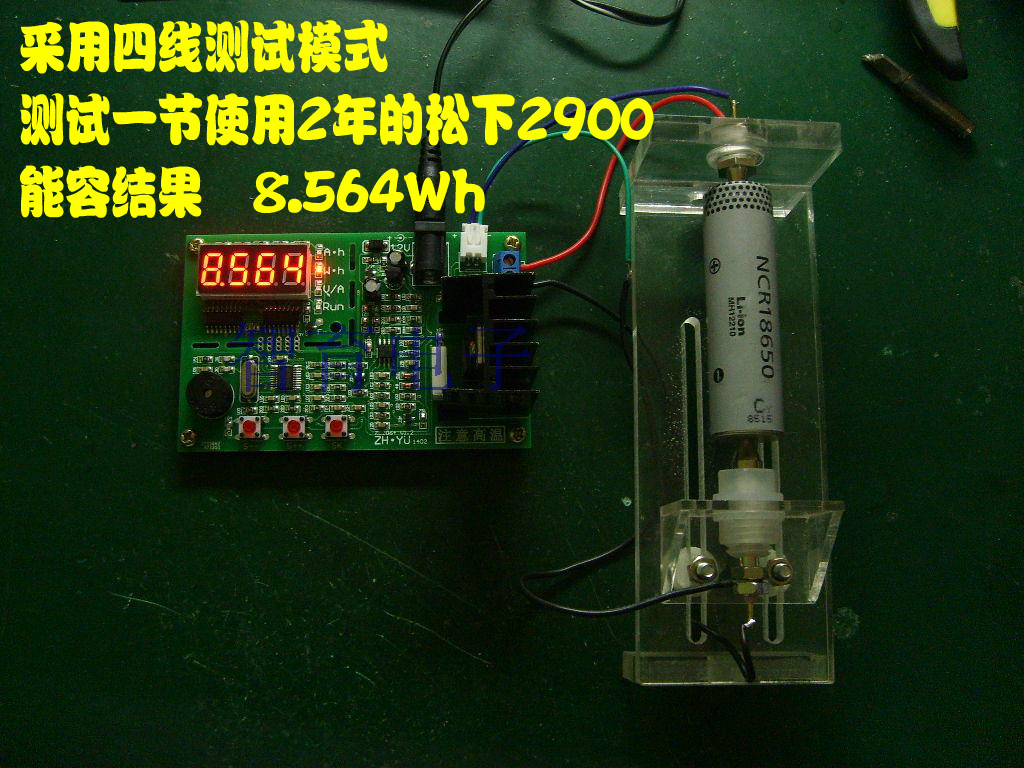

    1. "LJ 2" using a second-tier test (factory setting), "LJ 4" using a four-wire mode.

    2. "Auon" battery automatic recognition feature is turned on (factory setting), "AuoF" battery automatic recognition feature is turned off, after turning off the need to manually set the termination voltage.

    3. "BEon" beeper on (factory setting), "bEoF" buzzer off.

    4. "LPon" power limit open (factory setting), "LPoF" power limit off. Warning: Turn off the power limit can make more than 12W power discharge is allowed, but must be strengthened heat before use, otherwise the power tube may be burned!

    . 5 "SF00" "SF01" .......... "SF10", turn on the fan control power values: values ​​represent two behind when the discharge power exceeds this value (in W), fan control switch will open, "SF00" Just start discharging representatives, fan control opens.

    Section 5 is set after the completion of the project by pressing "SK" button, the tester will save all configuration parameters and restart into normal working condition.

    Third, on the parameters, the results are automatically saved and backed up:

    1 set of each current and termination voltage (automatic mode shuts down) and start a test, the current and termination voltage parameters are automatically saved, the next time you use the default value when the last set.

    (2) When the tester in the discharge process, if the power supply 12V power outage, the tester will automatically save the current set values, work status and test results, re-12V power supply is turned on, the tester will automatically recover the discharge process.

    When 3 in beta tester flash alarm status is completed, the test results will be prior backup to prevent the loss before reading, if not the key operation, even re-energized the tester does not exit this state! Perform any key operation, we think the value has been read, backup storage will be cleared, press "SK" button again, or after the second re-power, to return to the initial current setting status.

    Above 2.3 can not be guaranteed once the testing process midway blackouts! However, when testing mobile power, mobile power at no load because the time will automatically shut down, it will enter an alarm condition after the completion of the tester power on again, if you need to continue to test, record the results of their own current and once again test, the final result is superimposed on their own .

    Fourth, the testing process to quit midway or modify current:

    Discharge testing process, you can press the "S -" button to exit the test and clear results, if necessary mid-course correction or termination voltage discharge current, you can press the "S + +" button to exit the test, but the results are not clear, set After pressing the "SK" button to continue testing.

    Fifth, how to use the fan:

    Tester with extended fan control function, the negative 12V small fan connected to the bottom right of possession of a digital mark "F-" pad above the fan is connected to the positive power supply positive working above 12V to enable fan control, the control parameters See the previous set, "two." If you are using microUSB models, due to the current limited interface board, fan use 5V fan, its positive welded to the front end of a USB interface board small rectangular pad (5V +) above.



    Sixth, how they calibrate the tester operating parameters:

    While holding down the "S -" "S + +" the case to the board power after power immediately began sounding the buzzer, the buzzer sounding period (within 5 seconds), release the "S -" and "S + +" and immediately press about "SK" button, the tester enters the calibration mode, the digital tube display J1.0u. The battery voltage input terminal and four-wire input BV positive and negative terminals simultaneously access 1.00V DC standard voltage (note polarity), press "SK" button tester 1V benchmark record, display J5.0u after completion. Same as above J1.0u access connection when the same standard voltage 5.00V, then press about "SK" button tester 5.0V benchmark record, display J0.1A after completion. 4-5V power supply with an ammeter in series with the battery test access to the input terminal, press "S + +" or "S -" fine tuning change current (continuous hold to quickly adjust), when the current is adjusted to 0.100A, Press the "SK" button to confirm and enter the J2.6A (2.6A) calibration mode, repeat the above action will be adjusted to the current 2.600A (due to the effects of temperature and fluttering in the current work may have a little change, it is recommended to adjust to 2.603-2.605 A), after the completion of the press again "SK" button to confirm the calibration is complete! Tester at 2-second intervals display six calibration parameter storage, display calibration mode to enter the main exit procedures.

    Technical parameters:

    Power supply voltage: 12V Standard Edition DC12V (DC11-14V) microUSB paragraph DC3-5.5V

    Current: 12V Standard Edition does not exceed 35mA microUSB of approximately 70mA (5.0V pm)

    Maximum battery input voltage: 8.5V

    Discharge current maximum error: 1% +2 mA

    Maximum voltage measurement error: 1%-3D

    The maximum overall measurement error :0.1-0 .2 A 2.5% ,0.3-0 .5 A 1.6% ,0.6-1 .0 A 1.2%, 1.1A-2.6A 1%.

    Board size (excluding copper feet): 97mm * 62mm * 38mm

    Weight (copper feet): 47g



    快速上手说明(出厂默认状态下):

    1..将充满电的被测试电池(充电宝)正负极分别连接到蓝色端子的BAT+和BAT-,连接线尽量短粗!给测试仪通直流12V工作电压(microUSB款使用5V电源),测试仪开机显示放电电流。


    2.按动S--或者S++按键可以在0.1-2.6A范围内更改设定电流,电流合适后按动一下SK按键开始测试(如出现故障代码Err*请查阅后面内容),测试仪能够智能选择电池类型并制定终止电压,开始测试后“RUN”指示灯点亮,数码管显示数值会从容量Ah、能量Wh、电压V以及电流A之间轮显。当测试完毕后,数码管停留在Ah数值快速闪烁同时带有声音提醒,“RUN”指示灯熄灭。

    3.完成后可以按动一下“SK”按键让测试仪停止闪烁报警,还可以按动S--或者S++按键切换查看电池的容量Ah,能量Wh以及放电平台电压V,当再次按下“SK”按键,测试仪退回到开机电流设定状态,即可重复之前操作进行下一节电池测试。

    注意:测试完毕报警状态时必须进行一次按键操作,备份数据才会被清除,如果不进行按键操作,备份结果会始终保存,即使是切断电源也不会清除!

    对新手的说明:市面上的所有电池容量测试仪(放电式容量测试仪),均是通过模拟一次对电池的完整放电过程来测量的,因此检测时间会较长,并非像有些新手想像的那样,两个表笔往电池上碰一下,就能报出来电池的容量。就目前来看,国际范围还没有这种技术和设备。



    错误代码Err*含义及处理办法:

    Err1:电池电压过高,请确认电池测试前电压低于8.5V。

    Err2:电池电压过低(低于设定终止电压值),请确认电池电压并重新设置,如果电池接反以及四线模式电压测量没有连接或者接反也是出现Err2 。

    Err3:电池不支持设定的放电电流或者线路内阻太大,请使用更小电流测试电池,并保证电池线路线粗、短,电极之间接触良好。

    Err4:功率管损坏,该问题一般发生于不良改造之后,可自行更换功率管,代用型号有P75NF75等。

    Err5:超出测试功率限制,该状态只在功率限制功能开启时(LPon)可能出现,代表设定条件下放电功率超过12W,测试仪为防止散热过热而采取的保护措施!用户可自行进行改造(加大散热器或者安装风扇),并且进入功能设定菜单关闭功率限制(LPoF),即可超过12W功率使用。

    Err6:电源电压超出范围,当电源电压低于11V或者高于14V时,测试仪上电过程就会显示该错误代码,请更换电压合适的电源使用!!

    注:当显示Err1-Err5时,按动任意键即可回到初始状态。

    全功能详细使用说明:

    一、测试操作:

    1.被测试电池必须先用充电器充满电。

    2.将被测试电池正极和负极分别连接至电池输入端子的“BAT+”及“BAT-”,要确保连接可靠,接线粗短!如果启用了四线测试模式,请同时将夹具的电压测试线正负极连接BV端口的“+”、“-”。给测试仪通工作电源12V(microUSB款通5V电源),测试仪正常启动后进入电流设定状态,数码管显示设定电流(例如1.00A),按动“S++”或者“S--”来调整设定电流(长时间按住按键可以快速增减),调整合适后按动“SK”按键。

    3.自动识别模式(出厂默认为此模式):测试仪自动识别被测试电池类型,并选择最佳终止电压及放电模式,显示2秒终止电压后进入测试工作程序。

    3. 手动终止电压设定模式:此模式下需要手动设定终止电压,按动“S++”、“S--”按键改变电池终止电压(长时间按住按键可以快速增减数字),其中P*.*u代表连续电流测试模式,b*.*u为经典的间歇电流测试模式(主要用于2线下测试电池时抵消线路电阻影响),例如P4.5u则代表连续电流测试,终止电压4.5V。设定范围为b1.0u-b6.0u以及P1.0u-P6.0u,注意当开启四线测试时,不支持间歇电流测试模式!设定好终止电压后,按动“SK”按键开始测试。

    4.测试过程初期测试仪会进行线路及电池诊断,如果线路或者电池不合适,测试仪将不进行测试,显示诊断故障代码Err*(具体代码含义以及处理方法详见前面介绍)。诊断通过后会进入正常测试环节,RUN灯点亮,测试仪开始正常放电测试,数码管会以2秒A.h,1秒W.h,1秒电池电压,1秒放电电流的时间和顺序轮显数值,单位指示灯会同步变化。当电池测试完毕,RUN灯就会熄灭,数码管显示会停留在A.h数值并且快速闪烁,蜂鸣器也同时发出短促报警声(蜂鸣器开启时)。

    5.测试完毕后按动一下“SK”按键即可停止闪烁以及报警,按动“S++”或者“S--”按键可查阅电池测试的三个基本结果:电池电量容量(Ah)、电池能量容量(Wh)以及电池放电过程平台电压(匀压),再次按动“SK”按键将会清除显示回到最初电流设定状态。

    二、测试仪工作参数设定:

    按住“SK”按键同时给测试仪通12V工作电源,测试仪进入工作参数设定状态,按动“S++”或者“S--”修改参数,按动“SK”按键进入下一条,你可以按照以下顺序设定各各参数:

    1. “LJ 2”使用二线测试(出厂设置),“LJ 4”使用四线模式。

    2.“Auon”电池自动识别功能开启(出厂设置),“AuoF”电池自动识别功能关闭,关闭后终止电压需要手动设定。

    3.“bEon”蜂鸣器开启(出厂设置),“bEoF”蜂鸣器关闭。

    4.“LPon”功率限制开启(出厂设置),“LPoF”功率限制关闭。警告:关闭功率限制可以使得超过12W功率的放电被允许,但是使用前必须加强散热,否则功率管可能会被烧毁!

    5.“SF00”“SF01”..........“SF10”,风扇控制开启功率值:后面两位数值代表当放电功率超过此数值(单位W)时,风扇控制开关就会开启,“SF00”代表只要开始放电,风扇控制就会开启。

    第5个设定项目完成后按动“SK”按键,测试仪便会保存所有设定参数并重启进入正常工作状态。

    三、关于参数、结果的自动保存及备份:

    1.每次设定电流和终止电压(自动模式关闭下)并开始一次测试时,电流和终止电压参数都会被自动保存,下一次使用时候默认为上次设定的值。

    2.当测试仪处于放电过程中,如果12V工作电源突然断电,测试仪会自动保存当前设定数值、工作状态以及测试结果,重新接通12V电源后,测试仪会自动复原放电过程。

    3.测试仪处于测试完毕的快闪报警状态时,测试结果会被事先备份已防止未读取前丢失,如果不进行按键操作,即使是重新通电测试仪也不会退出此状态!进行任何按键操作后,认为数值已经读取,备份存储就会被清除,次后再次按动“SK”按键或者重新上电,即可回到初始电流设定状态。

    以上2.3条可以保证一次测试过程不会受到中途停电影响!但是在测试移动电源时,由于移动电源在没有负载时候会自动关闭,测试仪重新上电后就会进入完成报警状态,如果需要继续测试,请自行记录当前结果并重新一次测试,最终结果自行叠加。

    四、测试过程中途退出或者中途修改电流:

    放电测试过程进行时,可以按动“S--”按键退出测试并清零结果,如果需要中途修改放电电流或者终止电压,则可以按动“S++”按键退出测试但不清除结果,设定好之后按动“SK”按键继续测试。

    五、如何使用风扇:

    测试仪带有扩展风扇控制功能,将12V小风扇的负极连接到数码管右下角有一个标记“F-”的焊盘上面,风扇正极连接到12V工作电源正极上面即可启用风扇控制,控制参数设定详见前面“二”。如果使用的microUSB款,由于接口板电流有限,风扇请使用5V风扇,其正极焊接到USB接口板前端的一个长方形小焊盘(5V+)上面。



    六、如何自己校准测试仪运行参量:

    同时按住“S--”“S++”情况下给板子上电,上电后蜂鸣器立刻开始长鸣,在蜂鸣器长鸣期间(5秒内),松开“S--”和“S++”并立刻按动一下“SK”键,测试仪进入校准模式,数码管显示J1.0u 。给电池输入端子以及四线电压输入BV端子的正负极同时接入1.00V直流标准电压(注意极性),按动“SK”按键,测试仪进行1V基准记录,完成后显示J5.0u 。同上面J1.0u时相同的接法接入5.00V标准电压,然后按动一下“SK”按键,测试仪进行5.0V基准记录,完成后显示J0.1A。用4-5V电源串联一个电流表后接入到电池测试输入端子上,按动“S++”或者“S--”微调增减电流(连续按住可以快速调整),把电流调整到0.100A时,按动“SK”按键确认,进入到J2.6A(2.6A)校准模式,重复以上动作将电流调整到2.600A(由于受到温飘飘影响工作中电流可能有少许变化,建议调整到2.603-2.605A),完成后再次按动“SK”按键确认校准完成!测试仪会以2秒间隔显示6个校准存储参数,显示退出校准模式进入主工作程序。

    技术参数:

    电源电压:12V标准版DC12V  (DC11-14V)  microUSB款DC3-5.5V

    工作电流:12V标准版不超过35mA     microUSB款 约70mA(5.0V时)

    最高电池输入端电压:8.5V

    放电电流最大误差:1%+2mA

    电压测量最大误差:1%-3D

    总体测量结果最大误差:0.1-0.2A 2.5%,0.3-0.5A 1.6%,0.6-1.0A 1.2%,1.1A-2.6A 1%。

    电路板尺寸(不含铜脚):97mm*62mm*38mm

    重量(含铜脚):47g





    使用常见问题:

    1:我测试18650锂电池,选择1A,应该说放电终止后的电池电压为3V,为何我测得终止后电池电压有3.8V?

    此现象称为电池电压回升,因为在选定1A电流将电池放电到3V以下,测试仪终止放电,此时电池并没有完全放干净,还有部分残余容量,只是这部分电量已经不能在1A电流下长时间维持电池电压大于3V,如在测试仪两端并联一个电压表,再进行一次测试,当电池加载电流后,便会看到电压迅速下降!

       小贴士:同样种类电池,在同样设定的放电模式下,终止后电池电压回升越低的越好,这代表电池可以放出的容量更接近内部化学容量,全新优质的18650电池,用1A-(锂聚合物)放电完毕后电池电压回升至3.2-3.4V,而劣质的18650电池往往会回升到3.7V,报废的笔记本电池拆出来的电池,甚至会回升至4.0V!

    2:我用同一节电池,用一个充电器充电,又选择同样的放电模式,但是两次结果不一样,有时甚至差异很大,这是怎么回事???

    电池单次放电过程的有效容量除了和终止电压以及电流有关外,还与充电条件、储存时间、放电过程温度以及电池活化程度等很多因素有关,就拿温度而言,将同样的18650电池,充好电后在25摄氏度以及0摄氏度下用相同模式放电,其结果就会有很大差异,尤其是旧的18650电池,差异甚至会高达2-5倍之多!

    3:我用测试仪2A电流测试手机电池,为什么只测出几mAh容量就终止了?

    非智能机电池一般只支持0.6-1A放电电流,大屏智能机电池可支持1.5-2.0A电流,如果放电电流过大会导致电池保护板过流保护,所以在测试手机电池时,非智能机请选择0.5A以下的电流测试,大屏智能机根据情况选择0.5-1.5A电流放电即可。

    4.为何别人的测试仪就有内阻测试功能而你家的测试仪没有?

    电池内阻测试需要用到交流电流,在充电电池国际标准中推荐的测试方法为施加1KHz正弦波电流并取样电极上面的交流电压测量,完成该测试的硬件很复杂而且成本是比较高的。某些测试仪采取对电池施加直流电流测试电池电压变化的方法来计算内阻,因直流电流会导致电池出现极化,该方法得到的“内阻”和实际内阻相差很大!由于大多玩家并不明白电池内阻的实际测量要求,所以很容易受到欺骗……  智育电子不会通过制造伪概念欺骗用户,所以该测试仪没有设计“假内阻”测试功能!
