    Product ID : 215700607
    Model / SKU : SH-HMS24-J
    Conditions : New


    4K x 2K Matrix HDMI 2X4 Switch Splitter 3D

    4K x 2K Matrix HDMI 2X4 Switch Splitter 3D


    4K x 2K Matrix HDMI 2X4 Switch Splitter 3D


    4K x 2K Matrix HDMI 2X4 Switch Splitter 3D

    4K x 2K Matrix HDMI 2X4 Switch Splitter 3D is an economical in price and great simple switching splitter, and amplifying your HDMI signal. It splits HDMI signal to four HDTV or projectors and switching between two input source device and send the signal simultaneously to four displays. No setup or special configuration is required, simply connecting the input device and output device. Features a sturdy, shielded metal box and a user friendly switch. All connector pins are fully populated and wired straight through.

    Features:

    • With built-in automatical adjusting amplifier, it can regenerate the HDMI signal before sending it to the outputs by a longer HDMI cable.
    • When HDMI cable connects with HDMI output, the 2x4 switch/splitter can amplify the HDMI signal; supporting highest video resolution 1080p/60Hz, HDMI1.4a, 3D.4K X 2K
    • Switches between two input source devices and send the signal simultaneously to 4 displays (The 4 display show the same piture at the same time).
    • This HDMI selector supports single high definition display for multiple sources, such as DVD Players and Stellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes

    Specification:

    • HDMI version: HDMI 1.4b
    • HDMI resolution: Up to 4096*2160/30Hz
    • Support video format: 8/10/12 bit deep color
    • Support audio format: DTS-HD/ Dolby-trueHD/ LPCM7.1/ DTS/ Dolby-AC3/ DSD
    • Max bandwidth: 320MHz
    • Max band rate: 3.2Gbps
    • Input cable distance: (1080p resolution)≤15m.(4K )≤12m AWG26 HDMI standard cable
    • Output cable distance: (1080p resolution)≤25m.(4K resolution) ≤15m AWG26 HDMI standard cable
    • HDMI Input: 2
    • HDMI Output: 4
    • Max working current: 1000mA
    • Power adapter format: Input:AC (50HZ.60HZ) 100V-240V'Output :DC5V/2A
    • Operating Temperature range: (-15 to +55℃)
    • Operating Humidity range: 5 to 90% RH (No Condensation)
    • Dimension (LxWxH): 180x71.3x21(mm)
    • Casing: Metal
    • Color: black
    • Plug type: EU

    Tips:

    • Connect two cables from HDMI source device into HDMI Switch/Splitter input
    • Connect four cables from displayer into HDMI Switch/Splitter output
    • Connect power adapter to the HDMI Switch/Splitter

    Supports the 3.5mm headphones audio output and SPDIF audio output, so you can enjoy the vivid world

    * HDMI Splitter - It also can Switch between two input source devices and splitter the signal simultaneously to four displays.(the 4 display show the same picture at the same time)

    * HDMI Switcher - Plug and Play. When connecting 2 different Input Source to four Display device, you can choose any one of the input source to the displays at the same time.(the 4 display show the same picture at the same time)

    * HDMI Amplifier - With built-in automatic adjusting amplifier, it can regenerate the HDMI signal before sending it to the outputs by a long HDMI cable.

    * This HDMI switch splitter selector supports single HD display for multiple sources, such as DVD Players and Satellite Receivers, Digital Projectors, A/V Receivers and Set Top Boxes.

    * When a HDMI cable connects with HDMI output , the 2x4 switch/splitter can amplify the HDMI signal; Supporting highest video resolution 4K X 2K, 3D, 1080p/60Hz, HDMI1.4a.

    Package Content :

    • 1 x HDMI Switch/ Splitter

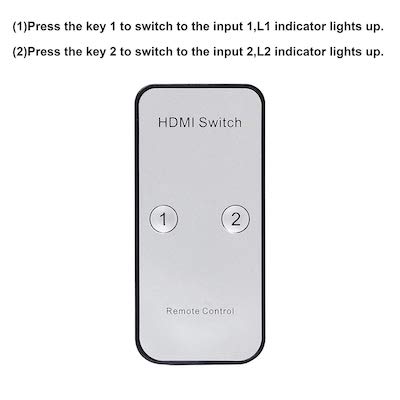

    • 1 x Remote Control
    • 1 x 5V DC Power Adapter (3-pin Plug)
    • 1 x User Manual
    • 2 x Holder
    • 4 x Screws

    (Note : Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered from time to time)
