Model |

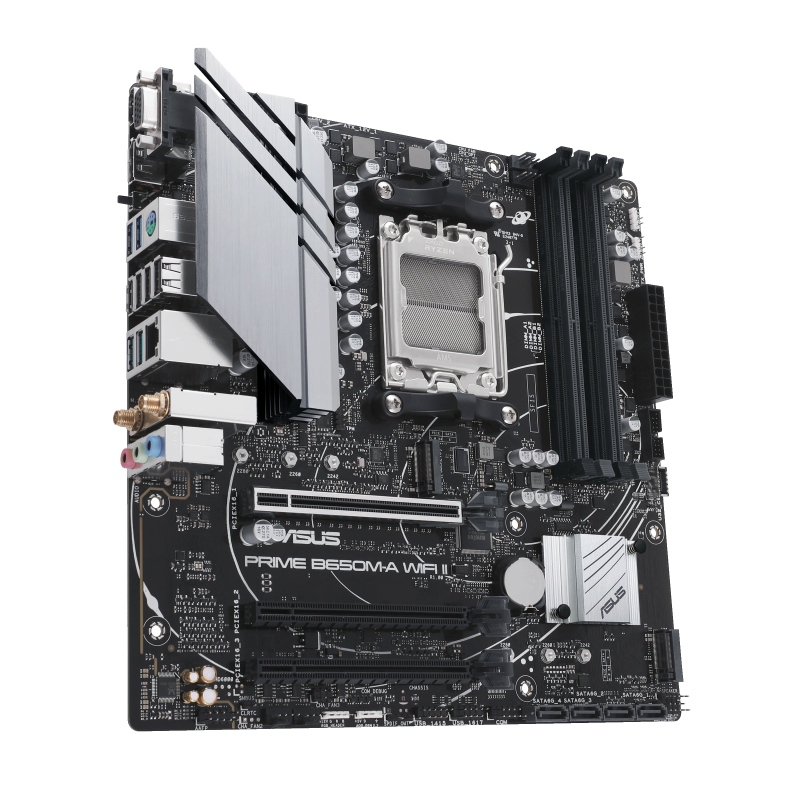

PRIME B650M-A WIFI II |
CPU |
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
|
* Refer to www.asus.com for CPU support list. |
Chipset |
AMD B650 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* |
|
Dual Channel Memory Architecture |
|
Supports AMD Extended Profiles for Overclocking (EXPO™) |
|
OptiMem II |
|
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
|
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
Graphics |
1 x DisplayPort** |
|
1 x VGA port |
|
1 x HDMI® port*** |
|
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
|
** Supports max. 8K@60Hz as specified in DisplayPort 1.4. |
|
*** Supports 4K@60Hz as specified in HDMI® 2.1. |
Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors |
|
1 x PCIe 4.0 x16 slot (supports x16 mode) |
|
AMD B650 Chipset |
|
2 x PCIe 4.0 x16 slots (support x1 mode) |
|
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
|
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
|
AMD Ryzen™ 7000 Series Desktop Processors |
|
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
|
AMD B650 Chipset |
|
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
|
4 x SATA 6Gb/s ports |
|
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth |
Wi-Fi 6 |
|
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
|
Supports 2.4/5GHz frequency band |
|
Bluetooth® v5.2 |
|
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
USB |
Rear USB (Total 8 ports) |
|
2 x USB 3.2 Gen 2 ports (2 x Type-A) |
|
2 x USB 3.2 Gen 1 ports (2 x Type-A) |
|
4 x USB 2.0 ports (4 x Type-A) |
|
Front USB (Total 7 ports) |
|
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) |
|
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
|
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
- Supports up to 24-Bit/192 kHz playback |
|
Audio Features |
|
- Audio Shielding |
|
- Premium audio capacitors |
|
- Dedicated audio PCB layers |
|
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Back Panel I/O Ports |
2 x USB 3.2 Gen 2 ports (2 x Type-A) |
|
2 x USB 3.2 Gen 1 ports (2 x Type-A) |
|
4 x USB 2.0 ports (4 x Type-A) |
|
1 x DisplayPort |
|
1 x VGA port |
|
1 x HDMI® port |
|
1 x Wi-Fi Module |
|
1 x Realtek 2.5Gb Ethernet port |
|
3 x Audio jacks |
|
1 x BIOS FlashBack™ button |
|
1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors |
Fan and Cooling related |
|
1 x 4-pin CPU Fan header |
|
1 x 4-pin CPU OPT Fan header |
|
3 x 4-pin Chassis Fan headers |
|
Power related |
|
1 x 24-pin Main Power connector |
|
1 x 8-pin +12V Power connector |
|
1 x 4-pin +12V Power connector |
|
Storage related |
|
2 x M.2 slots (Key M) |
|
4 x SATA 6Gb/s ports |
|
USB |
|
1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) |
|
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
Miscellaneous |
|
3 x Addressable Gen 2 headers |
|
1 x Aura RGB header |
|
1 x Clear CMOS header |
|
1 x COM Port header |
|
1 x Front Panel Audio header (AAFP) |
|
1 x S/PDIF Out header |
|
1 x Speaker header |
|
1 x SPI TPM header (14-1pin) |
|
1 x 10-1 pin System Panel header |
Special Features |
ASUS 5X PROTECTION III |
|
-DIGI+VRM |
|
-LANGuard |
|
- Overvoltage Protection |
|
- Safeslot Core+ |
|
-Stainless-Steel Back I/O |
|
ASUS Q-Design |
|
-Q-DIMM |
|
-Q-LED Core |
|
-Q-Slot |
|
ASUS Thermal Solution |
|
- VRM heatsink design |
|
ASUS EZ DIY |
|
- BIOS FlashBack™ button |
|
- BIOS FlashBack™ LED |
|
Aura Sync |
|
- Aura RGB header |
|
- Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
|
Armoury Crate |
|
- Aura Creator |
|
- Aura Sync |
|
- Fan Xpert 2+ |
|
- Power Saving |
|
AI Suite 3 |
|
- TurboV EVO |
|
-DIGI+VRM |
|
- PC Cleaner |
|
ASUS CPU-Z |
|
MyASUS |
|
Norton Anti-virus software (Free Trial version) |
|
WinRAR |
|
UEFI BIOS |
|
ASUS EZ DIY |
|
- ASUS CrashFree BIOS 3 |
|
- ASUS EZ Flash 3 |
|
- ASUS UEFI BIOS EZ Mode |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
|
2 x SATA 6Gb/s cables |
|
Miscellaneous |
|
1 x ASUS Wi-Fi moving antennas |
|
1 x I/O Shield |
|
1 x Screw Package for M.2 SSD |
|
Documentation |
|
1 x User guide |
Operating System |
Windows® 11, Windows® 10 64-bit |
Form Factor |
mATX Form Factor |
|
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
