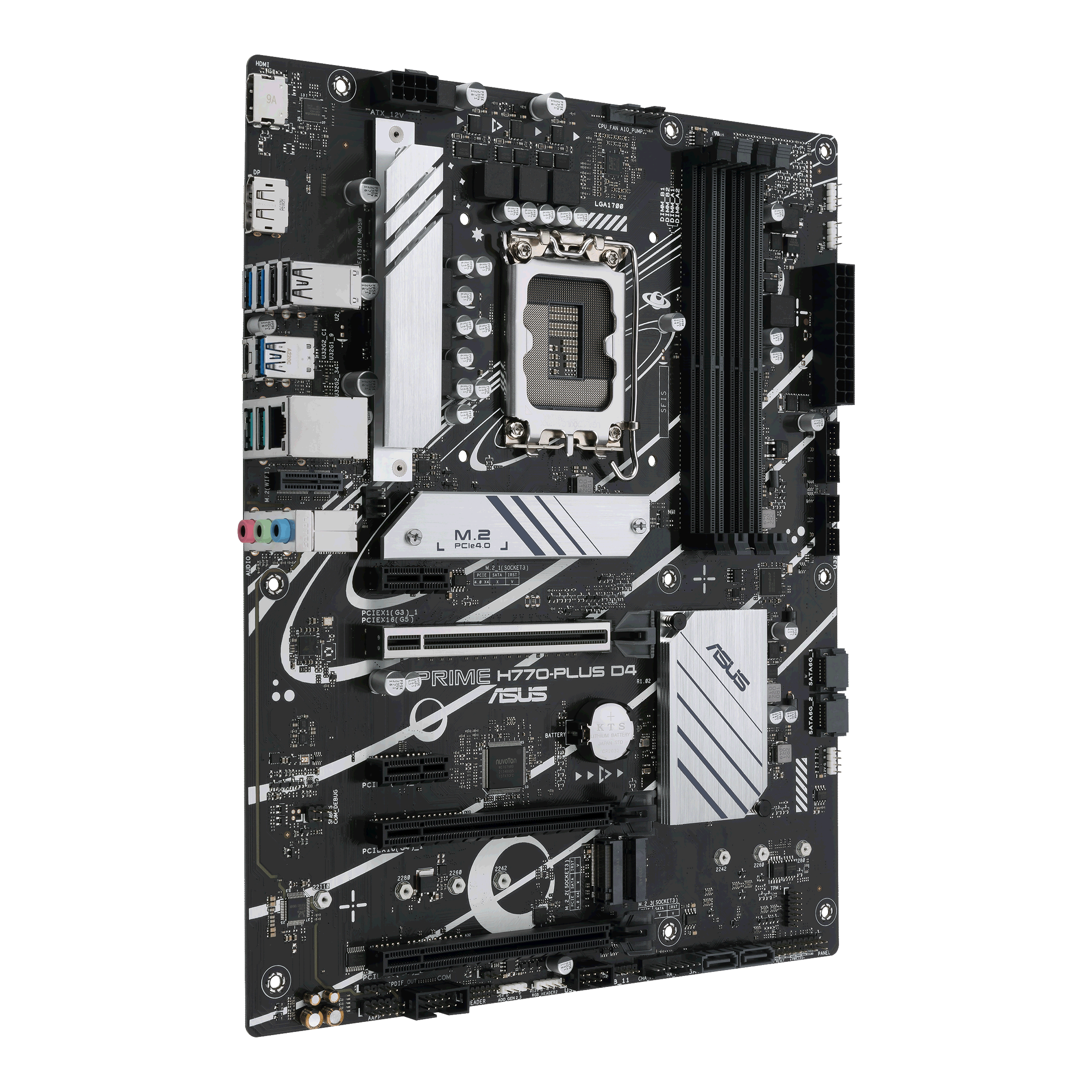

PRIME H770-PLUS D4 |
CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
* Refer to www.asus.com for CPU support list. |
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset |
Intel® H770 Chipset |
Memory |
4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/ |
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, |
Un-buffered Memory* |
Dual Channel Memory Architecture |
Supports Intel® Extreme Memory Profile (XMP) |
OptiMem |
* Supported memory types, data rate (speed), and number of DRAM modules vary depending |
on the CPU and memory configuration, for more information please refer to CPU/Memory Support |
list under the Support tab of product information site or visit https://www.asus.com/support/. |
Graphics |
1 x DisplayPort** |
1 x HDMI® port*** |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
** Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
*** Supports 4K@60Hz as specified in HDMI® 2.1. |
Expansion Slots |
Intel® 13th & 12th Gen Processors* |
1 x PCIe 5.0 x16 slot |
Intel® H770 Chipset |
2 x PCIe 4.0 x16 slots (support x4 mode) |
2 x PCIe 3.0 x1 slots |
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ |
for the list of supported peripherals. |
Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel® 13th & 12th Gen Processors |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
Intel® H770 Chipset |
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
4 x SATA 6Gb/s ports |
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth |
Vertical M.2 slot only (Key E, CNVi & PCIe)* |
* Wi-Fi module is sold separately. |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
- Supports up to 24-Bit/192 kHz playback |
Audio Features |
- Audio Shielding |
- Premium audio capacitors |
- Dedicated audio PCB layers |
* A chassis with an HD audio module in the front panel is required to support 7.1 |
Surround Sound audio output. |
Back Panel I/O Ports |
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) |
3 x USB 3.2 Gen 1 ports (3 x Type-A) |
2 x USB 2.0 ports (2 x Type-A) |
1 x DisplayPort |
1 x HDMI® port |
1 x Vertical M.2 slot (Key E) |
1 x Realtek 2.5Gb Ethernet port |
3 x Audio jacks |
Internal I/O Connectors |
Fan and Cooling related |
1 x 4-pin CPU Fan header |
1 x 4-pin AIO Pump header |
3 x 4-pin Chassis Fan headers |
Power related |
1 x 24-pin Main Power connector |
1 x 8-pin +12V Power connector |
Storage related |
3 x M.2 slots (Key M) |
4 x SATA 6Gb/s ports |
USB |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support 3 additional USB 2.0 ports |
Miscellaneous |
3 x Addressable Gen 2 headers |
2 x Aura RGB headers |
1 x Clear CMOS header |
1 x COM Port header |
1 x Front Panel Audio header (AAFP) |
1 x S/PDIF Out header |
1 x SPI TPM header (14-1pin) |
1 x 20-3 pin System Panel header with Chassis intrude function |
1 x Thunderbolt™ (USB4®) header |
Special Features |
ASUS 5X PROTECTION III |
DIGI+ VRM |
LANGuard |
Overvoltage Protection |
SafeSlot Core+ |
Stainless-Steel Back I/O |
ASUS Q-Design |
Q-DIMM |
Q-LED Core |
Q-Slot |
ASUS Thermal Solution |
M.2 heatsink |
VRM heatsink design |
ASUS EZ DIY |
ProCool |
Aura Sync |
Aura RGB headers |
Addressable Gen 2 headers |
Software Features |
ASUS Exclusive Software |
Armoury Crate |
Aura Creator |
Aura Sync |
Fan Xpert 2+ |
Power Saving |
AI Suite 3 |
DIGI+ VRM |
PC Cleaner |
ASUS CPU-Z |
Norton 360 Deluxe (60 Days Free Trial) |
WinRAR |
UEFI BIOS |
ASUS EZ DIY |
ASUS CrashFree BIOS 3 |
ASUS EZ Flash 3 |
ASUS UEFI BIOS EZ Mode |
BIOS |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
Cables |
2 x SATA 6Gb/s cables |
Miscellaneous |
1 x I/O Shield |
1 x M.2 Rubber Package |
2 x Screw Packages for M.2 SSD |
Documentation |
1 x User guide |
Operating System |
Windows® 11, Windows® 10 64-bit |
Form Factor |
ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
