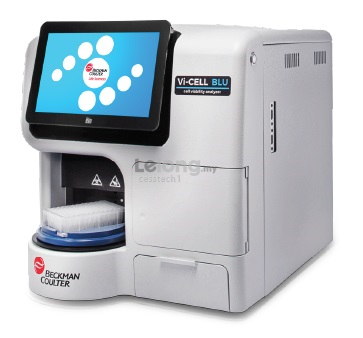

Beckman Coulter Vi-CELL BLU Cell Viability Analyzer

Beckman Coulter Vi-CELL BLU Cell Viability Analyzer

Beckman Coulter cleanroom compatible Vi-CELL BLU Cell Viability Analyzer leverages the key performance features of the Vi–CELL XR but incorporates many design improvements. It provides an automatic means to perform the Trypan Blue Dye Exclusion method. Allowing users to load up to 24 samples from carousel or from 96-well plate at once (Walkaway Operation) for easy and automated cell percent viability, total cell & viable cell concentration and mean cell size. By decreasing tubing length and inner diameter enables smaller sample volumes of 170µL or 200µL for analysis. And with cutting-edge liquid handling as optimized syringe pump speed accelerates trypan blue dye mixing and flow cell washing time while minimizing the introduction of bubbles and high speed camera imaging technology enables the system to continue capture images as the sample flows continuously through the flowcell enable to increase the speed of sample analysis with 130 second for normal model down to 90 second in FAST model. The entire process – from sample aspiration, reagent handling, image analysis, to instrument cleaning – is fully controlled by a built-in PC with advanced software which is 21 CFR Part 11 compliance ready to reanalyze data for cell type optimization, bubble detection & detect and ignore dust on the flowcell.

Features :
• Fully automated sample prep and cell counting
• 24 position sample carousel 96-well plate compatible
• Reagent pack complete with trypan blue, buffer, disinfectant and cleaning solutions
• Built-in PC (Win 10 OS) with touchscreen monitor
• Facilitates 21 CFR Part 11 Compliance
• Facilitates your ability to be compliant with IQ/OQ

Feature Benefits:
Auto Sampler: To Eliminates need to remove carrousel
Size Range: 2-60 microns
Sample Volume: 170 microliters in FAST mode; 200 microliters in Normal mode Max 500 microliters
Analysis Time: <130 seconds Normal Mode; <90 seconds FAST Mode

Others Benefits
Out of Range Concentration Flag, Export Multi-run Files to MS Excel, Upgraded Audit Trail Supports 21 CFR
Part 11, Added Preferences for Secured Users, Enhanced Circularity Measurement To Helps in isolating debris from sample

SPECIFICATIONS
Concentration Range: 5 x 104 to 1.5 x 107 cells/mL
Operating System: Windows 10
Power Requirements: 50 Watts, 65 Watts max AC Input: 100-240V~, 2.5A, 50-60Hz
Temperature:  13° - 37°C 55° - 99°F
Weight: 28 kg 63 lbs
Unit Dimensions (H x W x D): 42 x 54 x 45 (cm) 16.5 x 21 x 18 (in)

Please Call 03- 5131 8616 or Email enquiry@cesstech.com.my for further information or quotation.
