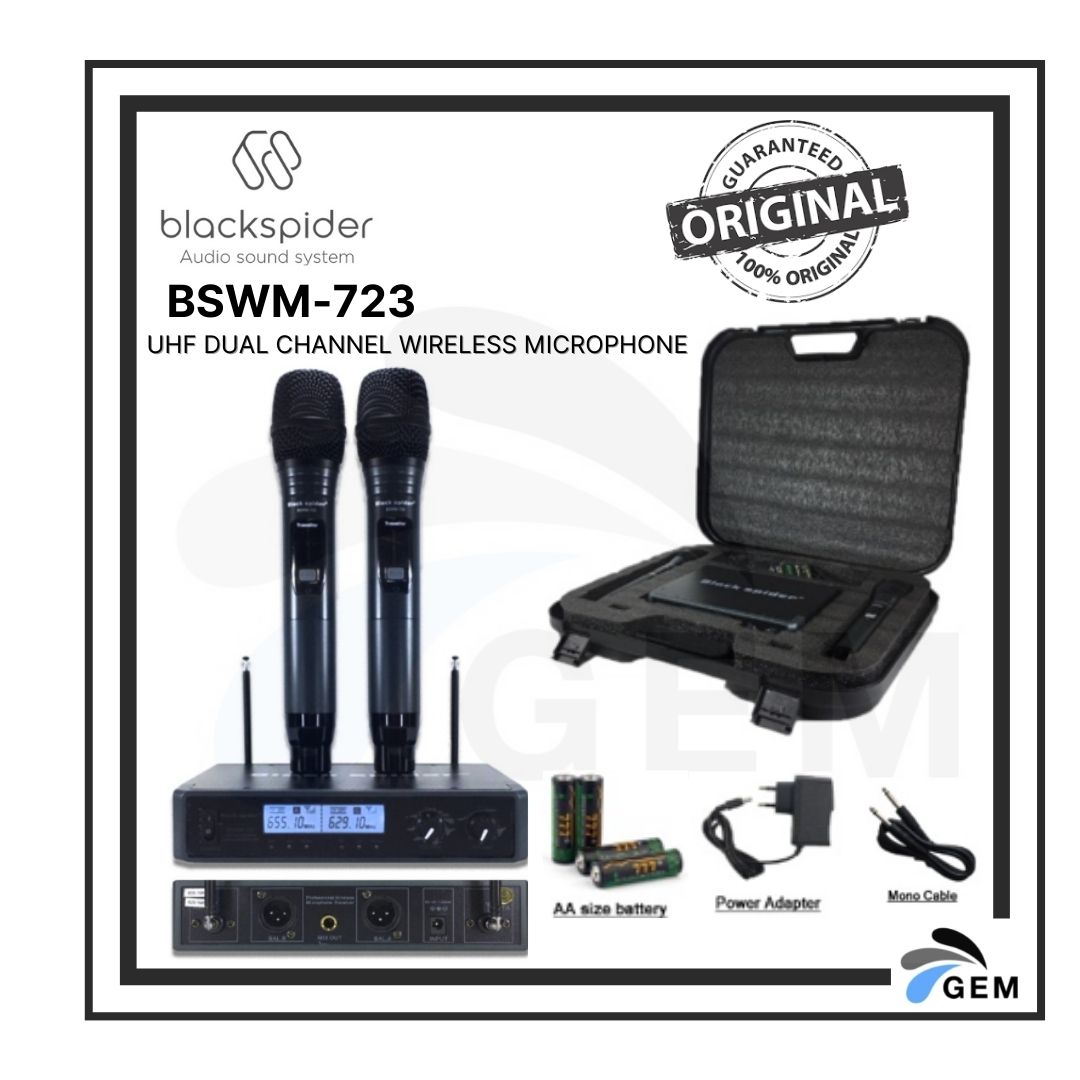

BLACK SPIDER DUAL CHANNEL UHF WIRELESS MICROPHONE (BSWM-723)

Intergrative Performance=================

frequency range : UHF 600-690 MHz

frequency stability : <+0.05%

maximun deviation : +65Hz

Total harmonic distortion: 0.75% typical

(ref +33kHz deviation ,1khz tone)

audio frequency response (+2db) : minimum 80hz

: maximum 12khz

signal to noise ratio: >90dB

operating temperature range: -10*c (0*f)

(note ; baterry characreristic may limit this range

receiver specification

signal noise ratio: >75dB

sensitivity : -90dB typical

neighboring channel interfrence: >80dB1/4inch

connector : 0-300 mV

XLR connector: 0-300mV

XLR output impedance : pin 1-ground

: pin 2-audio

: pin 3- no audio

power requirement: DC12V@250mA

rated power consumption :2w

rated power : 5w
