    Product ID : 212427619 Brand : NTI Model / SKU : ST-IPHD-LC Conditions : New


    Low-Cost HDMI Over Gigabit IP Network Range Extender



    The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 330 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.

    Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

    The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 330 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.

    Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.



    • Supports HDTV resolutions to 1080p.
    • Ideal solution for digital signage applications.
    • Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or non-managed network switch.
    • Transmits an HDMI signal over one CAT5e/6 cable.
    • Plug-and-Play installation allows receivers to find the transmitters automatically on the same subnet. (Network configuration may be required for managed network switch.)

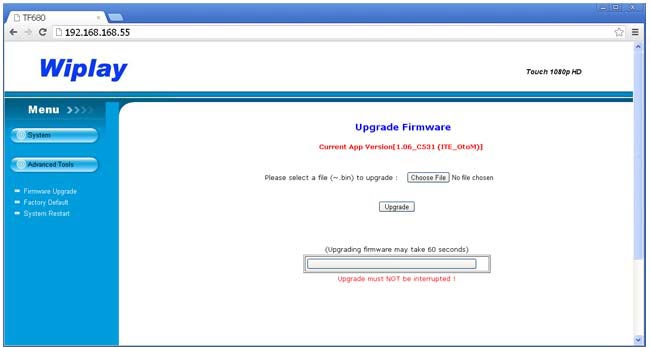

    • Web interface for changing IP addresses, firmware updates and resetting units to factory default settings.
    • Easily expandable. Add remote units as you add monitors.
    • Inexpensive CAT5e/6 cable replaces bulky video cables.
    • Supports 10/100/1000 Ethernet connection.
    • Built in default EDID table.
    • HDCP compliant.
    • Support for multiple transmitters requires a managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
      • The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and permit duplicate IP addresses across the VLAN domains.
      • Each VLAN acts as a separate HDMI Over IP Channel on the network.
      • Number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.
      • Cascade manage switches up to 3 levels, allowing the farthest display to be located up to 1,000 feet away from the source device. Each receiver can be located up to 330 feet away.
    • If a non-managed network switch is used for a point-to-many connection, it is not recommended to use other network devices on the same switch as it may cause a degradation in performance.
    • Uses M-JPEG technology to process image compression on a fixed bandwidth.
      • Note: at high resolutions, characters on PCs get noticeably fuzzy due to image compression and decompression process.
    • Local and remote units must be in the same LAN. The units do not support WAN connections.
    Local Unit
    • One female HDMI-A port for source connection.
    • One female 1000Mbps RJ45 port for sending high definition video/audio signals.
    • Max. bit rate: 80 Mbps.
    • Codec: MJPEG
    • Encoding delay: 33 mS at 30fps latency
    Remote Unit
    • One female HDMI-A port for HDTV or computer display.
    • One female 1000Mbps RJ45 port for receiving high definition video/audio signals.
    • Supports HDTV resolutions to 1080p.
    • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
    Power
    • Local and remote unit: 110 or 240 VAC at 50 or 60 Hz via AC adapter (US AC adapters included).
      • Optional universal power plug adapters available (not included).
    • Power consumption: 3W each.
    Cables



    • Use HD-xx-MM cable to connect an HDMI source or display (not included).
    • Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
    • Use CAT5e/6 solid or stranded straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
    Environmental
    • Operating and storage temperature: 14 to 140°F (-10 to 60°C).
    • Operating and storage relative humidity: 20 to 90% non-condensing RH.
    Dimensions
    • WxDxH: 2.28x4.33x1.02 in (58x110x26 mm)
    Regulatory Approvals
    • CE, FCC, RoHS
    Warranty
    • Two years.
