Rated voltage: 220V

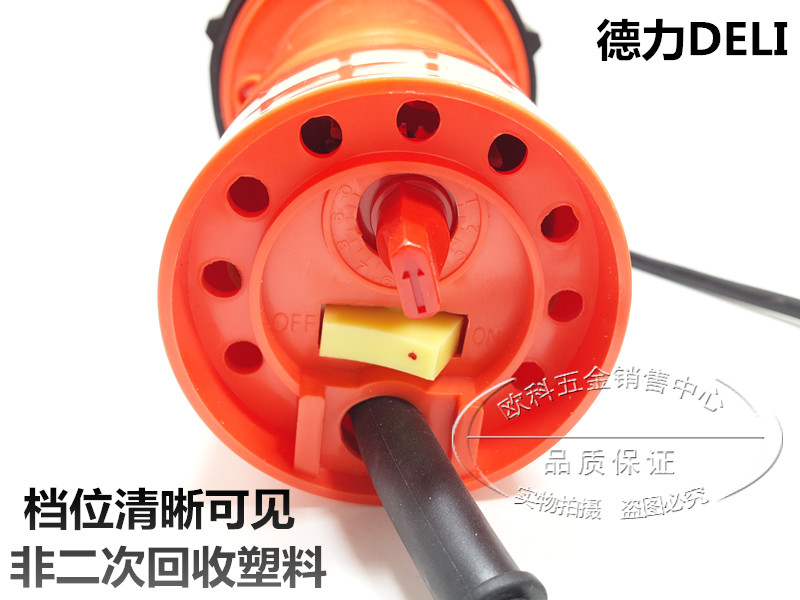

Temperature adjustment range: 40-550 ¡æ
Wind pressure: 2800Pa
Air volume: 0.3 M3 / m
Insulation Performance: "gun core" "motor" and "gun shell" of an AC voltage is applied between the 1500V (50HZ) after one minute no breakdown.
Temperature of 20 degrees, 4 hours continuous use, the handle temperature no higher than 30 degrees.

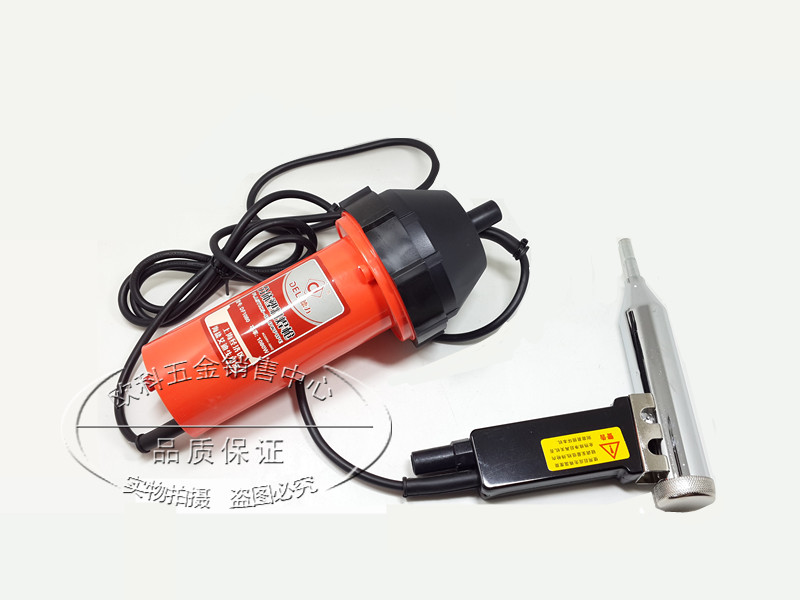

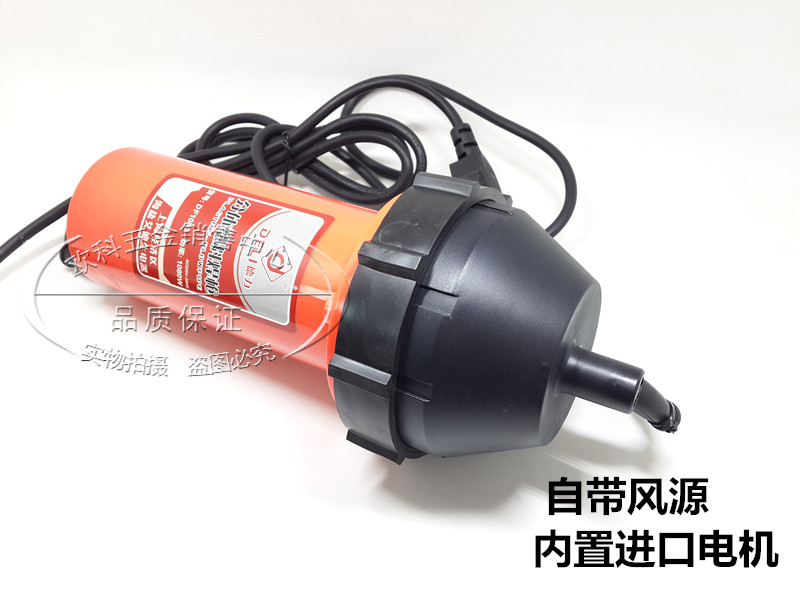

The gun air source is low-voltage DC motor (24V) motor, as long as connected to the 220V AC welding operation can be carried out without air pump and regulating transformers with easy to use. No air pump or other equipment in high-altitude, long-distance unit plastic welding job can purchase spare. This product is most suitable for welding operations with the cross-sectional area of not more than 6 mm2 of plastic welding rod. For plastic sheet welding, and appliance repair, also apply to instruments, meters, dust, moisture, electrical drying. It is the ideal tool for chemicals and plastics production indispensable.
Use and precautions
1, the initial use, smoke or fire-breathing may occur. When this is normal, power will automatically disappear 5 minutes after the gun used, set the temperature to low, before cooling off until the barrel, so as not to waste heat mechanical damage, affecting life.
2, the plastic sheet is heated to 130-140 degrees becomes soft state, forming a little pressure to the welding temperature is generally about 240 degrees away from the welding nozzle opening approximately 5-10MM temperature at 200 to 260 degrees; welding should pay attention to the distance between the nozzle and the solder joint. to achieve the desired welding temperature.

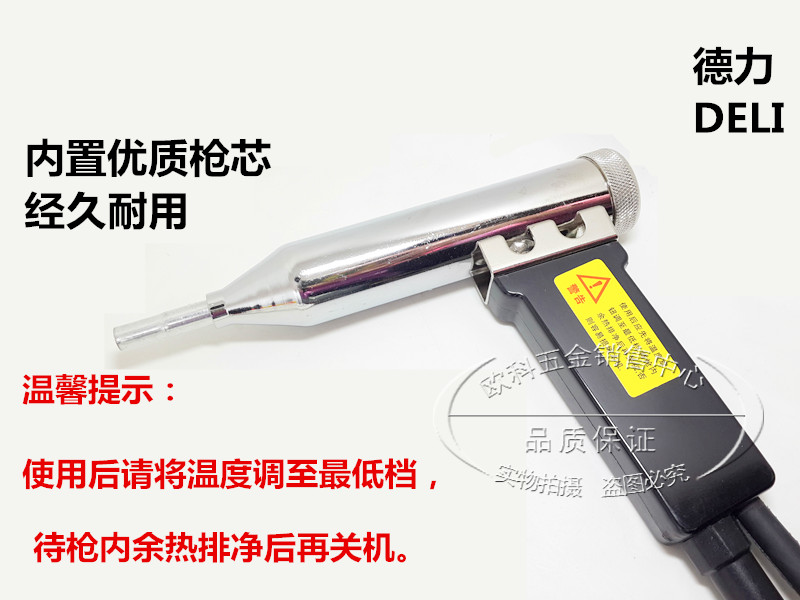

3, the rear electric wire, rotatable shell fired connecting screws, remove the gun the core, with the same specifications of the core gun can be replaced.
4, with the completion of the torch to light, so as not to break the gun the core part of the refractory ceramic material, leaving the electric wire short circuit.
