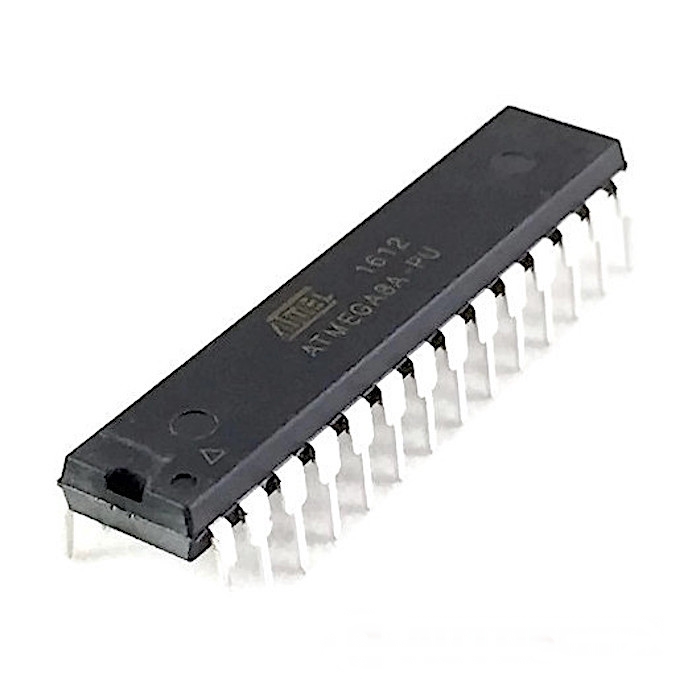

DIP-28 Integrated Circuit IC (ATMEGA8A-PU) 8-bit AVR Microcontroller

SPECIFICATION

• DIP-28 Integrated Circuit IC
• ATMEGA8A-PU
• 8-bit AVR Microcontroller
• Advanced RISC Architecture, up to 16MIPS Throughput at 16MHz.
• 8K Bytes of In-System Self-programmable Flash program memory
• 512 Bytes EEPROM
• 1KByte Internal SRAM
• Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
• One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
• Three PWM Channels
• 6-channel ADC (10-bit accuracy)
• Byte-oriented Two-wire Serial Interface
• Programmable Serial USART
• Master/Slave SPI Serial Interface
• Programmable Watchdog Timer with Separate On-chip Oscillator
• On-chip Analog Comparator
• 23 Programmable I/O Lines
• 28-lead PDIP
• Operating Voltage : 2.7 - 5.5V
• 0 - 16MHz

PACKAGE INCLUDES

• 1 x DIP-28 Integrated Circuit IC (ATMEGA8A-PU) 8-bit AVR Microcontroller
