QUALITY SCANS, ANYTIME, ANYWHERE.
Small, compact and lightweight, the WorkForce ES-60W is the perfect solution for on-the-go scanning needs. USB-powered and equipped with Wi-Fi access and a built-in battery, it delivers fast, convenient scanning anytime, anywhere. With an easy-to-use, intuitive scanning process, capturing and saving documents and even business cards is simply a breeze.
Highlights:
- Compact size and footprint
- Powered via USB, AC Adapter or built-in battery
- Scan speed up to 4.0sec per sheet (on battery)
- Wi-Fi and Wi-Fi A/P mode connectivity
- Epson ScanSmart
Features:
High Portability
Weighing just 300g, the Epson WorkForce ES-60W is a light-weight, portable A4 sheet-fed scanner with comprehensive business scanning capabilities in a super compact, space-saving package.

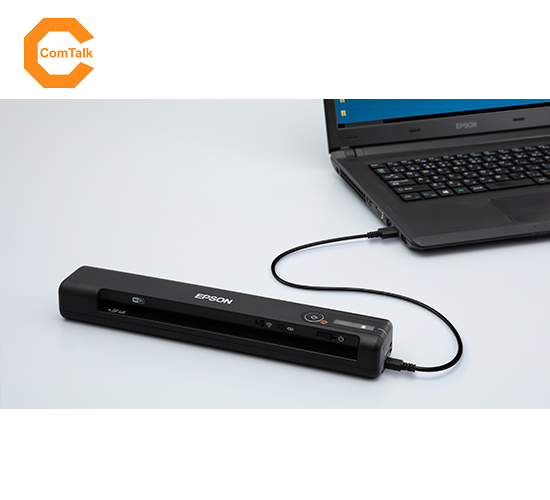

Power up and use the scanner with a single USB cable when connected directly to a computer. With the built-in battery, the ES-60W allows users to scan on the go without a power source. It can be recharged either with the AC adapter or when connected to a computer's USB port.
Wireless Scanning
With Wi-Fi or Wi-Fi Access Point mode, mobile devices can connect to the ES-60W for convenient scanning via the Epson ScanSmart.
Versatile Scanning
The ES-60W handily accepts most standard paper types, as well as ID cards, business cards, thin papers from 35gsm to 270gsm thick cards, even embossed plastic cards of up to 1.2mm thickness.
Automatic Feeding Mode
The Automatic Feeding Mode enables documents to be scanned continuously. In addition, this mode allows you to scan documents one at a time without needing to arrange them by size and they will be saved into a single PDF.
Epson ScanSmart Document Scanning Software
Scan and share documents with confidence using easy scanning options, editing and integration tools.
- Easy scanning operation
- Convenient workflow process
- Adjust document before saving
Specifications:
Control Panel:
Control Panel:
LCD Screen
Scan Speed:
Resolution (Colour / Monochrome):
200dpi: 4.0sec (Battery) / 5.5sec (USB Bus powered)
300dpi: 4.0sec (Battery) / 5.5sec (USB Bus powered)
600dpi: 9.0sec (Battery) / 9.0sec (USB Bus powered)
Scanning:
Scanner Type:
A4 sheet-fed colour scanner
Sensor Type:
Contact Image Sensor (CIS)
Scanning Method:
Fixed document and moving carriage
Light Source:
RGB LED
Optical Resolution:
600 x 600 dpi
Output Resolution:
50 - 1,200 dpi (in 1 dpi increments)
Scanner Bit Depth (Colour):
48-bit input, 24-bit output
Scanner Bit Depth (Grayscale):
16-bit input, 8-bit output
Scanner Bit Depth (Black & White):
16-bit input, 1-bit output
Min Document Size:
50.8 x 50.8 mm
Max Document Size:
216 x 1,828.8 mm
Supported Paper Weight:
35 - 270 g/m2
ADF Capacity:
1 sheet
Daily Scan Volume:
Up to 300 sheets / day
Interface:
USB 2.0 (Micro-B), Wi-Fi
Supported OS and Applications:
Supported OS:
Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012 / Server 2016
Mac OS X 10.6.8 or later
Bundled Applications:
Epson ScanSmart
File Format:
Epson ScanSmart: JPEG, PDF, Searchable PDF, DOCX, XLSX, PPTX*3
Mobile App:
Epson DocumentScan (iOS / Android)
Dimensions and Weight:
Dimensions (W x D x H):
272 x 47 x 33.8 mm
Weight:
270g
Electrical Specifications:
Input Voltage:
DC 5V
Input Current:
0.5A
Operating:
2.4W (Wi-Fi off) / 4.5W (Wi-Fi on)
Ready:
1.3W (Wi-Fi off) / 3.0W (Wi-Fi on)
Sleep:
1.0W
Power Off:
0.3W
Environmental Conditions:
Temperature:
Operating: 5 - 35 °C
Storage: -25 - 60 °C
Humidity:
Operating: 10 - 85% (No condensation)
Storage: 10 - 90% (No condensation)
Options:
Options:
Carrier Sheet - B12B819421
Maintenance Sheet - B12B819481
P/N: B11B253502
What's in the box:
Scanner Main unit
USB Cable (Micro-B)
Software CD
Setup Guide
Cleaning Sheet
Calibration Sheet
Warranty:
1 Year
|
