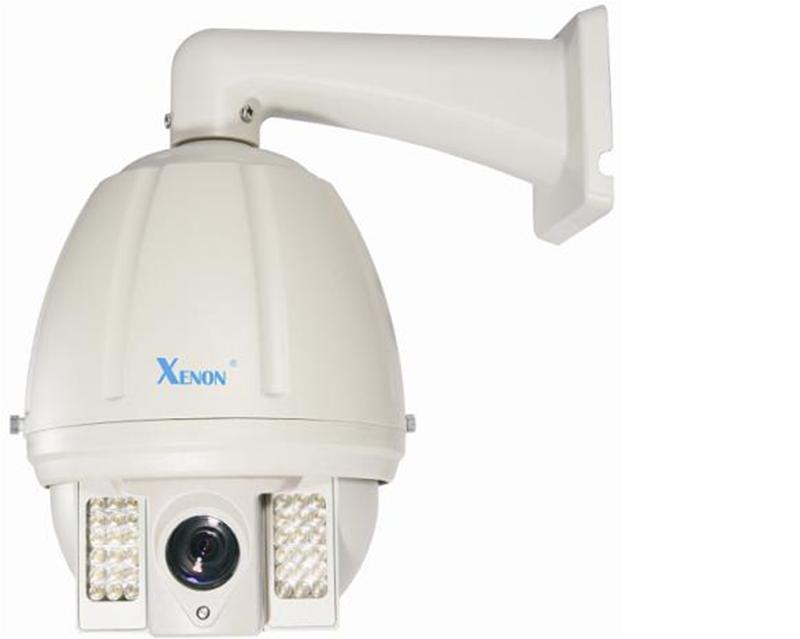

IR PTZ Dome with KOREAN  CCD Image Sensor and Resolution of 480TVL  22

    IR PTZ Dome with KOREAN CCD Image Sensor and Resolution of 480TVL 22

    RM 1,760.00

    Please select option below

    X

    Quantity
    - +
    29999 left
    Delivery From Penang
    Estimated Arrival : 1-3 working days.
    Shipping Fee   -
    Ship To : International
    ADD TO CART
    BUY NOW
    Add to wishlist
    Since 25 Jan 2010
    We accept
    All Malaysia Bank
    Buyer Protection
    with NetPay
    Full Refund if you don't receive your order*
    Popular Products
    Product ID : 130243950
    Brand : XENON
    Model / SKU : SN-HH9180DP
    Conditions : New


    IR PTZ Dome with KOREAN  CCD Image Sensor and Resolution of 480TVL  22

    Key Specifications/Special Features:

    • Main feature:
      • Adopt the latest LED array technology
      • Driven by constant current, the IR lamp ensures stable running
      • Free from the influence of ambient temperature
      • About 5 to 10 times the lifespan of the traditional LED
      • Adopt the high-performance DSP design, which is more stable and reliable
    • PTZ camera specifications:
      • Camera image sensor: Korean 1/4-inch CCD
      • Resolution: 480TV line
      • Lens f=3.9mm-85.8mm high-durability 22x zoom lens
      • Angle of view: 48 degrees (w) Horizontal 3 degrees (t)
      • Synchromization system: internal/line lock NTSC 60Hz, PAL 50Hz
      • Minimum illumination: 0.05Lux with B/W mode
      • IR sensitive: 0Lux with IR on
      • Video focus: auto/manual (near-far)
      • White balance: auto/oFF
      • BLC: auto/off
      • Electric shutter: 1/50 to 1/12000s
      • S/N ratio: >50dB
      • Video output composite: 1.0+/-0.2Vp-p
      • Pan/tilt:
        • Horizontal moving speed: 6 to 20°/s
        • Vertical moving speed: 6 to 20°/s
      • Movement range:
        Pan: 360° endless/tilt: 0 to 90°
      • Preset position: 64
      • Cruise tracking group: 4 groups/dwelling time at each preset position can be set
      • Left & right scan: beginning and end position can be set freely
      • 360° scan: vertical angle can be set freely
      • Default Position function: yes
      • Scan between 2 points: yes
    • General:
      • Power supply: 15V DC (4A) (adapter should be within 2 meters to the unit)
      • Working temperature: 30 to 60 degrees
      • Relative humidity: 0 to 90%
      • Power consumption: 30W
      • Communication protocol: Pelco D/Pelco P/Pelco D1
      • Communication system: RS485 bus cable, Baud Rate(RS485): 1200 / 2400 / 4800 / 9600bps
      • Protecting grade: IP66
      • IR lamp: LED array/2 groups/visible distance reaches 60ft face identify
      • IR lamp triggering: triggered by photosensitive resistor (default)/ triggered by camera module (IR lamp turned on when camera module turns to black & white mode)
      • Address range of the speed dome: 1 to 255
      • Weight: 6kg
