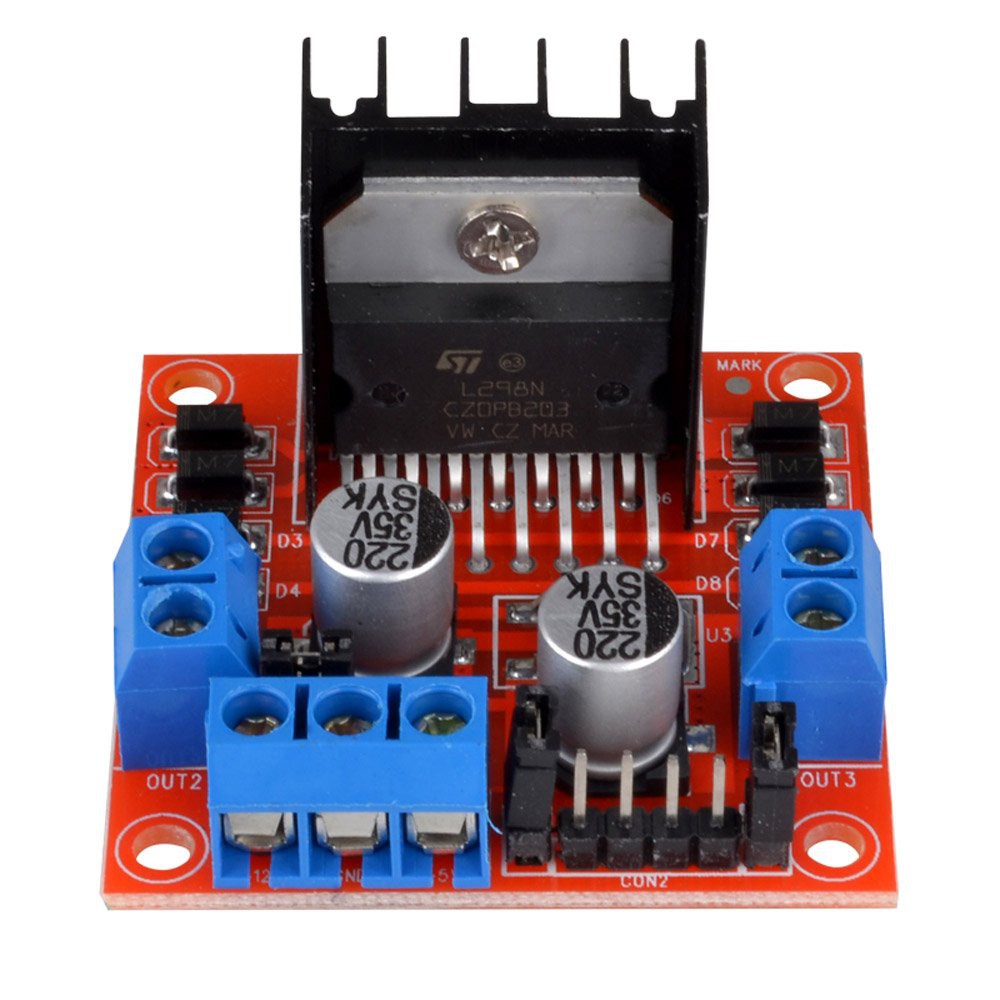

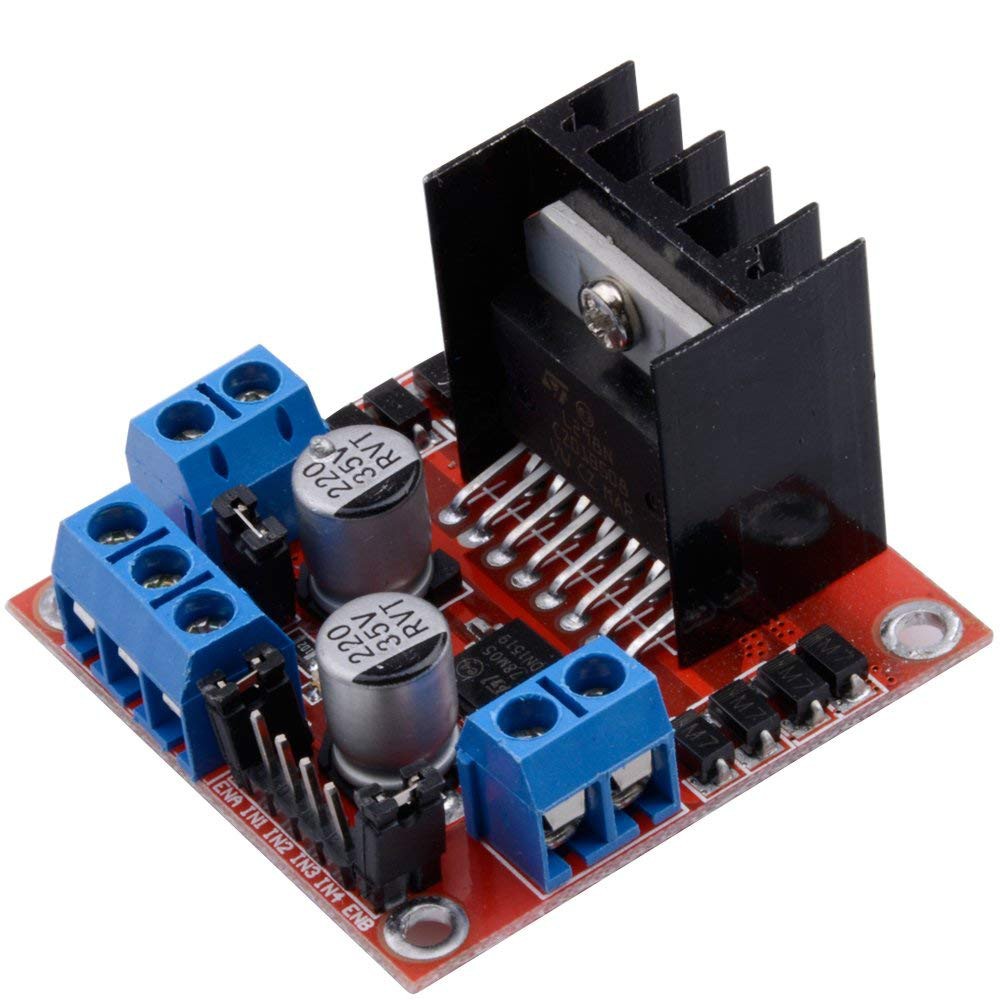

L298N Dual H Bridge DC Stepper Motor Drive Controller Board Arduino Module

New L298N Dual H Bridge DC Stepper Motor Drive Controller Board Arduino Module

- Dual-channel H-bridge driver working mode creates higher working efficiency
- L298N as main chip
- Has strong driver capability, afterflow protection diode, more stable and reliable

Drive voltage 5v-35v
current 0mA-36mA
Driving current 2A(MAX single bridge)
Maximum power consumption: 20W

speed control
- Speed control with the L298N motor driver. All you need is feed PWM signals to the motor enable pins.

Example Pinout :
Out 1: Motor A lead out
Out 2: Motor A lead out
Out 3: Motor B lead out
Out 4: Motor B lead out
12V input
GND: Ground
5v: suitable for power arduino ,Vin Arduino
EnA: Enables PWM signal for Motor A ,digital PWM from arduino Uno
In1: Enable Motor A ,digital Pin from arduino Uno
In2: Enable Motor A ,digital Pin from arduino Uno
In3: Enable Motor B ,digital Pin from arduino Uno
In4: Enable Motor B ,digital Pin from arduino Uno
EnB: Enables PWM signal for Motor B ,digital PWM from arduino Uno
Any question Pm us for guidance

3 Months Manufacture Warranty

Package Includes:

1x Dual H Bridge L298N DC Stepper Motor PWM Drive Controller Module
