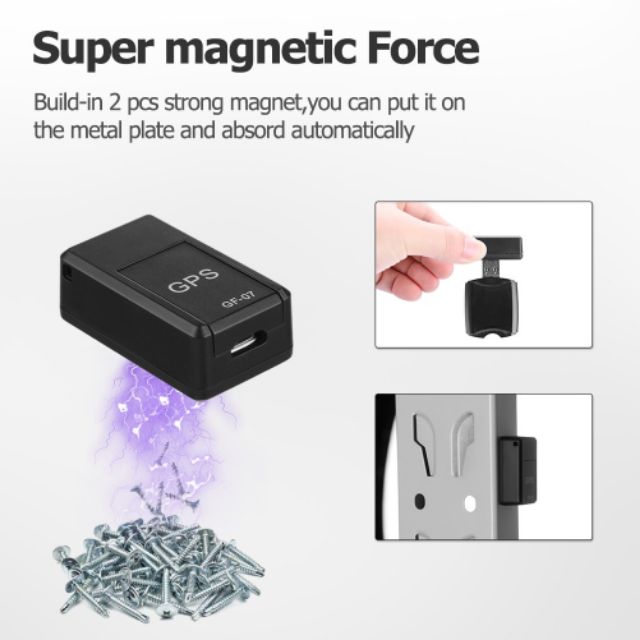

GF07 Magnetic Mini Vehicle GPS Tracker Voice Control GSM GPRS Real Time Car Truck Tracking Device
Specifications:
Appearance size: 3.5cm*2.0cm*1.4cm (L*W*H)/1.38*0.79*0.55"
Charging input: AC 110-220V 50/60Hz
Charging output: DC 5.0V 300-500mA
Machine battery: 3.7V 400mAh Li-ion battery
Standby time: 12 days
Working time 4-6 days
Expansion card: support mini TF card
Continuous call time: 150-180 minutes
Network standard: GSM/GPRS
Storage temperature: -40\u00b0C to +85\u00b0C
Operating temperature: -20 \u00b0 C to +55 \u00b0 C
Humidity range: 5%-95% non-condensing
GPRS: Upload60, TCP/IP
Working voltage: 3.4-4.2V DC
Standby current: about 2.5mA
Turn on voice control current: about 30mA
Call current: about 150mA
GSM positioning time: 25 seconds
Frequency band: GSM 850/900/1800/1900MHz
Supported countries: China, United Kingdom, France, Germany, Netherlands, Italy, Spain, Portugal, Brazil, Denmark, Russia, Poland, Turkey, Hungary, Thailand, Greece, Indonesia, Malaysia, Vietnam, Myanmar, Pakistan, Iraq, Saudi, Arabia, United States, Kazakhstan, Outer Mongolia, Dubai, etc. Trouble shootings:
1. The host cannot be connected
A: You must insert the SIM phone card and turn it on to enable the phone signal, so you only need to restart the machine. Also, if your phone card is not on the server and there will be no signal.
2. TF memory card can work normally
A: First check if the TF memory card is wrong. If there is no problem with the TF card, you can format the TF memory card and try again.
3. Can't charge
A: To charge, you need to insert a GSM card. If there is no SIM card, it can't be charged.
4. What is the master phone
A: The phone you use to monitor the GPS tracker. Special warnings:
1. When the tracker power is low (below 5%), please charge it in time. If the battery is in a deficient state for a long time, it will inevitably cause deep discharge of the battery, affecting the battery performance and life. In severe cases, the battery will not be charged or scrap. If it is not in use, please charge the battery to 60%-80%, disconnect the power supply and then store it. When it is not in use for a long time (three months), please charge it regularly to protect the battery.
In order to better use this machine, please read carefully and follow the above, thank you.
2. This product is limited to personal safety, anti-lost and anti-theft use. It is strictly forbidden to use it illegally. All legal liabilities arising therefrom shall be borne by the user. Include?
1 x GPS Tracker
1 x Charging Cable
1 x User Manual
|
