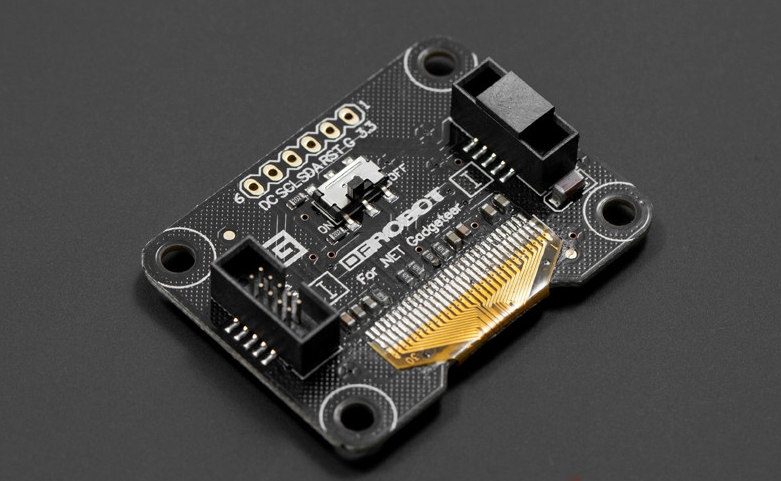

OLED 2864 display module(.NET Gadgeteer Compatible)

INTRODUCTION

An OLED display works without a backlight. Thus, it can display deep black levels and can be thinner and lighter than a liquid crystal display (LCD). In low ambient light conditions such as a dark room an OLED screen can achieve a higher contrast ratio than an LCD. OLED technology is used in commercial applications such as displays for mobile phones and portable digital media players, car radios and digital cameras among others.

OLED 2864 display module is a compact monochrome graphic display module from DFRobot.It embeded an 0.96" OLED with 128x64 high resolution.Because of the advantages of OLED technology,the module own wider viewing angles and improved brightness compared with the character LCD.

The driver chip of OLED module is SSD1306. So it's designed to be driven via I2C interface, which is a easier and small number I/O occupied way. With the Arduino OLED library, you get a simple solution for drawing everything you want. The simple to use library functions can produce text in a variety of sizes as well as draw shapes (which can include user definable bitmapped characters such as logos).

This module directly support Arduino controllers.And it works with .NET gadgeteer series controllers and Dreamer Mega controller as well. Using the IDC10 connectors make it possbile to be driven by .NET Gadgeteer-compatible mainboard as well as the Dreamer Mega .NET Gadgeteer style easy to use microcontroller based on Arduino.

NOTE: SDK or drivers for Gadgeteer platform not included. Drivers are a community maintained projects, for contributions please forward directly to Github or Codeplex

SPECIFICATION

• Working Voltage: 3.3v
• Max power consumption: 20mA@3v
• Connection & interface:
  • .NET gadgeteer connector (IDC10) - Socket: I type
  • I2C for Arduino - 2.54mm (0.1") pins x6
• Compact and 128x64 high resolution
• 0.96" oled display module
• Support Dreamer Mega controller and .NET Gadgeteer-compatible mainboard
• Directly support Arduino controllers
• Switch used to enable/disable the pull-up resistors for I2C interface
• I2C address:
  • 0x3C - DC pin connected to GND
  • 0x3D - DC pin connected to 3.3v
• Size: 42x32x8mm (1.65x1.26x0.31")

PACKAGE INCLUDES

• 1 x OLED 2864 Display module
