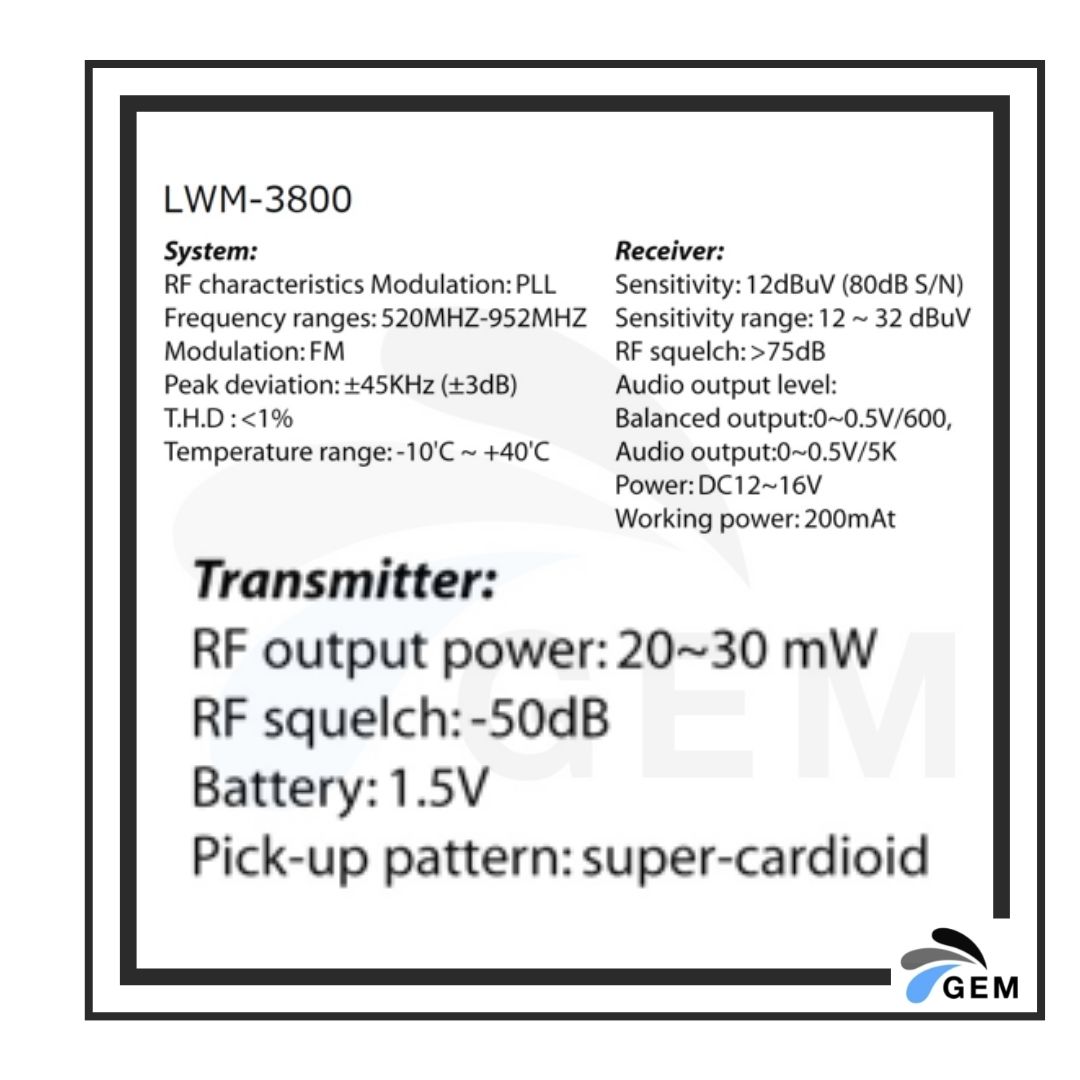

PRO MIC DUAL CHANNEL WIRELESS SYSTEM (LWM-3800)

LWM-3800

SYSTEM:

RF CHARACTERISTICS MODULATION : PLL

FREQUENCY RANGES :520MHZ-952MHZ

MODULATION : FM

PEAK DEVIATION : +45KHZ (+3dB)

T.H.D : <1%

TEMPERATURE RANGE :

RECEIVER :

SENSITIVITY : 12dBUV (80dB S/N)

SENSITIVITY RANGE :12~32 dBuV

RF SQUELCH :>75dB

AUDIO OUTPUT LEVEL:

BALANCED OUTPUT :0~0.5V/600

AUDIO OUTPUT:0~5V/5K

POWER:DC12~16V

WORKING POWER :200mAt

TRANSMITTER:

RF OUTPUT POWER :20!30mW

RF SQUELCH :-50dB

BATTERY: 1.5V

PICKUP PATTERN : SUPER -CARDIOD
