Product ID : 162603258
Model / SKU : TH-UVF8D
Conditions : New
Product Description

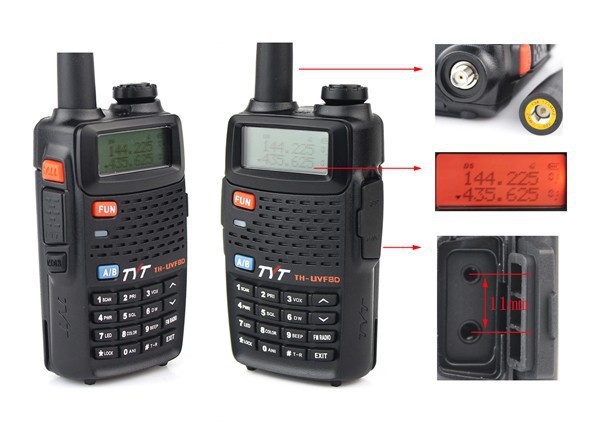

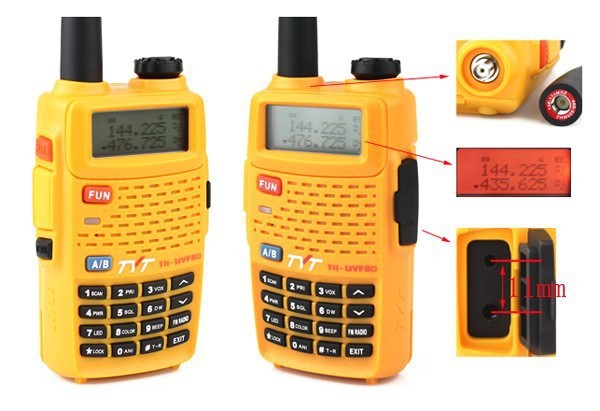

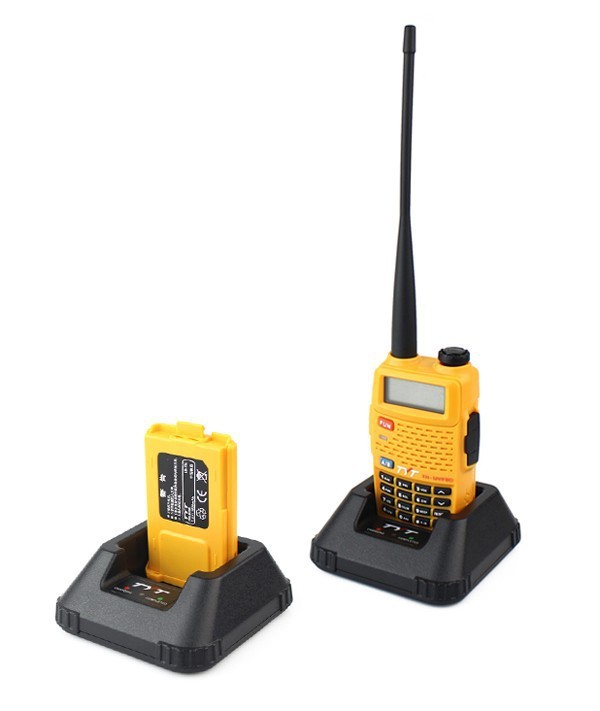

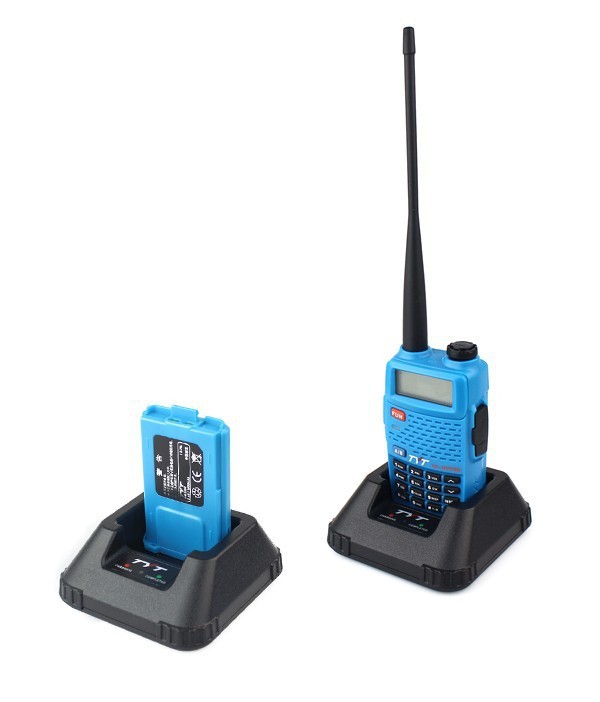

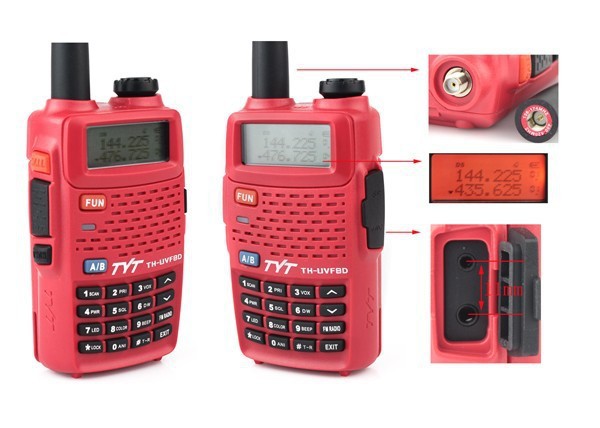

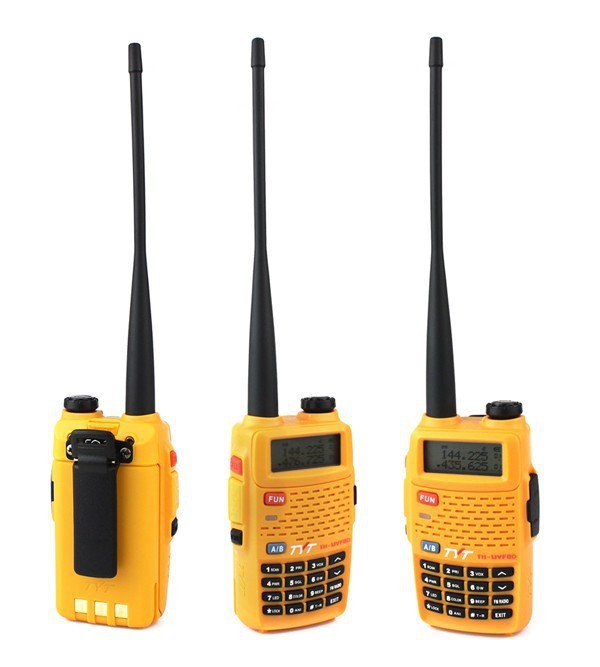

TH-UVF8D dual band Walkie Talkie UHF+VHF 400-520MHz~136-174MHz 7W 256 CH DTMF 1750Hz Tone Two-Way Radio
|
All of our items are brand new
|
|
Model
|
TH-UVF8D
|
|
Dual band / dual display / dual standby
|
Yes
|
A/B band independent operation(UV UU VV)
|
|
VOX function
|
Yes
|
1~8 grades VOX selectable
|
|
CTCSS/DCS
|
Yes
|
50 CTCSS/104 DCS
|
|
DTMF function
|
Yes
|
OFF SET function
|
|
VFO & Memory channels scan
|
Yes
|
|
|
High/Low TX power selectable
|
Yes
|
|
|
PTT & ANI ID
|
Yes
|
|
|
Voice companding
|
Yes
|
|
|
Busy lockout function
|
Yes
|
|
|
Scanning function
|
Yes
|
|
|
Monitor function
|
Yes
|
|
|
Time-out Timer (TOT) function
|
Yes
|
|
|
Shortcut menu operation mode
|
Yes
|
|
|
DTMF encoding and decoding
|
Yes
|
|
|
Wide/Narrow Band(25kHz/12.5kHz)
|
Yes
|
|
|
LCD display
|
Yes
|
|
|
SQL
|
Yes
|
0-9 grade
|
|
Backlight brightness setting
|
Yes
|
|
|
Battery voltage display function
|
Yes
|
|
|
Channel name display and editing function
|
Yes
|
|
|
Step
|
Yes
|
2.5K/5K/6.25K/...25K
|
|
Signal strength indicator
|
Yes
|
|
|
Keypad lock function
|
Yes
|
|
|
FM radio
|
Yes
|
25 stations storage
|
|
Wire clone function
|
Yes
|
|
|
Emergency alarm function
|
Yes
|
|
|
Low battery alarm
|
Yes
|
|
|
Power saving function
|
Yes
|
|
|
High/Low TX power selectable
|
Yes
|
|
|
ROGER SET
|
Yes
|
|
|
Chinese and English voice prompt
|
Yes
|
|
|
PC software programmable
|
Yes
|
|
|
General
|
|
Frequency range
|
UHF:400-520MHz/VHF:136-174MHz
|
|
Frequency stability
|
±2.5PPm
|
|
Operating voltage
|

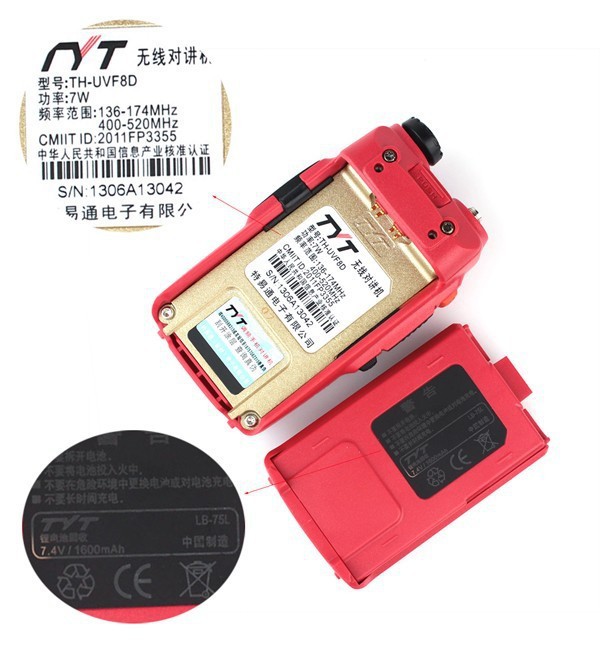

DC7.4V(Rechargeable Li-ion battery)
|
|

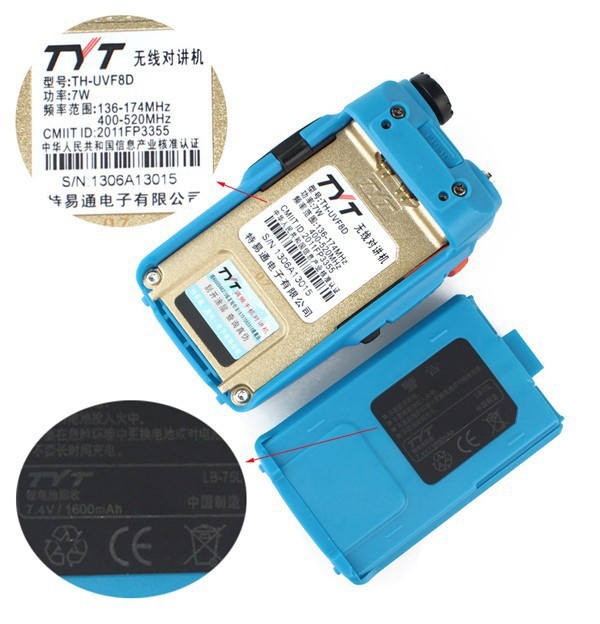

Battery Capacity
|
1600mAh
|
|
Channel NO
|
256
|
|
Antenna
|
High gain antenna
|
|
Antenna type
|
SMA-M
|
|
Antenna impendence
|
50 ohm
|
|
Mode of operation
|
Simplex or semi-duplex
|
|
Dimension
|
106X61X33mm(Not Antenna)
|
|
Plug type
|
2 Pin Kenwood Plug
|
|
Transmitter
|
|
Output power
|
VHF:5W/1W / UHF:4W/0.5W
|
|
Modulation mode
|
16kØF3E / 11kØF3E
|
|
Max deviation
|
<= 5kHz(Wide) / <= 2.5kHz(Narrow)
|
|
Adjacent channel selectivity (wide / narrow)
|
>=65dB(Wide) / >=60dB(Narrow)
|
|
Spurious Radiation
|
<7µW
|
|
Pre-emphasis characteristics
|
6dB
|
|
Current
|
<=1.6A (5W)
|
|
CTCSS / DCS deviation
|
0.5±0.1kHz(Wide)/0.4±0.1kHz(Narrow)
|
|
Intermediation sensitivity
|
1-10mV
|
|
Intermediation Distortion
|
<5%
|
|
Receiver
|
|
RF Sensitivity
|
-122dBm (12dB SINAD)
|
|
Audio power
|
1W
|
|
Audio Distortion
|
<5%
|
|
Blocking
|
>=85dB
|
|
Intermediation
|
>=60dB / >=55dB
|
|
Selectivity
|
>=60dB / >=65dB
|
|
Spurious Rejection
|
>=65dB
|
Color:Black

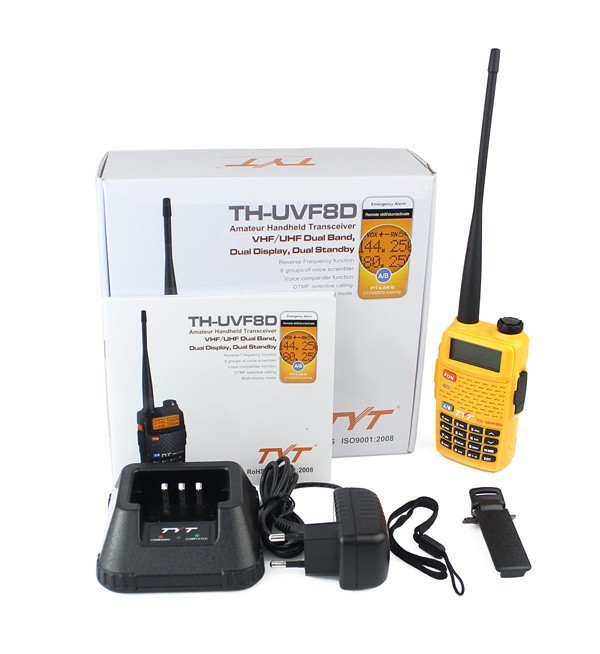

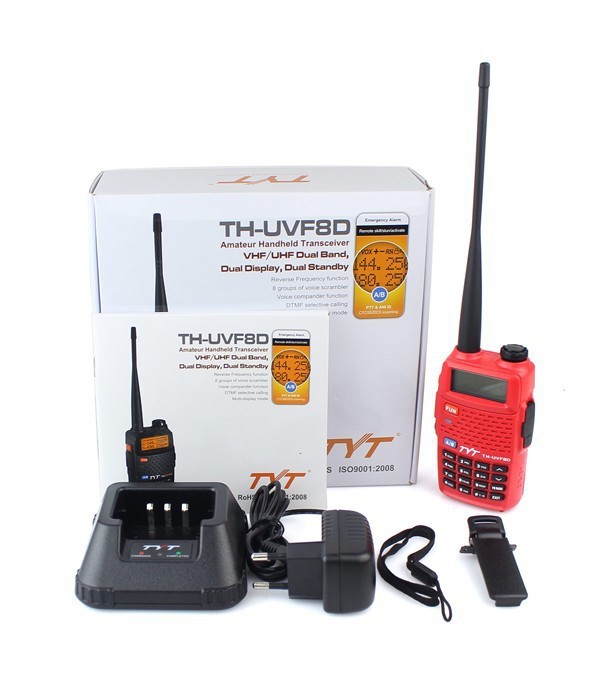

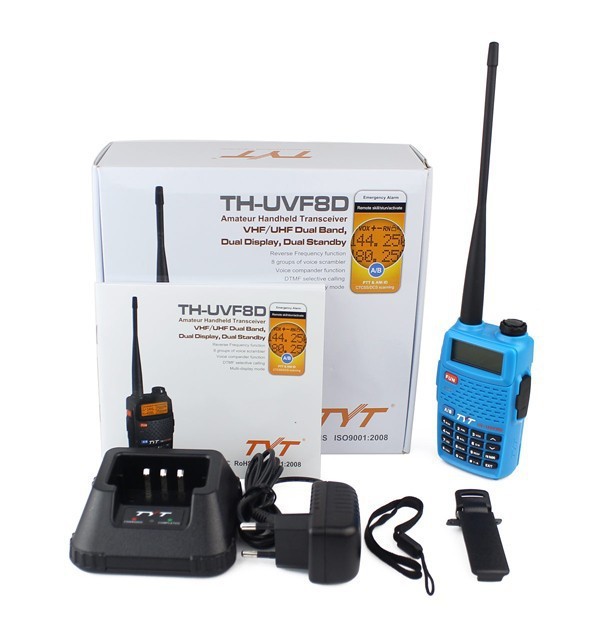

Package Includes:
· 1 x Portable radio
· 1 x Antenna
· 1 x Li-ion battery pack
· 1 x LI-ion charger
· 1 x Belt clip
· 1 x The sling
· 1 x User's manual
